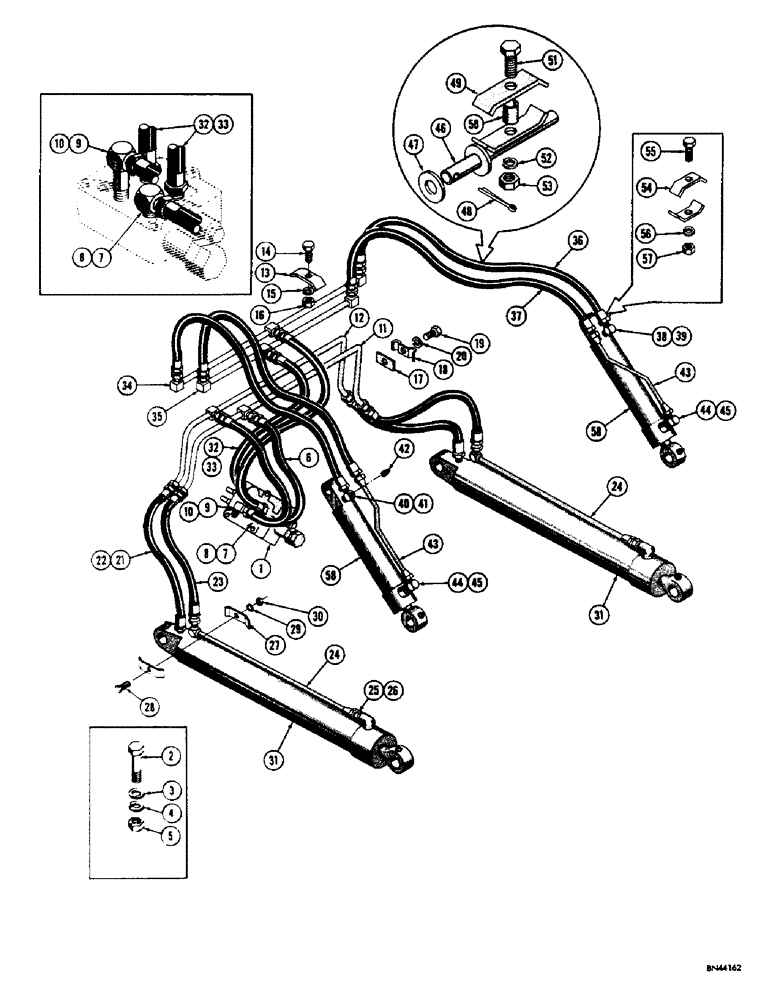

Запчасти Case 310F (170) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D29615

VALVE - control (See Figure 154 for breakdown)

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

3

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

6

D27478

HOSE ASSY.

HOSE - valve to lower manifold tubes (1/2" I.D. x 7/8" O.D. x 22")

2шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow

1шт.

9

D25698

X

ELBOW - male, 90 degrees (Extra long) (5/8" JIC x 5/8" JIC)

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25698 elbow

1шт.

11

D28098

TUBE - manifold, lower front

1шт.

12

D28095

TUBE - manifold, lower rear

1шт.

13

32978

PLATE ASSY.

PLATE - clamp

4шт.

14

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

17

33747

PLATE - tube clamp spacer

2шт.

18

17179

PLATE - clamp

2шт.

19

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

D27927

HOSE - rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D. x 20")

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D27927 hose

1шт.

23

D27635

HOSE - front manifold tube to front cylinder port (1/2" I.D. x 7/8" O.D. x 20")

2шт.

24

D27946

TUBE - hose to front lift cylinder port

2шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male (5/8" JIC x 5/8" JIC)

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 connector

1шт.

27

D28020

PLATE - clamp

2шт.

28

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

31

D27929

CYLINDER - Loader lift, hydraulic (See Figure 174 for breakdown)

2шт.

32

D27484

HOSE

- valve to upper manifold tubes (1/2" I.D. x 7/8" O.D. x 19-1/2"), dump cylinder hydraulics

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D27484 hose, dump cylinder hydraulics

1шт.

34

D25408

TUBE - manifold, upper rear, dump cylinder hydraulics

1шт.

35

D25411

TUBE - manifold, upper front, dump cylinder hydraulics

1шт.

36

D23062

HOSE

- upper rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D. x 38"), dump cylinder hydraulics

2шт.

37

D28111

HOSE ASSY.

HOSE - upper front manifold tube to front cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 39"), dump cylinder hydraulics

2шт.

38

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (Rear L.H. bucket cylinder port) (5/8" JIC x 5/8" JIC), dump cylinder hydraulics

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow, dump cylinder hydraulics

1шт.

40

D27782

X

ELBOW - special, rear R.H. bucket cylinder port (5/8" JIC male x 5/8" JIC male x 1/4" NPT female), dump hydraulics

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D27782 elbow, dump cylinder hydraulics

1шт.

42

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT), dump cylinder hydraulics

1шт.

43

D26295

TUBE

- hose to front bucket cylinder port, dump cylinder hydraulics

2шт.

44

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC), dump cylinder hydraulics

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow, dump cylinder hydraulics

1шт.

46

D25456

BRACKET - pivot, hose, dump cylinder hydraulics

2шт.

47

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick), dump cylinder hydraulics

2шт.

48

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), , Pivot bracket, dump cylinder hydraulics 3/32" x 1"

2шт.

49

31665

COLLAR CLAMP

PLATE - clamp, dump cylinder hydraulics

2шт.

50

D25938

SPACER - hose clamp, dump cylinder hydraulics

2шт.

51

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4", dump cylinder hydraulics

2шт.

52

92-5

LOCK WASHER,5/16"

dump cylinder hydraulics 5/16"

2шт.

53

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), dump cylinder hydraulics

2шт.

53

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), dump cylinder hydraulics

2шт.

54

31665

COLLAR CLAMP

PLATE - clamp, dump cylinder hydraulics

4шт.

55

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4", dump cylinder hydraulics

2шт.

56

92-5

LOCK WASHER,5/16"

dump cylinder hydraulics 5/16"

2шт.

57

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), dump cylinder hydraulics

2шт.

58

D27903

CYLINDER - bucket, hydraulic (See Figure 174(1) for breakdown), dump

2шт.
