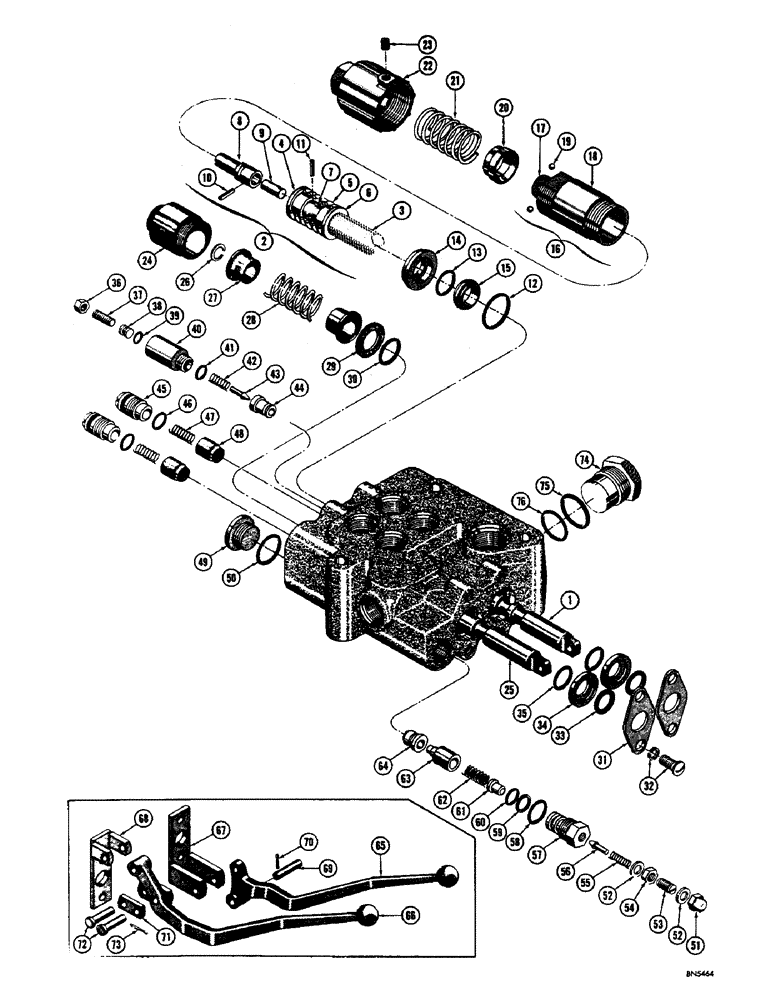

Запчасти Case 310F (162) - D32768 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D32768

VALVE - hydraulic control (Parker #VD12DF60) Used on loader serial no. 4081822 and after

1шт.

1

D32605

SPOOL

ASSEMBLY - four position, ball type detent (Color code - black or letter code - W) .737 to .73709

1шт.

D32604

SPOOL

ASSEMBLY - four position, ball type detent (Color code - blue or letter code - X) .7371 to .73719

1шт.

D32606

SPOOL

ASSEMBLY - four position, ball type detent (Color code - yellow or letter code - Y) .7372, Serial Range: -.73729

1шт.

D32607

SPOOL

ASSEMBLY - four position, ball type detent (Color code - green or letter code - Z) .7373, Serial Range: -.7374

1шт.

2

D33866

KIT - D32605 spool assembly

1шт.

D33865

KIT - D32604 spool assembly

1шт.

D33867

KIT - D32606 spool assembly

1шт.

D33868

KIT - D32607 spool assembly

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - four position

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - centering spring, front

1шт.

5

A16882

SPRING

- centering

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - centering spring, rear

1шт.

7

NSS

NOT SOLD SEPARAT

STUD - detent barrel

1шт.

8

D33859

SCREW

BARREL - detent

1шт.

9

D33858

LINK

- detent barrel

1шт.

10

138-2012

PIN,1/8" x 1/2", Coiled

Barrel link, front 1/8" x 1/2", Coiled

1шт.

11

138-2013

PIN,1/8" x 9/16", Coiled

1/8" x 5/8", Coiled, barrel link, rear

1шт.

12

A16877

SEAL

- "O" ring, outer

1шт.

13

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, inner

1шт.

14

D33856

RETAINER

- "O" ring, front

1шт.

15

D33857

RETAINER

- "O" ring, rear

1шт.

16

D32592

SLEEVE ASSY

CAP AND SLEEVE ASSEMBLY

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - detent

1шт.

18

NSS

NOT SOLD SEPARAT

CAP - rear

1шт.

19

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

20

A16852

RETAINER

- ball

1шт.

21

D31434

X

SPRING - detent

1шт.

22

A16884

CYLINDER END CAP

CAP - front

1шт.

23

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, socket head (1/4" - 20 NC x 1/2")

1шт.

24

A14529

CAP

- three position spool

1шт.

25

D26243

SPOOL ASSEMBLY - three position (Color code - black or letter code - W) .737 to, Serial Range: .737-.73709

1шт.

D26244

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X) .7371 to, Serial Range: .7371-.73719

1шт.

D26245

SPOOL ASSEMBLY - three position (Color code - yellow or letter code - Y) .7372 to, Serial Range: .7372-.73729

1шт.

D26246

SPOOL ASSEMBLY - three position (Color code - green or letter code - Z), Serial Range: .7373-.7374

1шт.

26

A13190

X

SNAP RING - spring retainer

1шт.

27

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

28

A14534

SPRING

- spool return

1шт.

29

A14535

RETAINER

SPACER - three position spool

1шт.

30

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

31

A14531

PLATE ASSY.

PLATE - retainer

2шт.

32

D20771

SCREW AND LOCKWASHER - retainer plate

4шт.

33

A14527

SCRAPER

RING - wiper, spool

2шт.

34

A14526

RETAINER

- wiper ring

2шт.

35

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

D26896

VALVE - secondary relief, adjustable

1шт.

36

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

37

173-395

SCREW - set, headless slotted (1/4" - 28 NF x 3/4")

1шт.

38

D26897

FOLLOWER - spring

1шт.

39

D26899

O-RING,0.145" ID

SEAL - "O" ring, overload relief spring follower

1шт.

40

D26900

CAP - secondary relief valve

1шт.

42

D26898

SPRING - overload relief

1шт.

43

D26278

PLUNGER - secondary relief valve

1шт.

44

D29853

SEAT

- plunger

1шт.

45

A14532

CAP

- check valve

2шт.

46

A14546

O-RING

SEAL - "O" ring, check valve cap

2шт.

47

A14520

VALVE SPRING

SPRING - check valve

2шт.

48

A16886

VALVE POPPET

POPPET - check valve

2шт.

49

A13192

X

PLUG - pipe, Allen head

1шт.

50

D26410

X

SEAL - "O" ring, pipe plug

1шт.

51

D20756

X

NUT - acorn, pilot operated relief valve

1шт.

52

D26270

WASHER, SEALING

WASHER - special, fibre

2шт.

53

82-514

SET SCREW

SCREW - adjusting, pilot operated relief valve (5/16" - 24 NF x 7/8")

1шт.

54

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam (5/16" - 24 NF)

1шт.

55

D26268

SPRING

- pilot

1шт.

56

D26267

PLUNGER

- relief valve

1шт.

57

D26262

CAP

- relief valve

1шт.

59

D26264

X

RING - backup

1шт.

60

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring

1шт.

61

D26266

SEAT

- relief valve

1шт.

62

D26261

VALVE SPRING

SPRING - relief valve

1шт.

63

A16888

VALVE POPPET

POPPET - relief valve

1шт.

64

D26259

SEAT

- poppet

1шт.

65

D25221

LEVER - valve control, R.H.

1шт.

66

D25220

LEVER - valve control, L.H.

1шт.

67

D25659

BRACKET - pivot, R.H. valve control lever

1шт.

68

D25657

BRACKET - pivot, L.H. valve control lever

1шт.

69

D25660

PIN - mounting, valve lever to pivot bracket

2шт.

70

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

71

D25483

LINK

- valve control, Serial Range: lever-valve

4шт.

72

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

4шт.

73

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

74

D25783

PLUG - special, high pressure carry-over (Backhoe models only)

1шт.

75

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, large (D25783 plug)

1шт.

76

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, small (D25783 plug)

1шт.

41

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.

58

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, relief valve cap

1шт.
