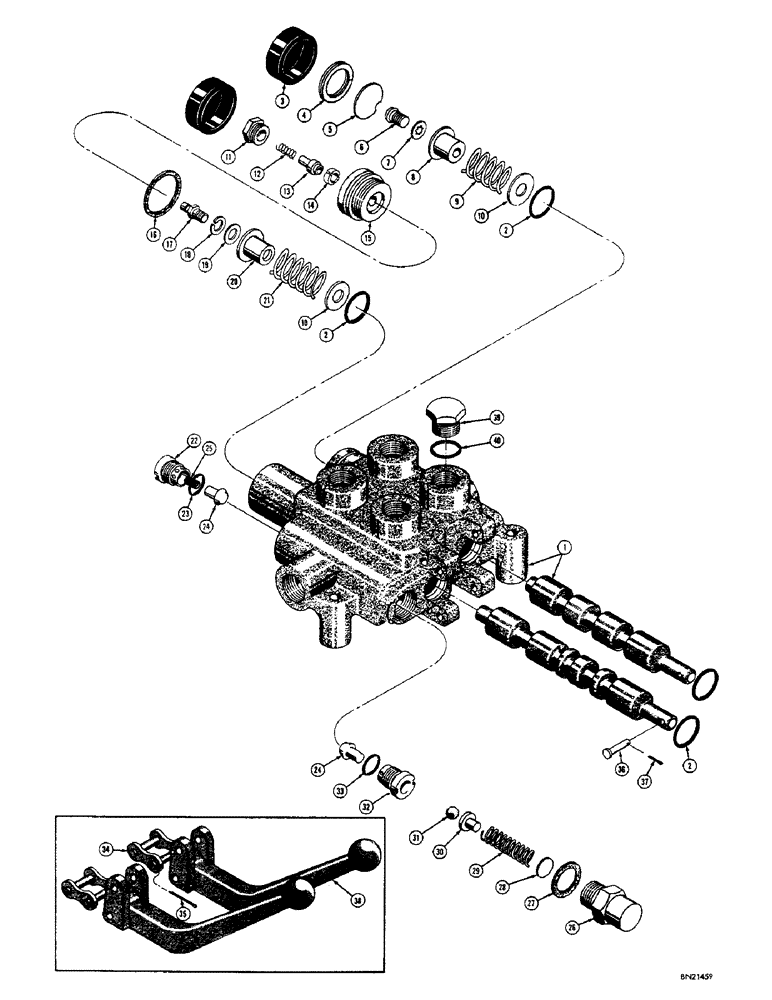

Запчасти Case 310F (152) - D25450 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D25450

VALVE - control, hydraulic (Gresen no. G-SPK-4-4 (NJ) (M135)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - matched set (Use D25450)

1шт.

2

36642

SEAL

- "O" ring, spool

4шт.

3

36645

CAP

- rubber

2шт.

4

36633

LID

SNAP RING - stop disc

1шт.

5

663023R1

CAP

- stop

1шт.

6

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - centering spring

1шт.

7

36628

LOCK WASHER

- lock

1шт.

8

CAS36630

COLLAR

- stop

1шт.

9

36632

SPRING

- centering

1шт.

10

36650

WASHER

2шт.

11

36656

CLIP

CAP - float detent spring

1шт.

12

36658

ROD

SPRING - float detent

1шт.

13

36654

PLUG

HOLDER - finger, float detent

1шт.

14

NLS

NO LONGER SERVICED

- float detent

3шт.

15

NLS

NO LONGER SERVICED

- float

1шт.

16

36666

WASHER

- float detent cap

1шт.

17

D25845

ADAPTER - float detent

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

36661

SHAFT

WASHER - plain

1шт.

20

36652

COLLAR

- float spring

1шт.

21

D32602

VALVE SPRING

- float centering (Use D32602)

1шт.

D32602

VALVE SPRING

SPRING - float centering

1шт.

22

D28574

PLUG

- check valve

1шт.

23

D23932

X

SEAL - "O" ring, check valve plug

1шт.

24

D28576

VALVE POPPET

POPPET - check valve and relief valve

2шт.

25

D28840

SPRING

- check valve

1шт.

26

D25846

BODY

- relief valve

1шт.

27

34115

GASKET

- relief valve body

1шт.

28

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

29

D25841

SPRING

- relief valve

1шт.

30

D26379

GUIDE - spring

1шт.

31

211-12

BALL,7/16 Dia

- steel, relief valve (7/16" dia.)

1шт.

32

D28575

SEAT

- relief valve

1шт.

33

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

34

36640

DRAG LINK

LINK - control, Serial Range: lever-valve

2шт.

35

132-13

PIN

- cotter, control lever link (1/16" x 1-1/2")

2шт.

36

36627

SEAT

PIN - control lever

2шт.

37

36625

X

PIN - cotter control lever pin (5/64" x 1/2")

2шт.

38

D20089

LEVER - valve control

2шт.

39

86512512

PLUG,7/8" - 14 ORB

(5/8" JIC) For ports not in use Hex Hd, 7/8"-14 ORB

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5157 plug

1шт.
