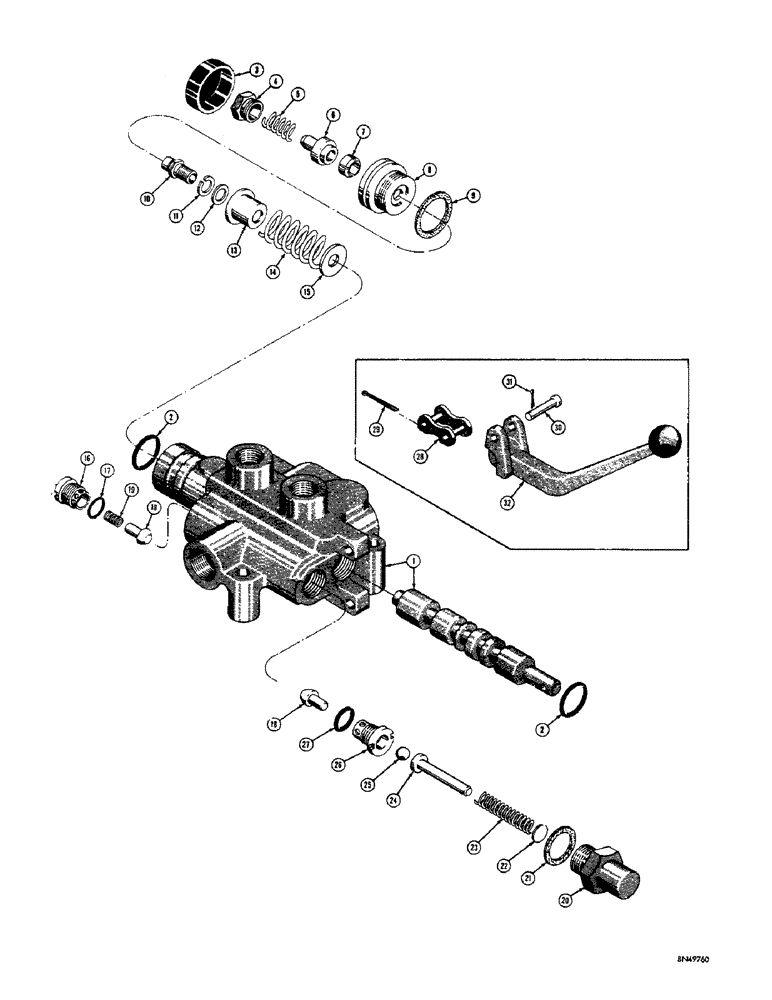

Запчасти Case 310F (150) - D27049 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D27049

VALVE - control, hydraulic (Gresen no. G-SPK-4 (NJ) (M153)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set (Use D27049)

1шт.

2

36642

SEAL

- "O" ring

2шт.

3

36645

CAP

- rubber

1шт.

4

36656

CLIP

CAP - float detent spring

1шт.

5

36658

ROD

SPRING - float detent

1шт.

6

NLS

NO LONGER SERVICED

HOLDER - finger, float detent

1шт.

7

NLS

NO LONGER SERVICED

- float detent

3шт.

8

36653

- float detent

1шт.

9

36666

WASHER

- float detent cap

1шт.

10

D25845

ADAPTER - float detent

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

36661

SHAFT

WASHER - plain

1шт.

13

36652

COLLAR

- float spring

1шт.

14

D32602

VALVE SPRING

- float centering (Use D32602)

1шт.

D32602

VALVE SPRING

SPRING - float centering

1шт.

15

36650

WASHER

- stop

1шт.

16

D28574

PLUG

- check valve

1шт.

17

D23932

X

SEAL - "O" ring, check valve plug

1шт.

18

D28576

VALVE POPPET

POPPET - check valve and relief valve

2шт.

19

D28840

SPRING

- check valve

1шт.

20

D25846

BODY

- relief valve

1шт.

21

34115

GASKET

- relief valve body

1шт.

22

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

23

D25841

SPRING

- relief valve

1шт.

24

D26379

GUIDE - spring

1шт.

25

211-12

BALL,7/16 Dia

- steel, relief valve (7/16" dia.)

1шт.

26

D28575

SEAT

- relief valve

1шт.

27

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

28

36640

DRAG LINK

LINK - valve control

1шт.

29

132-13

PIN

- cotter, control lever link (1/16" x 1-1/2")

1шт.

30

36627

SEAT

PIN - control, Serial Range: lever-valve

1шт.

31

36625

X

PIN - cotter, control lever pin (5/64" x 1/2")

1шт.

32

D20089

LEVER - valve control

1шт.
