Запчасти Case 310F (146) - D25569 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

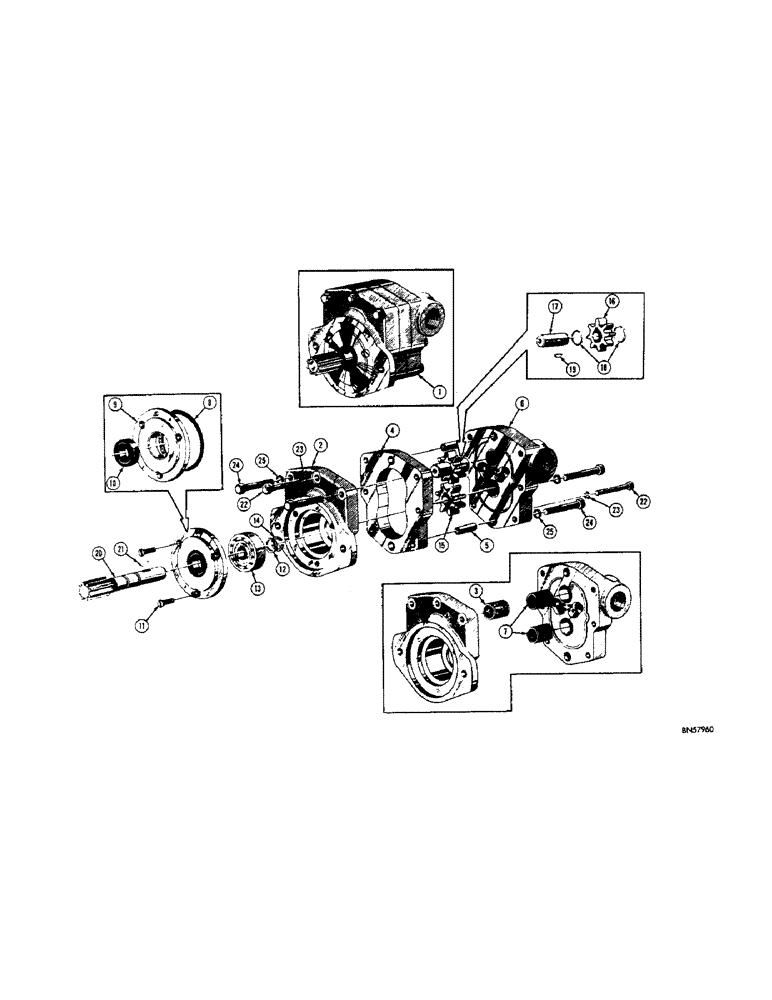

Схема запчастей Case 310F - (146) - D25569 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D25569

PUMP, HYDRAULIC

PUMP - hydraulic, 13-1/2 G.P.M. at 1850 pump R.P.M. (1850 engine R.P.M.) Webster no. 3HCS-26L

1шт.

2

D26062

SHIN

BODY - pump

1шт.

3

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

4

34452

PLATE - gear

1шт.

5

NLS

NO LONGER SERVICED

PIN - dowel

2шт.

6

D26060

COVER - pump

1шт.

7

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

8

D28965

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

9

D26067

PLATE - pilot

1шт.

10

D24047

SEAL

- oil

1шт.

11

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- flat head mach. (No. 10 - 24 NF x 5/8")

3шт.

12

14218

WASHER

WASHER - shim

1шт.

13

MT2041S

BEARING

- ball

1шт.

14

14217

RING

SNAP RING - bearing retaining

1шт.

5445

GEAR-SET

KIT - gear, drive and driven

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - drive (Use 5445)

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - driven (Use 5445)

1шт.

17

34451

SHAFT - idler

1шт.

18

D27331

RING

SNAP RING - gear retaining

2шт.

19

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY - Woodruff

2шт.

20

D26061

SHAFT

- pump drive

1шт.

21

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

22

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

23

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

24

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

6шт.

25

92-5

LOCK WASHER,5/16"

6шт.

D26726

VALVE

- diversion

1шт.

Выбрано товаров: 27
