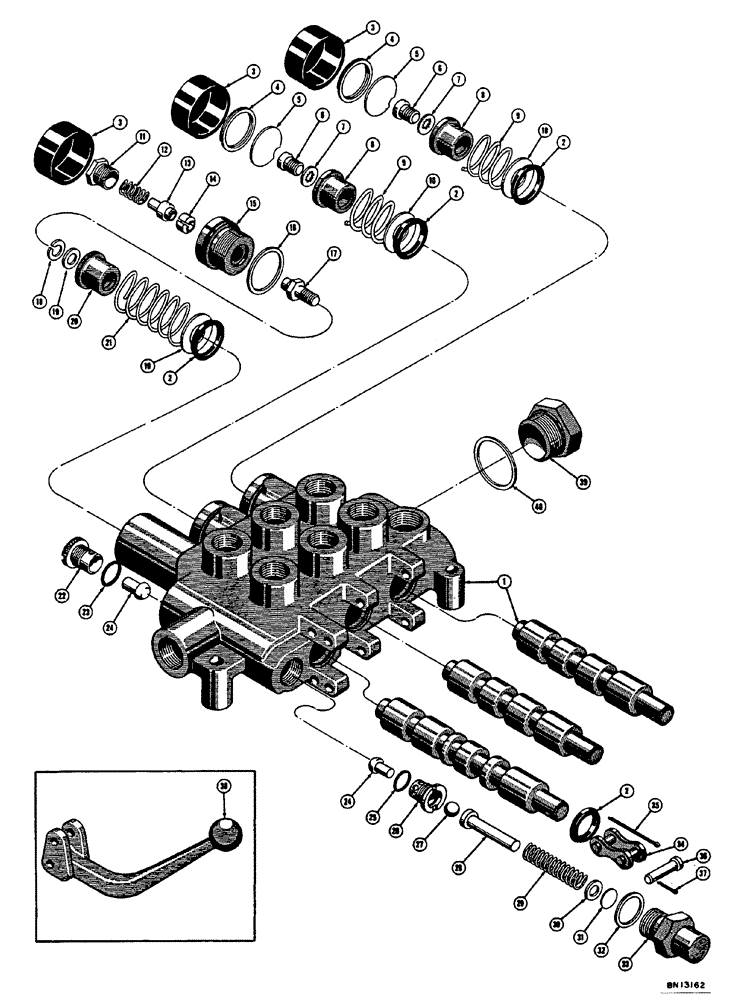

Запчасти Case 310E (077) - D29111 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D29111

VALVE - control (Gresen #SPKYT-4-4-4 (NJ) (M-186), Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING and SPOOLS - use D29111

1шт.

2

36642

SEAL

- spool

6шт.

3

36645

CAP

- rubber

3шт.

4

36633

LID

- snap, stop disc

2шт.

5

663023R1

CAP

- stop

2шт.

6

36626

HOSE CLIP

BOLT - centering spring

2шт.

7

36628

LOCK WASHER

- lock

2шт.

8

36630

DRAWBAR SUPPORT

- stop

2шт.

9

36632

SPRING

- centering

2шт.

10

36650

WASHER

- stop

3шт.

11

36656

CLIP

CAP - float detent spring

1шт.

12

36658

ROD

SPRING - float detent

1шт.

13

NLS

NO LONGER SERVICED

HOLDER - finger float detent

1шт.

14

NLS

NO LONGER SERVICED

- float detent

3шт.

15

36653

- float detent

1шт.

16

36666

WASHER

- float detent cap

1шт.

17

D25845

ADAPTE - float detent

1шт.

18

36662

GEAR

WASHER - lock

1шт.

19

36661

SHAFT

WASHER - plain

1шт.

20

36652

COLLAR

- float spring

1шт.

21

D32602

VALVE SPRING

- float centering

1шт.

22

D28574

PLUG

- check valve

1шт.

23

D23932

X

SEAL - check valve plug

1шт.

24

D28576

VALVE POPPET

POPPET - check and relief

2шт.

25

D23928

O-RING

SEAL - relief valve seat

1шт.

26

D28575

SEAT

- relief valve

1шт.

27

211-12

BALL,7/16 Dia

- steel, relief valve (7/16" dia.)

1шт.

28

D26379

GUIDE - spring

1шт.

29

D25841

SPRING

- relief valve

1шт.

30

36660

WASHER

- relief valve spring

1шт.

31

O25844

SHIM - relief valve spring

1шт.

32

34115

GASKET

- relief valve body

1шт.

33

D25846

BODY

- relief valve

1шт.

34

36640

DRAG LINK

LINK - control lever to valve spool

3шт.

35

132-13

PIN

- cotter link (1/16" x 1-1/2")

3шт.

36

36627

SEAT

PIN - control lever to valve housing

3шт.

37

36625

X

PIN - cotter (5/64" x 1/2")

3шт.

38

D20089

LEVER - valve control

3шт.

39

D25604

PLUG

- hex head valve side outlet port (1-3/8" - 12 NF)

1шт.

40

D25653

GASKET

- D25604 plug

1шт.
