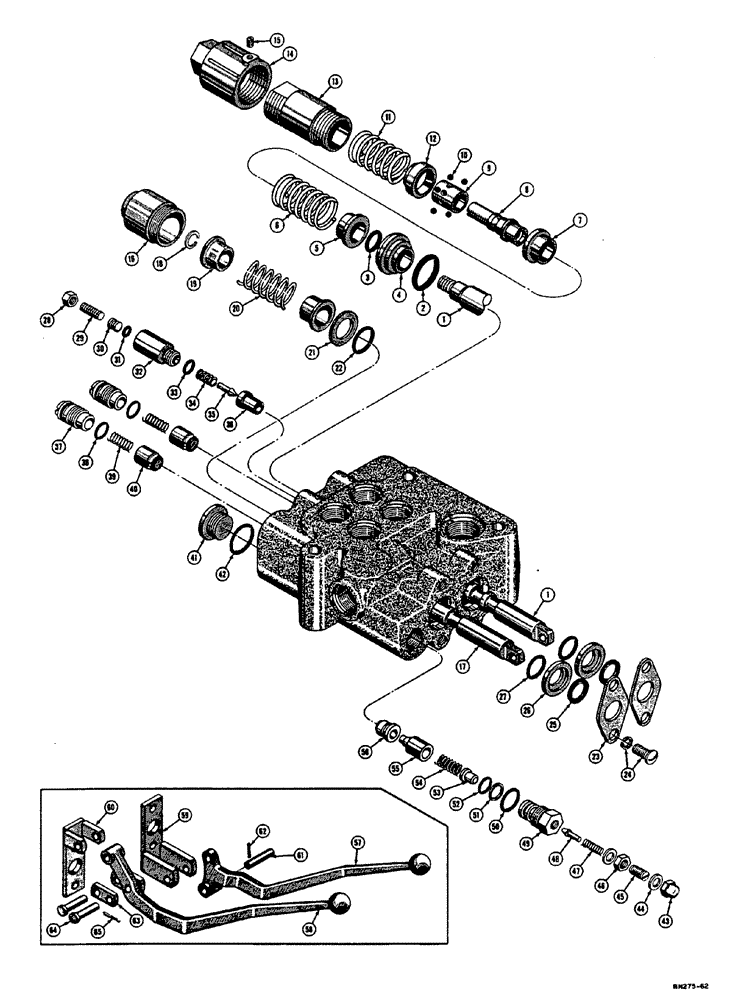

Запчасти Case 310E (076) - D29615 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D29615

VALVE - hydraulic control, (Parker #VDP1212**34) used on Loader serial number 4068995 and after, Includes: Ref. 1 - 56

1шт.

1

D29847

SPOOL ASSY - four position ball type detent (Color code - black or letter code - W) (.73700 to .73709"), Includes: Ref. 2 - 15

1шт.

D11723

SPOOL ASSY - four position ball type detent (Color code - blue or letter code - X) (.73710 to .73719"), Includes: Ref. 2 - 15

1шт.

D29848

SPOOL ASSY - four position ball type detent (Color code - yellow or letter code - Y) (.73720 to .73729"), Includes: Ref. 2 - 15

1шт.

D29849

SPOOL ASSY - four position ball type detent (Color code - green or letter code - Z) (.73730" to .73740"), Includes: Ref. 2 - 15

1шт.

2

A16877

SEAL

- outer

1шт.

3

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - inner

1шт.

4

A14537

RETAINER - "o" ring

1шт.

5

A16879

SPACER

- spool centering rear

1шт.

6

A16882

SPRING

- centering

1шт.

7

A16881

SEAT

SPACER - spool centering front

1шт.

8

D29840

BARREL - detent

1шт.

9

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

10

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

11

A16853

VALVE SPRING

SPRING - detent

1шт.

12

D29845

X

RETAINER - ball

1шт.

13

A16885

X

CAP - rear

1шт.

14

A16884

CYLINDER END CAP

CAP - front

1шт.

15

A16855

SCREW

- set headless slotted (Nylon) (1/4" - 20 NC x 7/16")

1шт.

16

A14529

CAP

- three position spool

1шт.

17

D26243

SPOOL ASSY - three position (Color code - black or letter code - W) (.73700" to .73709"), Includes: Ref. 18 - 22

1шт.

D26244

SPOOL

ASSY - three position (Color code - blue or letter code - X) (.73710" to (.73719"), Includes: Ref. 18 - 22

1шт.

26245

LATCH

SPOOL ASSY - three position (Color code - yellow or letter code - Y) (.73720" to .73729"), Includes: Ref. 18 - 22

1шт.

D26246

SPOOL ASSY - three position (Color code - green or letter code - Z) (.73730" to .73740"), Includes: Ref. 18 - 22

1шт.

18

A13190

X

SNAP RING - spring retainer

1шт.

19

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

20

A14534

SPRING

- spool return

1шт.

21

A14535

RETAINER

SPACER - three position spool

1шт.

22

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

23

A14531

PLATE ASSY.

PLATE - retainer

2шт.

24

D20771

SCREW and LOCKWASHER - retainer plate

4шт.

25

A14527

SCRAPER

RING - wiper spool

2шт.

26

A14526

RETAINER

- wiper ring

2шт.

27

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL

2шт.

D26896

VALVE - secondary relief adjustable, Includes: Ref. 28 - 36

1шт.

28

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

29

173-395

SCREW - set headless slotted (1/4" - 28 NF x 3/4")

1шт.

30

D26897

FOLLOWER - spring

1шт.

31

D26899

O-RING,0.145" ID

SEAL - overload relief spring follower

1шт.

32

D26900

CAP - secondary relief valve

1шт.

34

O26898

SPRING - overload relief

1шт.

35

D26278

PLUNGER - secondary relief valve

1шт.

36

D29853

SEAT

- plunger

1шт.

37

A14532

CAP

- check valve

2шт.

38

A14546

O-RING

SEAL - check valve cap

2шт.

39

A14520

VALVE SPRING

SPRING - check

2шт.

40

A16886

VALVE POPPET

POPPET - check

2шт.

41

A13192

X

PLUG - pipe Allen head, Includes: Ref. 42

1шт.

42

D26410

X

SEAL - pipe plug

1шт.

43

D20756

X

NUT - acorn pilot operated relief valve

1шт.

44

D26270

WASHER, SEALING

WASHEWR - special fibre

2шт.

45

82-514

SET SCREW

SCREW - adjusting pilot operated relief valve (5/16" - 24 NF x 7/8" )

1шт.

46

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam (5/16" - 24 NF)

1шт.

47

D26268

SPRING

- pilot

1шт.

48

D26267

PLUNGER

- relief valve

1шт.

49

D26262

CAP

- relief valve

1шт.

51

D26264

X

RING - backup

1шт.

52

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL -

1шт.

53

D26266

SEAT

- relief valve

1шт.

54

D26261

VALVE SPRING

SPRING - relief

1шт.

55

D26260

VALVE POPPET

POPPET - relief

1шт.

56

D26259

SEAT

- poppet

1шт.

57

D25221

LEVER - valve control R.H.

1шт.

58

D25220

LEVER - valve control L.H.

1шт.

59

D25659

BRACKET - pivot R.H. valve control lever

1шт.

60

D25657

BRACKET - pivot L.H. valve control lever

1шт.

61

D25660

PIN - mounting valve lever to pivot bracket

2шт.

62

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter () 3/32" x 5/8"

4шт.

63

D25483

LINK

- valve control, Serial Range: lever-valve

4шт.

64

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

4шт.

65

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter () 3/32" x 5/8"

4шт.

33

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - relief valve cap

1шт.
