Артикул
Название
Примечание
Количество
D25450

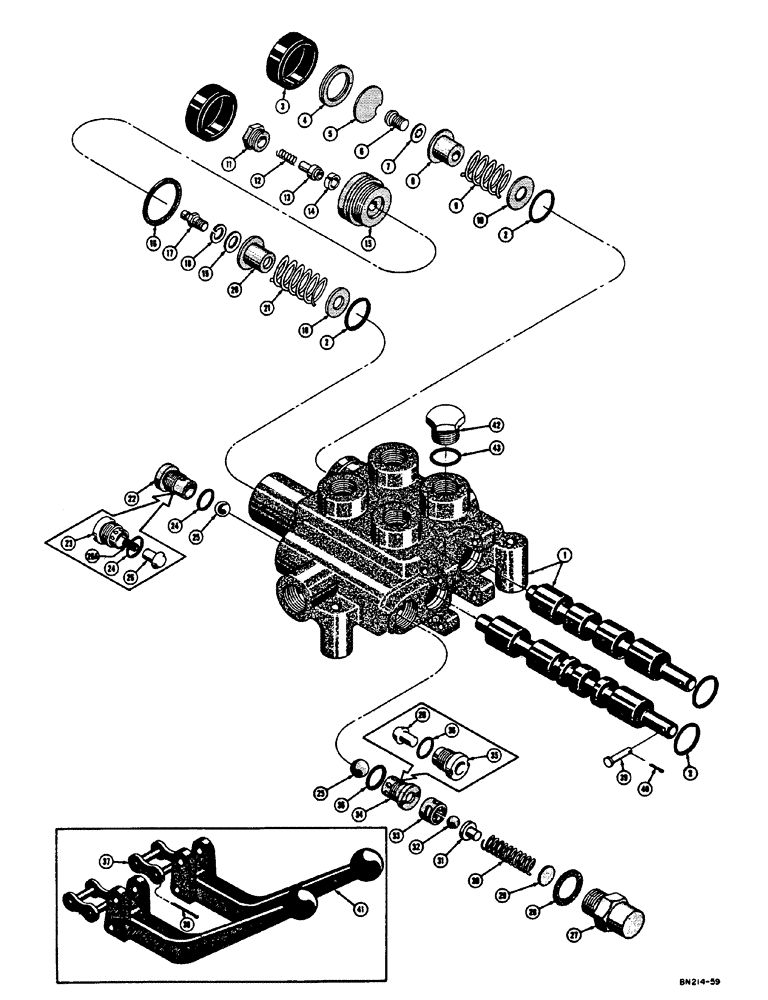

VALVE - control, hydraulic (Gresen #G-SPK4-4- (NJ) (M135), Includes: Ref. 1 - 40
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING and SPOOLS - matched set (Use D25450)
1шт.
2
36642
SEAL
- spool
4шт.
3
36645
CAP
- rubber
2шт.
4
36633
LID
- snap, stop disc
1шт.
5
663023R1
CAP
- stop
1шт.
6
75-48
SCREW,Rd, 1/4" - 20 x 1/2"
BOLT - centering spring
1шт.
7
36628
LOCK WASHER
- lock
1шт.
8
CAS36630
COLLAR
- stop
1шт.
9
36632
SPRING
- centering
1шт.
10
36650
WASHER
- stop
2шт.
11
36656
CLIP
CAP - float detent spring
1шт.
12
36658
ROD
SPRING - float detent
1шт.
13
NLS
NO LONGER SERVICED
HOLDER - finger float detent
1шт.
14
NLS
NO LONGER SERVICED
- float detent
3шт.
15
NLS
NO LONGER SERVICED
- float detent
1шт.
16
36666
WASHER
- float detent cap
1шт.
17
D25845
ADAPTER - float detent
1шт.
18
36662
GEAR
WASHER - lock
1шт.
19
36661
SHAFT
WASHER - plain
1шт.
20
36652
COLLAR
- float spring
1шт.
21
D32602
VALVE SPRING
- float centering
1шт.
22
D23929
PLUG
- check valve (Used with check ball) see D28574
1шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
23
D28574
PLUG
- check valve (Used with poppet) see D23929
1шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
24
D23932
X
SEAL, check valve plug
1шт.
25
D23930
BALL
- check check valve and relief valve (5/8" dia. Zytel Plastic) see D28576
2шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
26
D28576
VALVE POPPET
POPPET - check valve and relief valve (See D23930)
2шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
26a
D28840
SPRING
- check valve (Used with poppet)
1шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
27
D25846
BODY
- relief valve
1шт.
28
34115
GASKET
- relief valve body
1шт.
29
D25844
SHIM,.0097" Thk
Relief valve spring .0097" Thk
1шт.
30
D25841
SPRING
- relief valve
1шт.
31
D26379
GUIDE - spring
1шт.
32
211-12
BALL,7/16 Dia
- steel, relief valve (7/16" dia.)
1шт.
33
D24392
COLLAR - seat jam, relief valve (Used with check ball) see D28575
1шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
34
D26380
SEAT
- relief valve (Used with check ball) see D28575
1шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
35
D28575
SEAT
- relief valve (Used with poppet) see D24392 and D26380
1шт.
When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable
1шт.
36
D23928
O-RING
SEAL - relief valve seat
1шт.
37
36640
DRAG LINK
LINK - control, Serial Range: lever-valve
2шт.
38
132-13
PIN
- cotter control lever link (1/16" x 1-1/2")
2шт.
39
36627
SEAT
PIN - control lever
2шт.
40
36625
X
PIN - cotter control lever pin (5/64" x 1/2")
2шт.
41
D20089
LEVER - valve control
2шт.
42
86512512
PLUG,7/8" - 14 ORB
(5/8" JIC) for ports not in use, Incl. Ref. 43 Hex Hd, 7/8"-14 ORB
1шт.
43
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - 218-5157 plug
1шт.
Выбрано товаров: 53
