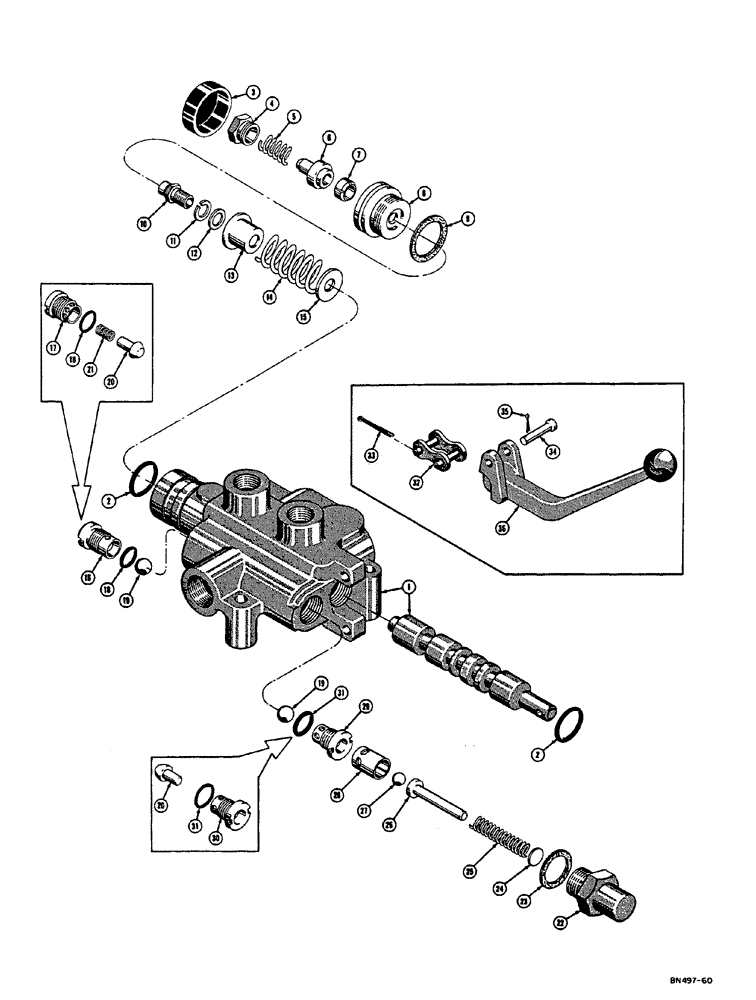

Запчасти Case 310E (073) - D27049 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D27049

VALVE - control, hydraulic (Gresen #G-SPK-4 (NJ) (M153), Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING and SPOOL - matched set (Use D27049)

1шт.

2

36642

SEAL

2шт.

3

36645

CAP

- rubber

1шт.

4

36656

CLIP

CAP - float detent spring

1шт.

5

36658

ROD

SPRING - float detent

1шт.

6

NLS

NO LONGER SERVICED

HOLDER - finger float detent

1шт.

7

36655

- float detent

3шт.

8

36653

- float detent

1шт.

9

36666

WASHER

- float detent cap

1шт.

10

D25845

ADAPTOR - float detent

1шт.

11

36662

GEAR

WASHER - lock

1шт.

12

36661

SHAFT

WASHER - plain

1шт.

13

36652

COLLAR

- float spring

1шт.

14

D32602

VALVE SPRING

- float centering

1шт.

15

36650

WASHER

- stop

1шт.

16

D23929

PLUG

- check valve (Used with check ball) see D28574

1шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

17

D28574

PLUG

- check valve (Used with poppet) see D23929

1шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

18

D23932

X

SEAL, check valve plug

1шт.

19

D23930

BALL

- check check valve and relief valve (5/8" dia. Zytel Plastic) see D28576

2шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

20

D28576

VALVE POPPET

POPPET - check, and relief valve (See D23930)

2шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

21

D28840

SPRING

- check valve (Used with poppet)

1шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

22

D25846

BODY

- relief valve

1шт.

23

34115

GASKET

- relief valve body

1шт.

24

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

25

D25841

SPRING

- relief valve

1шт.

26

D26379

GUIDE - spring

1шт.

27

211-12

BALL,7/16 Dia

- steel relief valve (7/16" dia.)

1шт.

28

D24392

COLLAR - seat jam, relief valve (Used with check ball) see D28575

1шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

29

D26380

SEAT

- relief valve (Used with check ball) see D28575

1шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

30

D28575

SEAT

- relief valve (Used with poppet) see D24392 and D26380

1шт.

When replacing check valve or relief valve seat, check to see if check valve and relief valve has check balls or poppets, before ordering replacement parts. Check valve and relief valve poppets with associated parts are interchangable w/check balls with associated parts, however seperate component parts are not interchangable

1шт.

31

D23928

O-RING

SEAL - relief valve seat

1шт.

32

36640

DRAG LINK

LINK - valve control

1шт.

33

132-13

PIN

- cotter, control lever link (1/16" x 1-1/2")

1шт.

34

36627

SEAT

PIN - control, Serial Range: lever-valve

1шт.

35

36625

X

PIN - cotter, control lever pin (5/64" x 1/2")

1шт.

36

D20089

LEVER - valve control

1шт.
