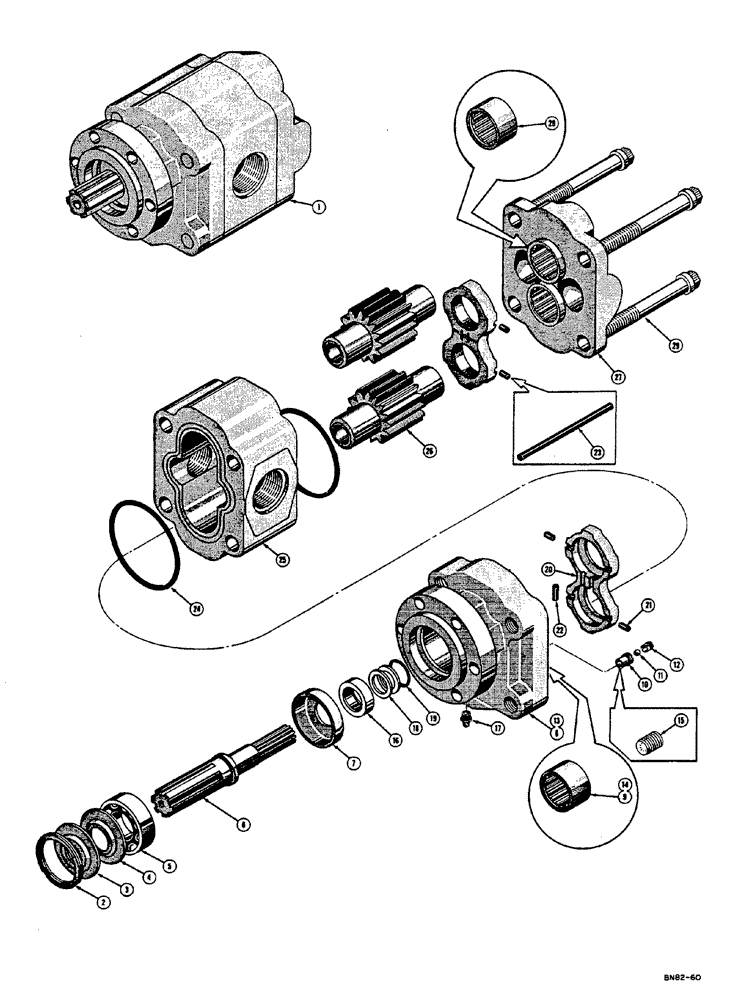

Запчасти Case 310E (070) - D25347 HYDRAULIC PUMP (19 G.P.M.) (07) - HYDRAULIC SYSTEM

1

D25347

PUMP, HYDRAULIC

PUMP - 19 GPM (Commercial Shearing #P15H202BEVC 17-9), Includes: Ref. 2 - 29

1шт.

2

71466

SNAP RING,#206, 2.190", Int, Spiral

RING snap - bearing shield

1шт.

3

71429

BEARING COVER

SHIELD - bearing

1шт.

4

D23270

X

SEAL - bearing

1шт.

5

R13676

BALL BEARING

BEARING - ball driveshaft

1шт.

6

D26081

SHAFT - pump drive

1шт.

7

D26074

SPACER

- bearing

1шт.

8

D26420

COVER - shaft end (When stock is exhausted order D30030), Includes: Ref. 9 - 12

1шт.

9

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

2шт.

10

71430

TOOL

SEAT - check valve

2шт.

11

VT4852

X

BALL - check (5/32" dia.) use 211-4

2шт.

211-4

BALL

- check (5/32" dia.)

2шт.

12

71432

TOOL

RETAINER - check ball

2шт.

13

30030

COVER - shaft end (See D26420), Includes: Ref. 14 and 15

1шт.

14

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

2шт.

15

84-76

SCREW,Hex Socket, 7/16" - 20 x 3/8"

- set socket head (7/16" - 20 NF x 3/8")

1шт.

16

D26070

OIL RESERVOIR

SEAL

1шт.

17

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2° (1/8 NPT)

1шт.

18

D26071

RING

- backup

2шт.

19

D26072

X

SEAL - driveshaft

1шт.

20

D26077

LARGE PLATE

PLATE - thrust

2шт.

21

D26078

X

SEAL - pocket thrust plate (7/32" long x 103" dia.) use D30031

8шт.

22

D26079

X

SEAL - pocket thrust plate (3/8" long x 103" dia.) use D30031

4шт.

23

D30031

SEAL

- pocket (5" long x 103" dia.)

1шт.

24

D26080

O-RING

SEAL

2шт.

25

D26076

HOUSING - gear

1шт.

26

D26038

KIT - gear drive and driven

1шт.

27

D26419

COVER - port end, Includes: Ref. 28

1шт.

28

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

2шт.

29

166-97

12 PT SCREW,Flg, 1/2" - 13 x 4 1/2", Gr 8

SCREW - ferry cap (1/2" - 13 NC x 4-1/2")

4шт.
