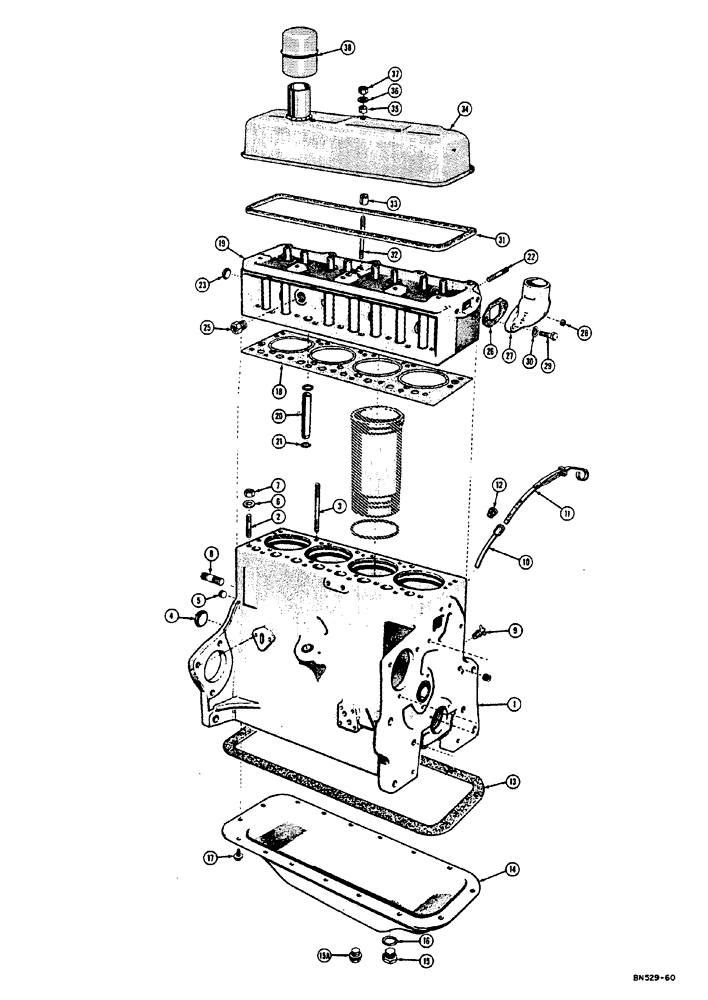

Запчасти Case 310E (002) - ENGINE BLOCK AND RELATED PARTS - GAS (01) - ENGINE

G10506

X

SHORT BLOCK ASSY - includes stripped block, cylinder liners, packings,pistons,rings,crankshaft,gear cover assy.,camshaft,front end plate,timing gears,filler blocks,studs,nuts,screws,washers,plugs,lockwires,head,oil pump,conn. rods & sleeves see G11911

1шт.

G11911

X

STRIPPED BLOCK - includes block Hubbard plugs bearing caps screws pins washers studs oil gauge rod support plug spacers main bearings lockwires copper washers camshaft bearings and gaskets (See G10506)

1шт.

G2035

CAP

- crankshaft front bearing (Not shown see figure 14)

1шт.

G2036

CAP

- crankshaft center bearing (Not shown see figure 14)

1шт.

G2037

CAP

- crankshaft rear bearing (Not shown see figure 14)

1шт.

G49037

BOLT

- place center and rear bearing caps (Not shown see figure 14)

4шт.

G49059

BOLT

- place oil pump and front bearing cap (Not shown, see figure 14)

2шт.

VTA2621

X

BUSHING - camshaft (Set of 3) not shown - see figure 18

1шт.

2

VT4503

X

STUD - cylinder head (1/2" x 2")

9шт.

3

VT4515

X

STUD - cylinder head (1/2" x 5-7/8")

5шт.

4

VT3398

X

PLUG - crankshaft rear bearing (2-1/8" Hubbard)

1шт.

5

VT3395

X

PLUG - pipe, oil gallery (1/4" NPT socket head)

3шт.

6

VT4529

WASHER

- cylinder head studs

14шт.

7

VT3361

X

NUT - cylinder head studs

14шт.

8

VT3531

X

STUD - block to clutch housing (5/8" x 31")

2шт.

9

VT2784

X

COCK - drain, engine block (When stock is exhausted order 217-103)

1шт.

217-103

COCK, DRAIN

COCK drain - engine block (See VT2784)

1шт.

10

G45139

BRACKET

SUPPORT - dipstick

1шт.

11

G37037

DIPSTICK

- oil level, Includes: Ref. 12

1шт.

12

G46892

OIL SEAL

- rubber dipstick

1шт.

13

G10020

X

GASKET - oil pan

1шт.

14

G11868

PAN - oil, Includes: Ref. 15 - 17

1шт.

15

VT4521

X

PLUG - drain oil pan (7/8" NF thread) see G45786

1шт.

15a

G45786

PLUG

- drain oil pan (3/8" NPT) includes gasket (See VT4521)

1шт.

16

VT4520

X

GASKET - drain plug with 7/8" NF thread

1шт.

17

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - attaching oil pan (5/16" - 18NC x 3/4")

16шт.

18

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

19

G11909

HEAD - Includes: Ref. 20 - 23

1шт.

VTA911

X

GUIDES - valve stem (Set of 4) not shown - see figure 18

2шт.

20

G11360

TUBE,0.687" OD x 3.687" L

- push rod (3-11/16" long)

8шт.

21

G46896

X

SEAL - "o" ring push rod tube

16шт.

22

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

7шт.

23

VT5058

PLUG - safety freeze (1-1/8" Hubbard)

1шт.

25

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

26

VT3228

X

GASKET - water outlet elbow

1шт.

27

G11087

ELBOW - water outlet, Includes: Ref. 28

1шт.

28

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe 3/8 NPT square head

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

2шт.

31

VT3246

GASKET - valve cover

1шт.

32

G49504

STUD

- valve cover (3/8" x 4-5/8" with 1" thread)

1шт.

G49505

STUD

- valve cover (3/8" x 4-5/8" with 2" thread)

2шт.

33

VT3142

X

SPACER - valve cover (3/8" I.D. x 1-19/32" long)

2шт.

34

G13997

COVER - valve

1шт.

35

VT4564

X

SPACER - valve cover (3/8" I.D. x 17/32" long)

2шт.

36

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64"" thick)

3шт.

37

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

3шт.

38

VT3545

X

CAP - oil filler and breather

1шт.
