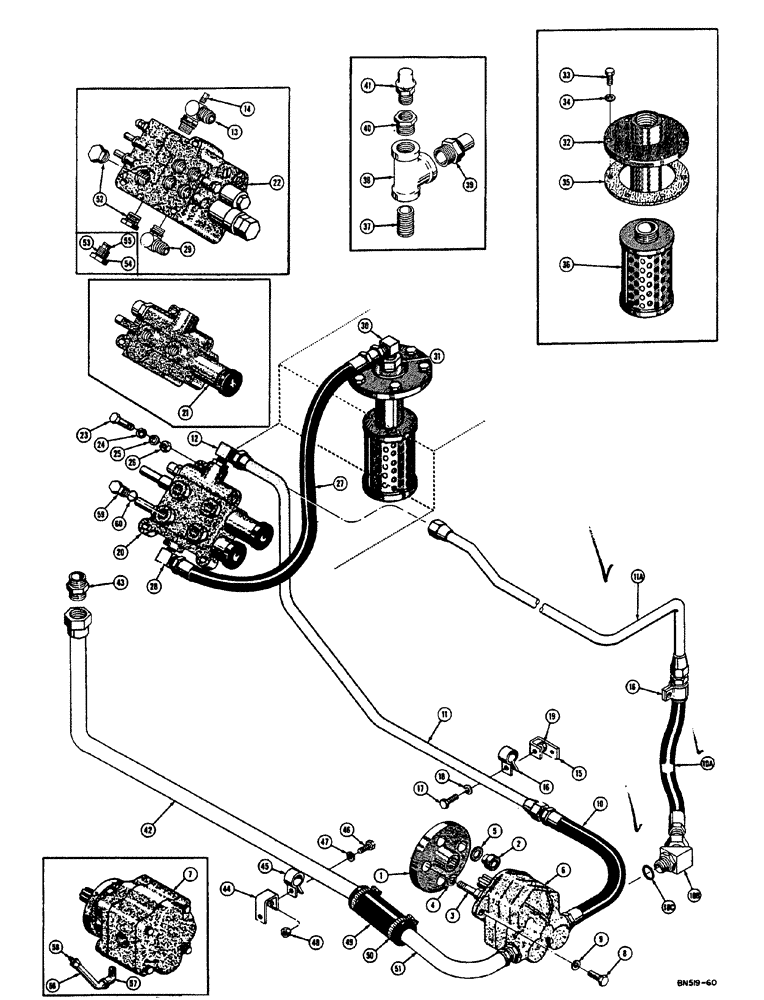

Запчасти Case 310E (069) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

G36217

HUB ASSY.

HUB - flexible pump drive coupling, Includes: Ref. 2

1шт.

2

G36905

BLOCK

- and BUSHING

4шт.

3

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

4

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

5

VT3340

X

WASHER - flat (7/16")

4шт.

6

D25569

PUMP, HYDRAULIC

PUMP - hydraulic 15 GPM (Used on all models except Load< models) see figure 71 for breakdown (See D25347)

1шт.

7

D25347

PUMP, HYDRAULIC

PUMP - hydraulic 19 GPM (Used on all Loader models) see figure 70 for breakdown (See D25569)

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

10

D27675

HOSE - pump to valve inlet front section (3/4" I.D. x 1-5/32" O.D. x 16-3/4") use D25130 (Gas modela only - see D28010 and D29604)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - D27675 hose (Not shown)

1шт.

D25130

HOSE - pump to valve inlet front section (3/4" I.D. x 1-5/32" O.D. x 14") Gas models only - see D28010 and D29604

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - D25130 hose (Not shown)

1шт.

10a

D28010

HOSE - pump to valve inlet front section (3/4" I.D. x 1-5/32" O.D. x 13") used on Diesel models only up to tractor serial number 3018001 (Use 1 - D29608 elbow)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - D28010 hose (Not shown)

1шт.

D29604

HOSE - pump to valve inlet front section (3/4" I.D. x 1-5/32" O.D. x 18-1/2") used on Diesel models only, tractor serial number 3018001 and after - see D25130

1шт.

10b

D29608

ELBOW - female swivel 45° (1" JIC female x 7/8" JIC male) used on Diesel models only tractor serial number 3018001 and after, Includes: Ref. 10C

1шт.

10c

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - D29608 elbow (Not shown)

1шт.

11

D26688

TUBE - pump to valve inlet rear section (Gas models only see D28008 and D29606)

1шт.

11a

D28008

TUBE - pump to valve inlet rear section (Used on Diesel models only up to tractor serial #3018001) use 1 -D29608 elbow 1 - D29604 hose 1 - D29606 tube and 1 - D25156 clamp (See D26688)

1шт.

D29606

TUBE - pump to valve inlet rear section (Used on Diesel models only tractor serial #3018001 and after) see D26688

1шт.

12

D25098

ELBOW - male 90° (7/8" JIC x 1 JIC) used on all models except Loader models (See D26683)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - D25098 elbow (Not shown)

1шт.

13

26683

TEE - service (3/4" JIC male x 1" JIC male x 1/4" NPT female) used on all Loader models (See D25098)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - D26683 service tee (Not shown)

1шт.

14

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe square head (1/4" NPT) D26683 service tee

1шт.

15

D27673

BRACKET - tube clamp (Mounts to cylinder mounting bracket bolts on Dozer models) Gas models only

1шт.

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Not shown) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

1шт.

16

D25156

CLAMP

- tube (Used on all Gas models used on Diesel models tractor serial #3018001 and after) see D28844

1шт.

O28844

CLAMP - tube (Used on Diesel models only up to tractor serial #3018001) see D25156

1шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Gas models only) use timing gear cover bolt on Diesel models Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

18

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

1шт.

20

D25450

VALVE - control Dozer models only (See figure 74 for breakdown)

1шт.

21

D27049

VALVE - control single spool (Mechanical Dozer models only) see figure 73 for breakdown

1шт.

22

D26491

VALVE - control Loader models only (See figure 75 for breakdown) used up to Loader serial #4068995 (When stock Is exhausted order D29615)

1шт.

D29615

VALVE - control Loader models only (See figure 76 for breakdown) used on Loader serial #4068995 and after (See D26491)

1шт.

D29111

VALVE - control Auxiliary Equipment (See figure 77 for breakdown) not shown

1шт.

23

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(D25450 and D27049 control valves) see 13-664 Hex, 3/8"-16 x 2 1/4", G5

3шт.

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(D26491, D29111 and D29615 control valves) see 13-636 Hex, 3/8"-16 x 4", G5

3шт.

24

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

3шт.

25

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/8" O.D. x 5/64" thick) 3/8"

3шт.

26

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

3шт.

27

D27159

HOSE - control valve outlet to filter (3/4" I.D. x 1-1/4 O.D. x 20-3/8" ) see D29141

1шт.

D29141

HOSE - control valve outlet to filter (Used with 3 - spool valve only) (3/4" I.D. x 1-1/4" O.D. x 31") (See D27159)

1шт.

28

D25353

ELBOW - female 90° (3/4" NPT female x 7/8" JIC male) used on all models except Loader models (See D25354)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - D25353 elbow (Not shown)

1шт.

29

D25354

ELBOW

- female 90° (3/4" NPT female x 3/4" JIC male) used on all Loader models (See D25353)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - D25354 elbow (Not shown)

1шт.

30

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male 90° (3/4" NPT x 3/4" JIC)

1шт.

31

221-69

BUSHING

- hex pipe, filter inlet (1-1/4" NPT x 3/4" NPT)

1шт.

32

D26685

CAP - inlet oil filter

1шт.

33

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1

6шт.

34

D29513

WASHER - sealing nylon

6шт.

35

36321

GASKET

- oil filter inlet cap

1шт.

36

25664

FILTER - hydraulic oil

1шт.

37

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe (1/4" NPT x 7/8")

1шт.

38

221-431

TEE

- pipe (1/4" NPT x 1/4" NPT x 3/8" NPT)

1шт.

39

R15538

VALVE

- relief vacuum (2 to 5 P S.I )

1шт.

40

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex pipe (1/4" NPT x 1/8" NPT)

1шт.

41

R15536

VALVE

- relief pressure (10 to 20 P.S I )

1шт.

42

D26690

CLAMP - reservoir to pump rear section

1шт.

43

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight male (1-1/4" NPT x 1-1/4" JIC)

1шт.

44

37753

BUSHING

BRACKET - tube clamp

1шт.

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Not shown) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

1шт.

45

D25156

CLAMP

- tube

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

48

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

1шт.

49

D27674

HOSE - low pressure reservoir to pump (1-1/4" I.D. x 2" O.D. x 6") use D23645

1шт.

D23645

HOSE

- low pressure reservoir to pump (1-1/4" I.D. x 2" O.D. x 5")

1шт.

50

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

51

D25716

STEM

- hose reservoir to pump (Front section) used on all models except Loader models (See D25144)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - D25716 hose stem (Not shown)

1шт.

D25144

STEM - hose reservoir to pump (Front section) used on all Loader models (See D25716)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - D25144 hose stem (Not shown)

1шт.

52

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

(3/4" JIC), 2 used on standard Loader models only Hex Hd, 1 1/16"-12 ORB

2шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - 218-5158 plug (Not shown)

1шт.

53

D25783

PLUG - special high pressure carry-over (Replaces 218-5158 plug in R.H. rear side valve port on Backhoe models only) see 218-5158

1шт.

54

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - large (D25783 plug)

1шт.

55

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - small (D25783 plug)

1шт.

56

D28087

TUBE - pump lubrication (Loader models only)

1шт.

57

219-82

ELBOW,90 Degree, 1/8"-27

- 90° (1/8" NPT female x 1/8" NPT male)

1шт.

58

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - straight grease female (1/8" NPT)

1шт.

59

86512512

PLUG,7/8" - 14 ORB

(5/8" JIC) for port in D25450 valve not in use, Incl. Ref. 60 Hex Hd, 7/8"-14 ORB

2шт.

60

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - 218-5157 plug

1шт.
