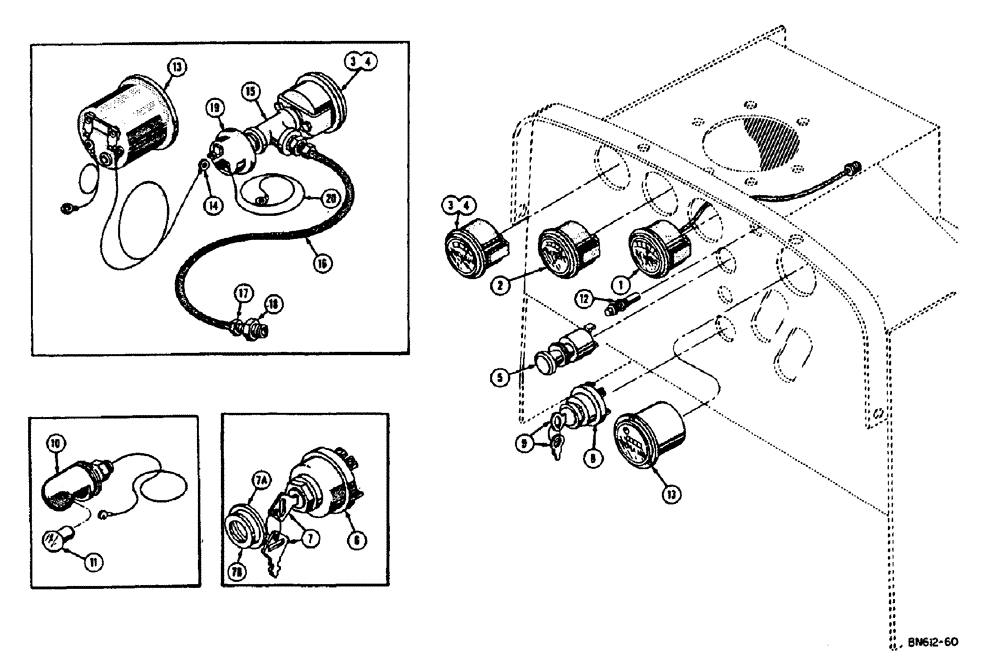

Запчасти Case 310E (035) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

11284

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

D26015

FITTING

ADAPTER - temperature gauge heat bulb (Not shown)

1шт.

2

10860

X

AMMETER

1шт.

3

D22853

GAUGE

- oil pressure (Diesel models only)

1шт.

4

D26894

X

GAUGE - oil pressure (Gas models only)

1шт.

5

10855

X

SWITCH - light (When stock is exhausted order R22699)

1шт.

R22699

X

SWITCH - light (See 10855)

1шт.

6

A21487

X

SWITCH - starter (Diesel models only) for service order D29292, Includes: Ref. 7

1шт.

7

A20621

KEY

- switch

2шт.

6

D29292

SWITCH - starter (Diesel models only) see A21487, Includes: Ref. 7

1шт.

7

A20346

KEY

- switch

2шт.

7a

O164B

X

WASHER - special 29/32" I.D. x 1-3/8" O.D. (A21487 switch only)

1шт.

7b

195-37

WASHER,9/16"

- plain 19/32" I.D. x 1-3/16" O.D. x 1/8" thick (A21487 switch only)

1шт.

8

A11373

SWITCH

- ignition & starter (Gas models only), Includes: Ref. 9

1шт.

9

A20346

KEY

- switch

1шт.

10

D26513

LIGHT - dash

1шт.

11

D26704

X

BULB - dash light (Mfr's #57)

1шт.

12

D23834

HOLDER

- fuse (Includes 1 - 25AGC fuse)

2шт.

13

33481

X

METER - engine hour

1шт.

14

54772R2

TERMINAL CONNECTOR

TERMINAL - eyelet type hour meter and pressure switch wires

3шт.

15

221-421

TEE,1/8" NPT

- pipe () 1/8" NPT

1шт.

16

G10972

LINE

- oil pressure (Steel) use D29789

1шт.

D29789

X

LINE - oil pressure (Copper) see G10972

1шт.

17

37388

SPRING

NUT - tube brass

2шт.

18

37389

SPRING

CONNECTOR - tube brass

2шт.

19

O8179AB

X

SWITCH - pressure oil (Hour meter) use D28798

1шт.

D28798

SWITCH

- pressure oil (Hour meter), Includes: Ref. 20

1шт.

20

D28797

ELECTRICAL WIRE

WIRE - pressure switch

1шт.
