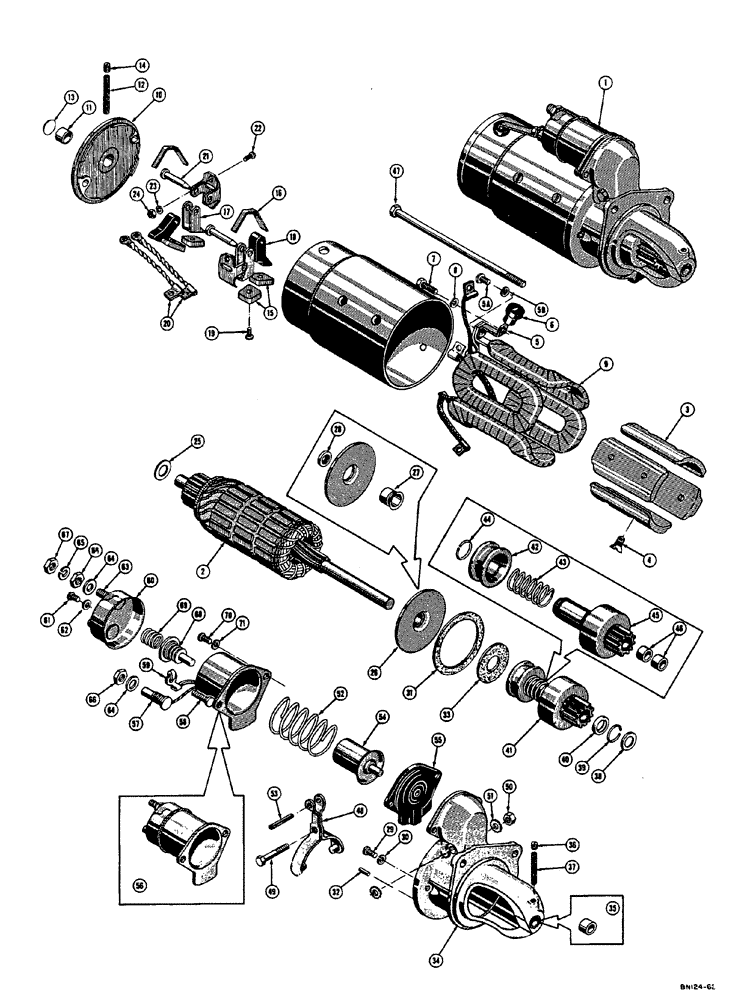

Запчасти Case 310E (033) - G44927 STARTER - DIESEL (06) - ELECTRICAL SYSTEMS

1

1107516

STARTER AND SOLENOID ASS'Y (G44927), Includes: Ref. 2 - 71

1шт.

Available under Case part numbers - see part numbers in description

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

1949190

SPARE PART

1шт.

3

1887021

SPARE PART pole

4шт.

4

1843646

SCREW

pole shoe (R15009)

8шт.

5

1955947

CONNECTOR - field to solenoid switch

1шт.

5a

1944656

SPARE PART switch, Serial Range: connector-field

1шт.

5b

106497

LOCK WASHER,#10

Switch to connector field screw (R16201)

1шт.

6

1955946

GROMMET

connector (In field frame)

1шт.

7

1944656

SPARE PART field, Serial Range: lead-switch

1шт.

8

106497

LOCK WASHER,#10

Field lead to switch (R16201)

1шт.

9

1955951

COIL

field

1шт.

10

1940385

FUNNEL

ASS'Y - commutator end, Includes: Ref. 11 - 14

1шт.

11

1867610

BUSHING

commutator end

1шт.

12

802690

PLUNGER

WICK - oil commutator end

1шт.

13

810819

PLUG

expansion commutator end (R15021)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

14

125947

STUD

pipe commutator end (R15022)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

15

1946434

BRUSH, COMMUTATOR

BRUSH

4шт.

16

1926622

VALVE SPRING

brush

2шт.

17

1926617

BRUSH HOLDER

ground (R15026)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

18

1926618

HOLDER

insulated brush (R15027)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

19

1947695

SCREW

brush attaching (R18195)

4шт.

Available under Case part numbers - see part numbers in description

1шт.

1928015

BRACKET

KIT - service brush holder support, Includes: Ref. 20 - 25

2шт.

20

1926605

ELECTRICAL WIRE

WIRE LEAD - brush ground

2шт.

21

1926600

PIN

brush support

2шт.

22

187463

BUSHING,35.09mm ID x 44.5mm OD x 60.33mm L

attaching support

4шт.

23

120217

LOCK WASHER,#10

Support attaching screw (R15033)

4шт.

Available under Case part numbers - see part numbers in description

1шт.

24

120361

NUT,Hex Mach Screw, #10 - 24

Support attaching screw (R15032)

4шт.

Available under Case part numbers - see part numbers in description

1шт.

25

833602

WASHER

space commutator end (9/16" I.D. x 63/64" O.D. x 1/16" thick) (R15036)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

26

1947540

CENTER BEARING PLATE, Includes: Ref. 27 and 28

1шт.

27

1867149

BUSHING - center bearing

1шт.

28

1947538

SEAL - oil center bearing

1шт.

29

1904370

AXLE

attaching center bearing (R15102)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

30

1880781

WASHER

lock center bearing attaching screw

2шт.

31

1867151

GASKET - between center bearing and housing

1шт.

32

809593

PIN

dowel drive end

1шт.

33

R15043

WASHER

brake (Between center bearing and motor drive)

1шт.

34

1959794

HOUSING - drive, Includes: Ref. 35 - 37

1шт.

35

1862383

BUSHING

drive end

1шт.

36

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

pipe drive end

1шт.

37

R15023

WICK

oil drive end

1шт.

38

1928023

WASHER

space drive end

1шт.

39

1928022

SNAP RING

retainer pinion stop

1шт.

40

1928021

COLLAR

pinion stop

1шт.

41

1952410

WALL

DRIVE ASS Y - motor, Includes: Ref. 42 - 46

1шт.

42

1838436

COLLAR - pinion stop

1шт.

43

1931477

SPARE PART drive ass y

1шт.

44

37521

PIPE

WIRE - lock drive ass'y

1шт.

45

NSS

NOT SOLD SEPARAT

PINION - motor drive

1шт.

46

1873796

BUSHING

oilless

2шт.

47

1955957

BOLT

thru

2шт.

48

1932205

LEVER

shift

1шт.

49

1932197

SCREW

shift lever

1шт.

50

9635082

NUT,5/16" - 18, Gr 5

Shift lever stud

1шт.

51

1953479

WASHER - lock shift lever stud

2шт.

52

1932208

SPRING

plunger return

1шт.

53

455106

PIN

shift lever

1шт.

54

1953041

PLUNGER

solenoid switch

1шт.

55

1951156

BOOT - solenoid switch

1шт.

56

1114289

SPARE PART solenoid (A35350), Includes: Ref. 57 - 69

1шт.

57

1949325

STUD - terminal motor

1шт.

58

1837533

STUD - terminal switch (#8 - 32 NC)

1шт.

59

1937381

SPARE PART terminal

1шт.

60

1933784

COVER - solenoid switch

1шт.

61

132903

ADAPTER

SCREW - cover attaching

2шт.

62

1923935

WASHER - cover attaching screw

2шт.

63

1927344

EYE

STUD - terminal battery (3/8" - 16 NC)

1шт.

64

1949012

WASHER - sealing battery terminal

2шт.

65

453290

LOCK WASHER

battery terminal (3/8")

1шт.

66

1940361

ARTICULATION

NUT - sealing terminal (3/8" - 16 NC)

2шт.

67

280136

NUT,3/8"-16, G8

Terminal stud

1шт.

68

1952450

CONTACT

ASS'Y

1шт.

69

1853342

SPRING

return contact

1шт.

70

1949653

SPARE PART attaching solenoid switch

2шт.

71

274545

TUBE,4.5" Length

WASHER - lock solenoid switch attaching screw

2шт.
