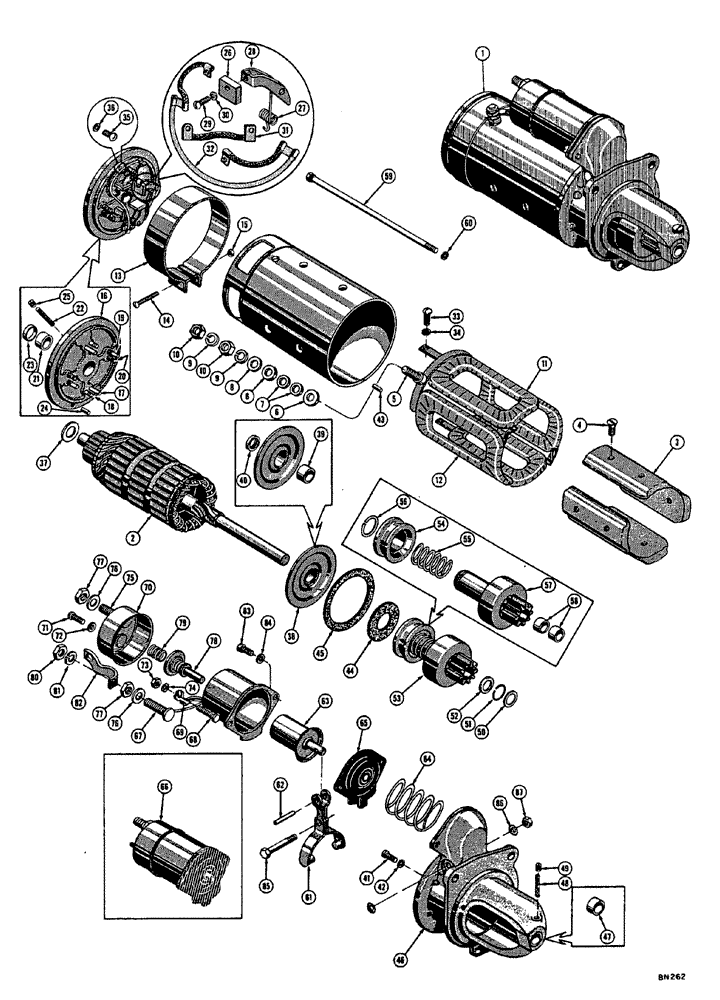

Запчасти Case 310E (032) - G44881 STARTER - DIESEL (06) - ELECTRICAL SYSTEMS

1

1108670

STARTER AND SOLENOID ASS'Y (G44881), Includes: Ref. 2 - 87

1шт.

Available under Case part numbers - see part numbers in description

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

1949190

SPARE PART

1шт.

3

1887021

SPARE PART pole

4шт.

4

1881869

SCREW

pole shoe

8шт.

5

1848837

STUD

terminal

1шт.

6

1861076

WASHER

insulation terminal stud (3/4" O.D.)

2шт.

7

1904669

WASHER

insulation terminal stud (9/16" O.D.) (R15117)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

8

812622

WASHER

plain terminal stud

1шт.

9

120381

WASHER

lock, terminal stud (R15012)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

10

805258

NUT

terminal stud (R15014)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

11

1917587

COIL - field upper

1шт.

12

1917590

COIL - field lower

1шт.

13

1886923

BAND

cover, Includes: Ref. 14 and 15

1шт.

14

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

cover band (R15097)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

15

120614

NUT,Hex, #10 - 32

Cover band screw

1шт.

16

1935681

FRAME

COMMUTATOR END FRAME AND PIN ASSY, Includes: Ref. 17 - 25

1шт.

17

817313

PIN - hinge brush holder (R15130)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

18

817314

PIN - stop, brush holder (R15131)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

19

812016

PIN

brush holder hinge and insulation (R15132)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

20

812015

PIN

brush holder stop and insulation (R15133)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

21

1867610

BUSHING

commutator end

1шт.

22

802694

NOZZLE

WICK - oil commutator end

1шт.

23

810819

PLUG

expansion commutator end (R15021)

1шт.

23

810819

PLUG

expansion commutator end (R15021)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

24

809062

SPARE PART dowel commutator end (R15095)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

25

125947

STUD

pipe oil wick (R15022)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

26

1886643

BRUSH

4шт.

27

813521

VALVE SPRING

brush

4шт.

28

810226

HOLDER

brush

4шт.

29

115903

SCREW

brush attaching

4шт.

30

492-11006

LOCK WASHER,#6

Brush attaching screw

4шт.

31

813554

CABLE

LEAD - brush ground

2шт.

32

819362

CABLE

LEAD - brush jumper

1шт.

33

132392

SUPPORT

SCREW - attaching, brush lead to field coil (R15039)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

34

106497

LOCK WASHER,#10

Brush lead attaching screw (R15033)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

35

122159

HOUSING

SPARE PART SCREW - brush ground lead attaching

2шт.

36

121841

LOCK WASHER,#8

Brush ground lead attaching screw

2шт.

37

833602

WASHER

space commutator end (9/16" I.D. x 63/64" O.D. x 1/16" thick) (R15036)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

38

1947540

CENTER BEARING PLATE, Includes: Ref. 39 and 40

1шт.

39

1867149

BUSHING - center bearing

1шт.

40

1947538

SEAL - oil, center bearing

1шт.

41

1914580

SCREW

center bearing attaching (R15102)

4шт.

Available under Case part numbers - see part numbers in description

1шт.

42

1880781

WASHER

lock center bearing attaching screw (R15040)

4шт.

Available under Case part numbers - see part numbers in description

1шт.

43

809593

PIN

dowel drive end (R15041)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

44

R15043

WASHER

brake (Between center bearing and motor drive) (R15043)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

45

1867151

GASKET - center bearing

1шт.

46

1951155

HOUSING ASS'Y - motor drive, Includes: Ref. 47 - 49

1шт.

47

1862383

BUSHING

drive end

1шт.

48

R15023

WICK

oil drive end (R15129)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

49

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

pipe oil wick (R15022)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

50

1928023

WASHER

space drive end

1шт.

51

1928022

SNAP RING

retainer pinion stop (R15048)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

52

1928021

COLLAR

pinion stop (R15049)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

53

1946220

DRIVE

ASS'Y - motor, Includes: Ref. 54 - 58

1шт.

54

1838436

COLLAR - pinion stop

1шт.

55

1931477

SPARE PART drive ass y

1шт.

56

37521

PIPE

WIRE - lock drive ass'y (R17476)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

57

NSS

NOT SOLD SEPARAT

PINION - motor drive

1шт.

58

1873796

BUSHING

oilless

2шт.

59

1887034

BOLT - thru

2шт.

60

492-11025

LOCK WASHER,1/4"

thru bolt (192-19)

2шт.

Available under Case part numbers - see part numbers in description

1шт.

61

1932205

LEVER

shift

1шт.

62

455106

PIN

attaching shift, Serial Range: lever-plunger

1шт.

63

1953041

PLUNGER

solenoid switch

1шт.

64

1932208

SPRING

plunger return

1шт.

65

1951156

BOOT - solenoid switch

1шт.

66

1114251

SWITCH - solenoid (G44891), Includes: Ref. 67 - 81

1шт.

Available under Case part numbers - see part numbers in description

1шт.

67

1931814

SPARE PART terminal motor (3/8" - 16 NC)

1шт.

68

1837533

STUD - terminal switch (#8 - 32 NC)

1шт.

69

1937381

SPARE PART terminal

1шт.

70

1933784

COVER - solenoid switch

1шт.

71

132903

ADAPTER

SCREW - cover attaching

2шт.

72

1923935

WASHER - cover attaching screw

2шт.

73

453996

NUT,#8-32

terminal stud (#8 - 32 NC)

1шт.

74

1904615

RING

WASHER - lock terminal (#8)

1шт.

75

1927344

EYE

STUD - terminal battery (3/8" - 16 NC)

1шт.

76

1927345

WASHER - insulation terminal stud (3/8")

2шт.

77

280136

NUT,3/8"-16, G8

Terminal stud

2шт.

79

1853342

SPRING

contact return

1шт.

78

1932243

CONTACT

ASS'Y

1шт.

80

280136

NUT,3/8"-16, G8

Terminal (R15015)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

81

453290

LOCK WASHER

terminal (3/8")

1шт.

82

1845937

CONNECTOR - switch (G46308)

1шт.

Available under Case part numbers - see part numbers in description

1шт.

83

132255

SPARE PART attaching solenoid switch Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

84

1869533

WASHER - lock switch attaching screw

2шт.

85

1932197

SCREW

shift lever

1шт.

86

1953479

WASHER - lock sealing

2шт.

87

9635082

NUT,5/16" - 18, Gr 5

Shift lever screw

1шт.
