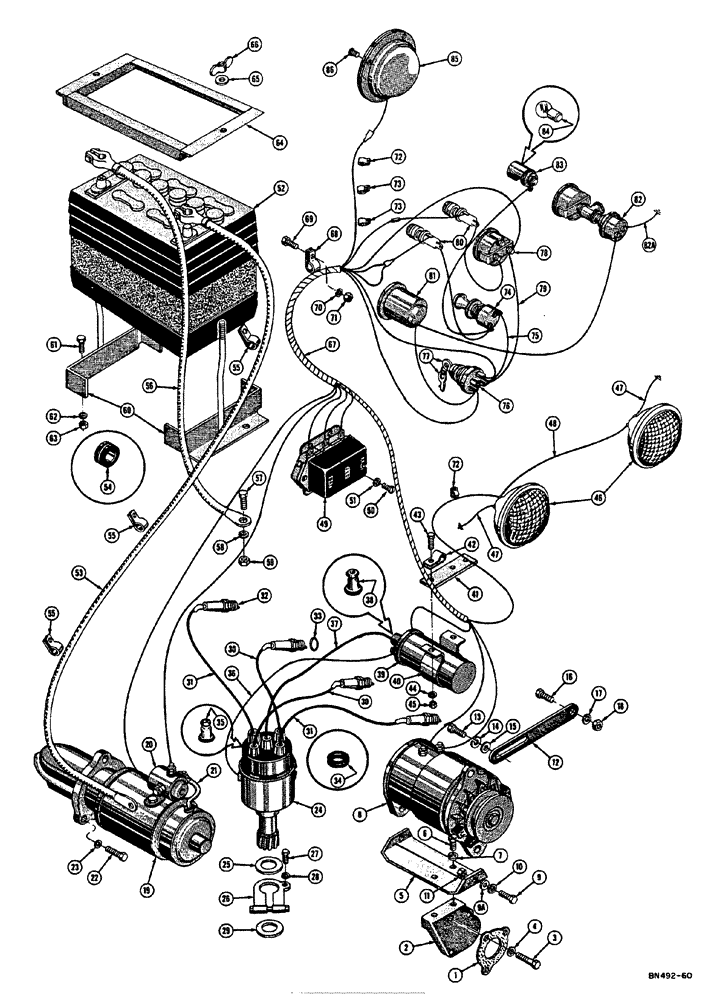

Запчасти Case 310E (015) - STARTER, GENERATOR, BATTERY, AND WIRING - GAS (06) - ELECTRICAL SYSTEMS

1

VT3691

X

GASKET - generator bracket support

1шт.

2

G2098

SPARE PART SUPPORT - generator bracket

1шт.

3

15-652

X

HHCS - 3/8" - 16 NC x 3-1/4"

3шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sec. 3/8"

3шт.

5

D26162

SPARE PART BRACKET - generator

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

7

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

2шт.

8

D22878

X

GENERATOR - 12 volt (Auto-Lite #GJT-7106A) see figure 16 for breakdown

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4

2шт.

9a

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

10

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

NUT - hex (5/16" - 18 NC)

2шт.

12

G11344

SPARE PART STRAP - generator adjusting

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sec. 3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

NUT - hex (3/8" - 16 NC)

1шт.

19

G44888

X

MOTOR - starting (Auto-Lite #MDU-7104) see figure 17 for breakdown, Includes: Ref. 20 and 21

1шт.

19

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

19

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

20

G44892

SPARE PART SOLENOID - starting (Auto-Lite #SAE-4006) use A20145

1шт.

A20145

X

SOLENOID - starting (Auto-Lite #SAW-4201)

1шт.

21

G46297

CONNECTOR, ELEC

CONNECTOR BAR - connecting solenoid to starting motor (Auto-Lite #SS-6L)

1шт.

129-122

NUT,5/16"-24, G5

NUT, (Battery solenoid terminal) outer, not shown 5/16"-24, G5

1шт.

193-1000

NUT,Keps, w/LW,#10-32

NUT - Keps zinc plated (Ignition switch solenoid terminal) outer (#10 - 32 NF) not shown

1шт.

22

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sec. 3/8"

3шт.

24

G11051

DISTRIBUTOR

DISTRIBUTER - (Auto-Lite #IAD-6003-2J) see figure 23 for breakdown

1шт.

25

VT5060

X

WASHER - thrust distributor advance arm (Auto-Lite #LG-816)

1шт.

26

VTA2775

X

ARM - distributor advance (Auto-Lite #IG-186O-A1)

1шт.

27

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

VT4593

X

SEAL -, Serial Range: distributor-block

1шт.

30

VTA3354

X

WIRE - #2 and #3 spark plugs to distributor (8-1/2")

2шт.

31

VT2879

X

WIRE - #1 and #4 spark plugs to distributor (10-1/2")

2шт.

32

G44840

SPARK PLUG

PLUG spark - 18 MM (Champion #D16), Includes: Ref. 33

4шт.

33

G46839

GASKET

GASKET - spark plug

1шт.

34

V20356

NUT

WASHER - rubber spark plug wire retaining

1шт.

35

VT3561

X

NIPPLE - rubber spark plug wires and coil cable at distributor

5шт.

36

G13085

ELECTRICAL WIRE

WIRE WIRE - coil to distributor (12")

1шт.

37

VT3534

X

CABLE - coil to distributor (11")

1шт.

38

G46803

BOOT

NIPPLE - rubber coil to distributor cable at coil

1шт.

39

G44808

X

COIL - ignition (Auto-Lite #CAG-4002A), Includes: Ref. 40

1шт.

40

G46106

BRACKET

BAND - coil mounting

1шт.

173-219

SPARE PART SCREW - machine round head (Zinc plated) (1/4" - 20 NC x 1-1/2") not shown

1шт.

41

G11705

BRACKET

STRAP - mounting coil to valve cover stud

1шт.

42

49774

CLAMP

CLAMP - wire

2шт.

43

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16" - 24 NF x 1"

2шт.

44

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

45

25-115

NUT,5/16"-24, G5

NUT - hex (5/16"-24 NF)

2шт.

46

REF

INSTRUCTION

LIGHT - head (See Fig. 53 ref #16)

2шт.

47

33705

GLASS

WIRE WIRE - ground headlight

2шт.

48

D25753

JUMPER - headlight

1шт.

49

G44878

REGULATOR

REGULATOR - voltage, (Auto-lite #VBO-6201C-1) serviced only as an assembly

1шт.

50

71-46

SCREW - machine fillister head (1/4" - 20 NC x 3/8")

3шт.

51

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

52

D27292

BATTERY - 12 volt (Auto-Lite #11HSA-5OB)

1шт.

53

32375

CABLE

SPARE PART CABLE - battery hot (75")

1шт.

54

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - rubber battery cable hole in R.H. tool box

1шт.

55

49836

CLAMP

CLIP - wire, battery cable

3шт.

56

D27497

SPARE PART CABLE - battery ground (35")

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

58

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sec. 3/8"

1шт.

59

25-106

NUT,3/8"-16, G5

NUT - hex (3/8" - 16 NC)

1шт.

60

D27096

RETAINER - battery

2шт.

61

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

62

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

63

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

64

D22841

SPARE PART BRACKET - battery hold down

1шт.

65

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

2шт.

66

129-410

WING NUT,3/8"-16

NUT - wing (3/8" - 16 NC)

2шт.

67

D24941

SPARE PART HARNESS - main wiring

1шт.

68

49838

CLAMP

CLAMP - wire main wiring harness

2шт.

69

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

70

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

71

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

72

O4599AB

SPARE PART CLAMP - wire main wiring harness

2шт.

73

O2457AB

SPARE PART CLAMP - wire main wiring harness

2шт.

74

10855

X

LIGHT SWITCH SWITCH - light (When stock is exhausted order R22699)

1шт.

R22699

X

SWITCH - light (See 10855)

1шт.

75

NLS

NO LONGER SERVICED

WIRE JUMPER - light switch to ignition switch

1шт.

76

A11373

SWITCH

SWITCH - ignition & starter, Includes Ref 77

1шт.

77

A20346

KEY

KEY - ignition

1шт.

78

10860

X

AMMETER AMMETER

1шт.

79

33709

JUMPER -, Serial Range: ammeter-ignition

1шт.

80

D23834

HOLDER

HOLDER - fuse (Includes 1-25 AGC fuse)

2шт.

81

33481

X

METER - engine hours

1шт.

82

O8179AB

X

SWITCH - pressure oil (Hour meter) use D28798

1шт.

D28798

SWITCH

SWITCH - pressure, oil (Hour meter), Includes: Ref. 82A

1шт.

82a

D28797

ELECTRICAL WIRE

WIRE WIRE - ground pressure switch (18")

1шт.

83

D26513

SPARE PART LIGHT - dash

1шт.

84

D26704

X

BULB - dash light (Mfrs #57)

1шт.

85

30903

SPARE PART LIGHT - tail 12 volt (See Fig. 85 for breakdown)

1шт.

33685

SPARE PART BULB - taillight (Mfrs #1141) not shown

1шт.

86

187-29

SCREW

SCREW - self tapping taillight

3шт.
