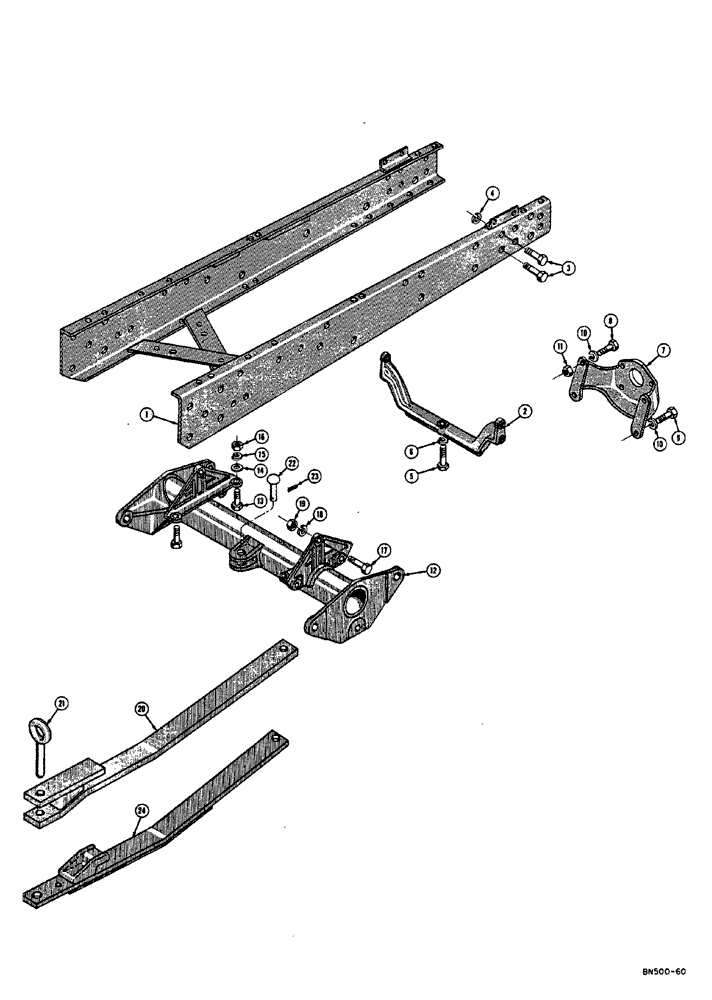

Запчасти Case 310E (001) - ENGINE FRAME, TORQUE TUBE, DRAWBAR, AND ENGINE SUPPORTS (01) - ENGINE

D26340

SPARE PART FRAME - engine (Used up to tractor serial #3018001) when stock is exhausted, for Drawbar or Dozer models order 1-D29722, 8-14-1228, 2-13-1228, 10-92-12, 8-25-1112, and 2-25-1012

1шт.

D29722

SPARE PART FRAME - engine (Used on tractor serial #3018001 and after) see D26340 D28468 and D29948

1шт.

D28468

FRAME - engine Backhoe Models only (Used up to tractor serial #3018001) when stock is exhausted ord

1шт.

D29948

FRAME - engine Backhoe Models only (Used on tractor serial #3018001 and after) see D26340 D29722 and D28468

1шт.

D28779

FRAME - engine 36 gauge tractor only

1шт.

2

35838

SPINDLE

MOUNT - engine, front (Gas models only) when stock is exhausted order D28503

1шт.

D28503

MOUNTING PARTS

engine front (Gas and Diesel) see 38538

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

1шт.

6

92-10

LOCK WASHER,5/8"

1шт.

7

G1212

SPARE PART MOUNT - engine front

1шт.

8

649039

BOLT - ground body (5/8" - 18 NF x 2-1/2")

2шт.

9

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

10

92-10

LOCK WASHER,5/8"

4шт.

11

25-1110

NUT,5/8"-18, G5

hex, (5/8" - 11 NC)

2шт.

12

D26514

SPARE PART TUBE - torque standard 48" gauge tractor (Used up to tractor serial #3018001) when stock is exhausted, for Drawbar or Dozer models order 1 - D29754, 2 - 13-1228, 2 - 92-12, 2 - 25-1012; for Loader models order 1 - D29754, 2 - 13-1248, 2 - 92-12, & 210-12

1шт.

D29754

SPARE PART TUBE - torque standard 48" gauge tractor (Used on tractor serial #3018001 and after) see D26514

1шт.

D26801

SPARE PART TUBE - torque 36" gauge tractor

1шт.

26803

ROLLER BEARING,0.75" ID x 0.85"

TUBE - torque, 42" gauge tractor (Used up to tractor serial #3018001) when stock is exhausted for Drawbar models order 1 - D29753, 2 - 13 - 1228, 2 - 92-12, and 2 - 25-1012; for loader models order 1 - D29753, 2 - 13-1248, 2 - 92-12, and 2 - 25-1012

1шт.

D29753

SPARE PART TUBE - torque, 42" gauge tractor (Used on tractor serial #3018001 and after) see D26803

1шт.

D26805

TUBE - torque, 60" gauge tractor (Used up to tractor serial #3018001) when stock is exhausted order 1 - D29755, 2 - 13-1228, 2 - 92-12, and 2 - 25-1012

1шт.

D29755

SPARE PART TUBE - torque, 60" gauge tractor (Used on tractor serial #3018001 and after) see D26805

1шт.

D26809

SPARE PART TUBE - torque, 72" gauge tractor (Used up to tractor serial #3018001) when stock is exhausted order 1 - D29756, 2 - 13-1228, 2 - 92-12, and 2 - 25-1012

1шт.

D29756

SPARE PART TUBE - torque, 72" gauge tractor (Used on tractor serial #3018001 and after) see D26809

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

14

33496

BRAKE LINING

SHIM - torque tube to engine frame

1шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

Hex

4шт.

17

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(Used up to tractor S/N 3018001) see 13-1228

2шт.

18

92-10

LOCK WASHER,5/8"

2шт.

19

25-1010

NUT,5/8"-11, G5

2шт.

17

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

(Used on tractor S/N 3018001 and after) see 13-1028

2шт.

18

92-12

LOCK WASHER,3/4"

2шт.

19

25-1012

NUT,3/4"-10, G5

2шт.

D26927

SPARE PART DRAWBAR - Industrial complete, Includes: Ref. 20 and 21

1шт.

20

D26895

SPARE PART Industrial

1шт.

21

13073

AXLE PIN

hitch

1шт.

22

13044

NUT

PIN - mounting drawbar

1шт.

23

132-154

COTTER PIN,1/4" x 2"

1шт.

24

D21843

SPARE PART Agricultural (Standard drawbar for use with winch)

1шт.

13109

PIN

DRAWBAR - for use with P.T.O., Serial Range: (Similar-D21843)

1шт.
