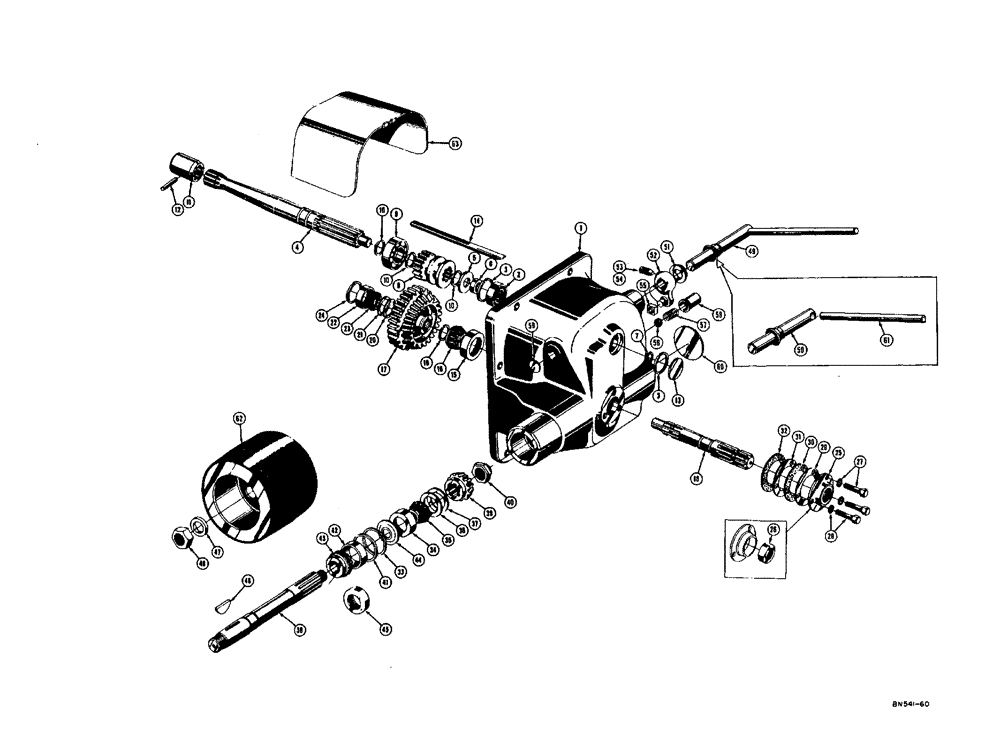

Запчасти Case 310E (118) - POWER TAKE-OFF AND BELT PULLEY (05) - UPPERSTRUCTURE CHASSIS

D23999

POWER TAKE-OFF - complete, Model #70 BP-18 (Control mounted on P.T.O.) (When stock is exhausted, order D29504 and 23047), Includes: Ref. 1 - 60

1шт.

D29504

POWER TAKE-OFF - complete Model #70 BP-19 (Control mounted in cockpit) (See D23999), Includes: Ref. 1 - 60

1шт.

1

23087

HYDRAULIC HOSE

HOUSING - P.T.O. drive (Includes Ref. 33)

1шт.

2

23043

BEARING - P.T.O. drive shaft

1шт.

3

23030

PLATE

SNAP RING - P.T.O. shaft bearing

2шт.

4

23009

OIL SEAL

SHAFT - P.T.O. drive

1шт.

5

23022

HYDRAULIC HOSE

SPACER - drive shaft bearing

1шт.

6

23023

BEARING CONE,0.669" ID x 0.9797" OD

RACE - inner drive shaft bearing

1шт.

7

23024

HYDRAULIC HOSE

RING - retaining drive shaft

1шт.

8

23054

CARTRIDGE

GEAR - drive P.T.O. shaft (Has #207959 stamped in surface) when stock is exhausted order D29503 P.T.O. shaft drive gear and D29502 P.T.O. shaft driven gear (See D23997)

1шт.

When replacing 23054 P.T.O. shaft drive gear with D29503 P.T.O. shaft drive gear it will also be necessary to order D29502 P.T.O. shaft driven gear.

1шт.

D29503

GEAR - drive P.T.O.shaft (Has #216628 stamped in surface) see 23054

1шт.

When replacing 23054 P.T.O. shaft drive gear with D29503 P.T.O. shaft drive gear it will also be necessary to order D29502 P.T.O. shaft driven gear.

1шт.

9

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

- ball

1шт.

10

VT2111

X

SNAP RING - P.T.O. drive shaft

3шт.

11

23018

SLEEVE,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

- drive shaft

1шт.

12

23019

RIVET

- drive shaft sleeve

1шт.

13

23080

HYDRAULIC HOSE

PLUG - Welch P.T.O. drive shaft hole

1шт.

14

23088

TUBE

- oil P.T.O. bearing

1шт.

15

O4056TS

CUP

- bearing

1шт.

16

VT3404

X

CONE - bearing

1шт.

17

D23997

GEAR - driven P.T.O. shaft (Has #224725 stamped in surface) when stock is exhausted order D29502 P.T.O. shaft driven gear and D29503 P.T.O. shaft drive gear (See 23054)

1шт.

When replacing D23997 P.T.O. shaft drive gear with D29502 P.T.O. shaft driven gear it will also be necessary to order D29503 P.T.O. shaft drive gear

1шт.

17

D29502

GEAR - driven P.T.O. shaft (Has #216627 stamped in surface) see 023997

1шт.

18

23998

SHAFT - P.T.O. drive

1шт.

19

VT2111

X

SNAP RING - outer bearing retaining

1шт.

20

D23996

SPACER - bearing P.T.O. shaft driven gear

1шт.

21

D25223

SHIM - P.T.O. shaft inner bearing (.010" thick)

1шт.

D25222

SHIM - P.T.O. shaft inner bearing (.015" thick)

1шт.

23038

HYDRAULIC HOSE

SHIM - P.T.O. shaft inner bearing (.020" thick)

1шт.

22

VT2214

X

CUP - bearing

1шт.

23

O1542AB

BEARING ASSY

CONE - bearing

1шт.

24

23031

HYDRAULIC HOSE

SNAP RING - bearing retaining

1шт.

25

23011

PIN

CAP - P.T.O. shaft bearing

1шт.

26

23033

OIL SEAL

SEAL - oil P.T.O. shaft

1шт.

27

NLS

NO LONGER SERVICED

SCREW AND LOCKWASHER ASSY

1шт.

28

23016

CAP

SCREW AND LOCKWASHER ASSY

2шт.

29

23013

TINE

SHIM - bearing cap (.010" thick)

1шт.

30

23014

4 WAY CONNECTION

GASKET - bearing cap

1шт.

31

23012

TINE

SHIM - bearing cap (.005" thick)

1шт.

32

23015

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

GASKET - bearing cap

1шт.

33

11453

TAPERED BEARING

SNAP RING - belt pulley shaft inner bearing

1шт.

34

O4056TS

CUP

- bearing

1шт.

35

VT3404

X

CONE - bearing

1шт.

36

23035

HYDRAULIC HOSE

SHIM - belt pulley shaft inner bearing (.005" thick)

1шт.

37

23036

HYDRAULIC HOSE

SHIM - belt pulley shaft inner bearing (.010" thick)

1шт.

38

23027

SHAFT - belt pulley

1шт.

39

23074

HYDRAULIC HOSE

GEAR - belt pulley shaft

1шт.

40

11380

NUT

- belt pulley gear retaining

1шт.

41

11453

TAPERED BEARING

SNAP RING - belt pulley shaft outer bearing

1шт.

42

O4056TS

CUP

- bearing

1шт.

43

VT3404

X

CONE - bearing

1шт.

44

23037

HYDRAULIC HOSE

WASHER - oil belt pulley shaft

1шт.

45

D49930

OIL SEAL

SEAL - oil belt pulley shaft

1шт.

46

D20977

X

KEY - Woodruff belt pulley shaft

1шт.

47

23042

HYDRAULIC HOSE

WASHER - belt pulley retaining

1шт.

48

23041

HYDRAULIC HOSE

NUT - belt pulley retaining

1шт.

49

23046

VALVE SPRING

LEVER AND SHAFT - P.T.O.shift (For use with P.T.O. that does not have cockpit control) When stock is exhausted order D28969 shaft and 23047 lever

1шт.

When replacing 23046 shift lever and shaft assembly with D28969 shaft and 23047 lever, 23047 lever must be welded to D28969

1шт.

50

D28969

SHAFT - P.T.O. shift (For use with P.T.O. that has cockpit control) see 23046

1шт.

51

23093

HYDRAULIC HOSE

WASHER - cork shift shaft

1шт.

52

23094

HYDRAULIC HOSE

FINGER - shift

1шт.

53

23095

HYDRAULIC HOSE

SCREW - mounting shift finger

1шт.

54

R10831

ELECTRICAL WIRE

LOCK WIRE - shift finger mounting screw

1шт.

55

23096

FILTER ASSY

TRUNNION - shift finger

1шт.

56

JD8296AB

BALL - mesh lock (5/8" dia.)

1шт.

57

23098

SPRING

- mesh lock

1шт.

58

23097

FLANGE NUT,Flg, 7/16"-14, GF

RETAINER - mesh lock spring

1шт.

59

23089

HYDRAULIC HOSE

PLUG - Welch belt pulley shaft

1шт.

60

23034

HYDRAULIC HOSE

PLUG - Welch belt pulley shaft

1шт.

61

23047

HYDRAULIC HOSE

LEVER - P.T.O. shift shaft (Used only on P.T.O.that does not have cockpit control) see 23046

1шт.

When replacing 23046 shift lever and shaft assembly with D28969 shaft and 23047 lever, 23047 lever must be welded to D28969

1шт.

62

23045

BUSHING

PULLEY - belt P.T.O.

1шт.

63

23040

HYDRAULIC HOSE

SHIELD - P.T.O.

1шт.
