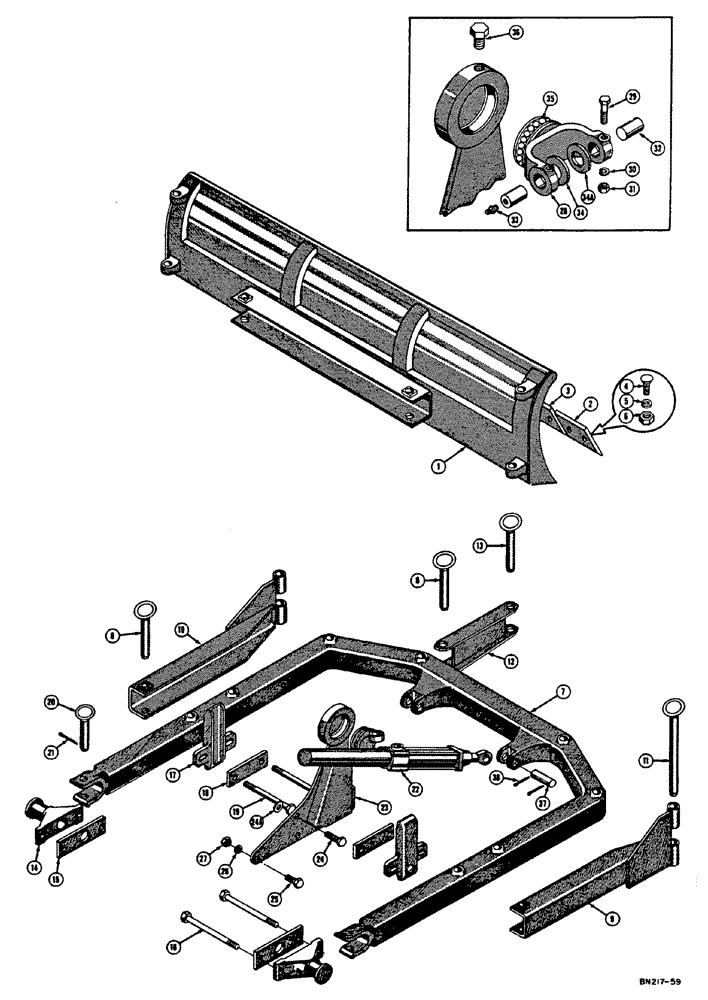

Запчасти Case 310E (091) - MECHANICAL ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
16741
MOLDBOARD - Mechanical Angling Dozer
1шт.
2
NLS
NO LONGER SERVICED
BLADE - cutting end
2шт.
3
16792
EDGE, CUTTING
BLADE - cutting center
1шт.
4
19-828
BOLT,1/2"-13 x 1 3/4", G5
- plow (1/2" - 13 NC x 1-3/4")
22шт.
5
92-8
LOCK WASHER,1/2"
med. sec. 1/2"
22шт.
6
25-108
NUT,1/2"-13, G5
- hex (1/2" - 13 NC)
22шт.
7
D27628
"C" FRAME - Mechanical Angling Dozer
1шт.
8
16720
SHROUD
PIN - moldboard and stabilizer arms to "C" frame
4шт.
11
16569
BACK PLATE
PIN - stabilizer, Serial Range: arm-moldboard
2шт.
12
16798
ARM - support angling
1шт.
13
16720
SHROUD
PIN - mounting, support arm
1шт.
14
34044
SPACER
BRACKET - pivot, Dozer attaching
2шт.
15
34043
SPACER,12.95mm ID x 19.05mm OD x 17.47mm L
- pivot bracket
2шт.
16
16-12192
BOLT (MACHINE)
HHCS - 3/4" - 16 HF x 12"
4шт.
18
34047
LEVER
SPACER - rub plate
2шт.
19
16-12192
BOLT (MACHINE)
HHCS - 3/4" - 16 NP x 12"
4шт.
20
38679
PIN - mounting, "C" frame to pivot bracket
2шт.
21
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
2шт.
22
D25937
CYLINDER - Dozer lift hydraulic (R.H.) with tie rods (See figure 93 for breakdown) when stock is exhausted order D27826 cylinder D27783 tube D27782 special elbow 221-2 pipe plug D27785 tube and 218-5107 elbow
1шт.
22
D25936
CYLINDER - Dozer lift hydraulic (L.H.) with tie rods (See figure 93 for breakdown) when stock is exhausted order D27826 cylinder D27783 tube D27785 tube and 218-5107 elbow
1шт.
22
D27826
CYLINDER - Dozer lift, hydraulic (Without tie rods) (See figure 93 for breakdown) (See D25936 and D25937)
2шт.
D27783
TUBE - hose to front lift cylinder port (Cylinder without tie rods only) not shown
2шт.
D27785
TUBE - hose to rear lift cylinder port (Cylinder without tie rods only) not shown
2шт.
D27782
X
ELBOW - special R H front lift cylinder port (Cylinder without tie rods only) (5/8" JIC male x 5/8" JIC male x 1/4" NPT female) not shown
1шт.
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - D27782 elbow (Not shown)
1шт.
221-2
DRAIN PLUG,Sq Hd, 1/4"-18 NPTF
PLUG - pipe 1/4" NPT square head (Cylinder without tie rods only) not shown
1шт.
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- male 90° (Front and rear ports of L.H. lift cylinder and rear port of R.H. lift cylinder) (5/8" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)
3шт.
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - 218-5107 elbow (Not shown)
1шт.
23
D24502
BRACKET - cylinder R.H.
1шт.
23
D24501
BRACKET - cylinder L.H.
1шт.
24
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
2шт.
24a
95-10
WASHER,5/8"
WAHER - standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick) R.H. cylinder bracket upper mounting bolts (Diesel models only)
2шт.
25
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
27
25-1010
NUT,5/8"-11, G5
- hex (5/8" - 18 NC)
10шт.
28
D24497
TRUNNION
- inner race
2шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight (1/8" NPT)
2шт.
29
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8" - 16 NC x 3"
4шт.
30
92-6
LOCK WASHER,3/8"
med. sec. 3/8"
4шт.
31
25-106
NUT,3/8"-16, G5
- hex (3/8" - 16 NC)
4шт.
32
D24508
PIN,31.74mm OD x 50.8mm L
- mounting, Serial Range: cylinder-trunnion
4шт.
33
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight (1/8" NPT)
4шт.
34
D24516
WASHER
- thrust, bottom (1-9/32" I.D. x 2-1/4" O.D. x 3/16" thick)
2шт.
34a
32625
WASHER - thrust top (1-9/32" I.D. x 2-1/2" O.D. x 11/64") thick) use D24516
2шт.
35
211-17
BALL,3/4" Dia
- steel (.) 3/4" Dia
38шт.
36
D24506
PLUG
- special (7/8" - 14 NF)
2шт.
37
16726
PIN - lift cylinder to "C" frame
2шт.
38
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
Выбрано товаров: 51
