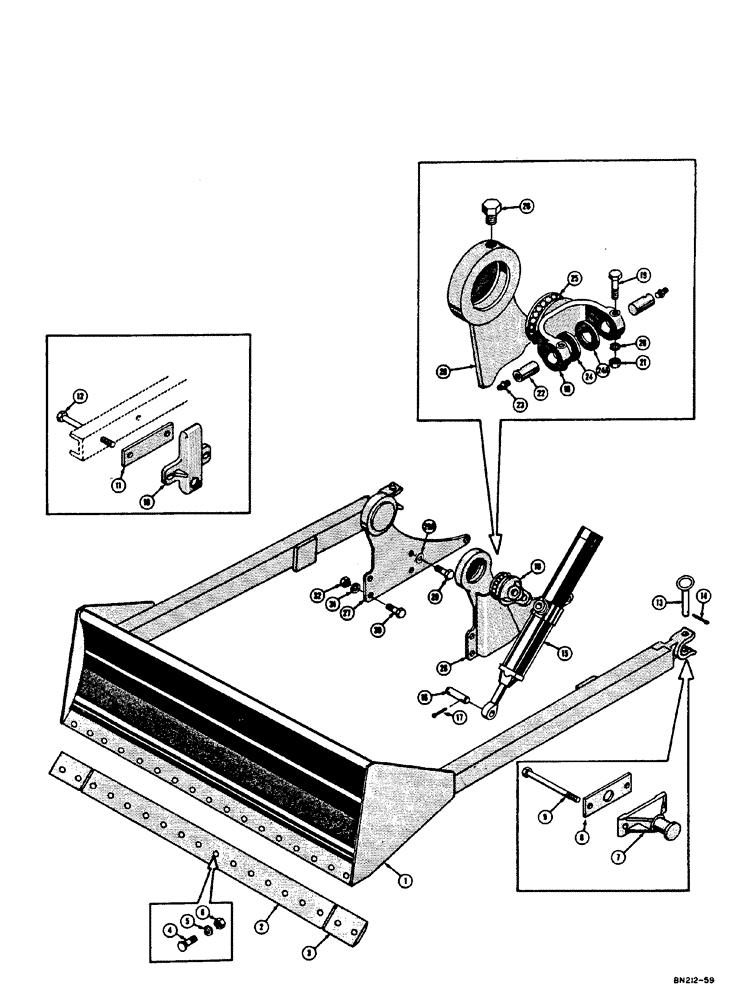

Запчасти Case 310E (090) - BULLDOZER (05) - UPPERSTRUCTURE CHASSIS

1

D24510

MOLDBOARD AND PUSH BEAM - Bulldozer

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting center

1шт.

3

D25368

BLADE - cutting end

2шт.

4

19-832

BOLT

- plow (1/2" - 13 NC x 2")

18шт.

5

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

18шт.

7

34044

SPACER

BRACKET - pivot Dozer attaching

2шт.

8

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

9

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12"

4шт.

10

33961

CONNECTING LINK

PLATE - rub

2шт.

11

34047

LEVER

SPACER - rub plate

2шт.

12

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12"

4шт.

13

38679

PIN - mounting moldboard and push beam to pivot bracket

2шт.

14

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

15

D25937

CYLINDER - Dozer lift hydraulic (R.H.) with tie rods (See figure 93 for breakdown) when stock is exhausted order 1 - D27826 cylinder 1 - D27783 tube 1 - D27782 special elbow 1 - 221-2 pipe plug 1 - D27785 tube and 1 - 218-5107 elbow

1шт.

15

D25936

CYLINDER - Dozer lift hydraulic (L.H.) with tie rods (See figure 93 for breakdown) when stock is exhausted order 1 - D27826 cylinder 1 - D27783 tube 1 - D27785 tube and 2 - 218-5107 elbow

1шт.

15

D27826

CYLINDER - Dozer lift hydraulic (Without tie rods) see figure 93 for breakdown (See D25936 and D25937)

2шт.

D27783

TUBE - hose to front lift cylinder port (Cylinder without tie rods only) not shown

2шт.

D27785

TUBE - hose to rear lift cylinder port (Cylinder without tie rods only) not shown

2шт.

D27782

X

ELBOW - special R H front lift cylinder port (Cylinder without tie rods only) (5/8" JIC male x 5/8" male x 5/8" JIC male x 1/4" NPT female) not shown

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - D27782 elbow (Not shown)

1шт.

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT) cylinder without tie rods only (Not shown)

1шт.

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (Front and rear ports of L.H. lift cylinder and rear port of R.H. lift cylinder) (5/8" JIC) cylinder without tie rods only (Not shown)

3шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - 218-5107 elbow (Not shown)

1шт.

16

16726

PIN - lift cylinder to moldboard and push beam

2шт.

17

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

18

D24497

TRUNNION

- inner race

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

2шт.

19

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

20

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

22

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

4шт.

24

D24516

WASHER

- thrust bottom (1-9/32" I.D. x 2-1/4" O.D. x 3/16" thick)

2шт.

24a

32625

WASHER - thrust top (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick) use D24516

2шт.

25

VT3268

BALL - steel (3/4" dia.) use 211-17

38шт.

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

26

D24506

PLUG

- special (7/8" - 14 NF)

2шт.

27

D24502

BRACKET - cylinder R.H.

1шт.

28

D24501

BRACKET - cylinder L.H.

1шт.

29

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

29a

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick) R.H. cylinder bracket upper mounting bolts (Diesel Models only)

2шт.

30

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

32

25-1010

NUT,5/8"-11, G5

10шт.
