(089) - 900 LB. REAR COUNTERWEIGHT (WITH WINCH)

Запчасти Case 310E (089) - 900 LB. REAR COUNTERWEIGHT (WITH WINCH) (05) - UPPERSTRUCTURE CHASSIS

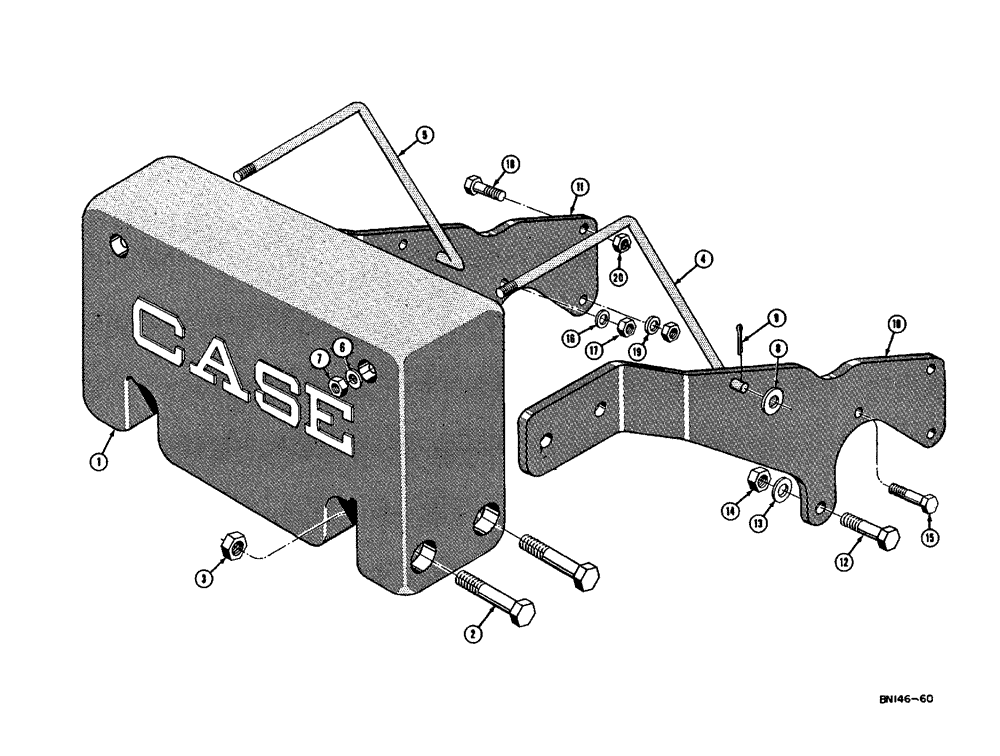

Схема запчастей Case 310E - (089) - 900 LB. REAR COUNTERWEIGHT (WITH WINCH) (05) - UPPERSTRUCTURE CHASSIS
19
7
6
18
30
14
15
4
15
8
13
8
3
3
28
10
4
17
5
20
2
1
5
9
6
16
9
17
2
7
11
12
1
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

32105

COUNTERWEIGHT - rear 900 lb

1шт.

2

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

lock (1 - 8 NC)

4шт.

4

D26890

ROD - support R.H.

1шт.

5

D26889

ROD - support L.H.

1шт.

6

195-41

WASHER,5/8"

2шт.

7

230-4117

LOCK NUT,7/16"-14, GA

lock (5/8 - 11 NC)

2шт.

8

95-10

WASHER,5/8"

standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick)

2шт.

9

132-91

COTTER PIN,3/16" x 1"

2шт.

10

D26910

SPARE PART ARM - counterweight support R.H. (Used up to Loader serial number 4065701) when stock is exhausted order 1 - D29744 2 - 13-1248 and 2 - 131-357

1шт.

D29744

SPARE PART ARM - counterweight support R.H. (Used on Loader serial number 4065701 and after) see D26910

1шт.

11

D26911

SPARE PART ARM - counterweight support L H. (Used up to Loader serial number 4065701) when stock is exhausted order 1 - D29743 2 - 13-1248 and 2 - 131-357

1шт.

D29743

SPARE PART ARM - counterweight support L.H. (Used on Loader serial nmuber 4065701 and after) see D26911

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Used on Loader S/N 4065701 and after) see 13-1040

2шт.

13

D21262

WASHER

SPACER

2шт.

14

230-41112

LOCK NUT,3/4"-10, GA

lock (3/4" - 10 NC)

2шт.

15

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

16

W8199S

SPARE PART SPACER - 21/32" I.D. x 2-1/8" O.D. x 9/64" thick)

2шт.

17

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" x 13 NC)

2шт.

18

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Used up to Loader S/N 4065701) see 13-1248

4шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Used on Loader S/N 4065701 and after) see 13-1040

4шт.

19

W8199S

SPARE PART SPACER - 21/32" I D x 2-1/8" O.D. x 9/64" thick (Used up to Loader serial number 4065701) see O907B

2шт.

O907B

SPARE PART SPACER - 25/32" I.D. x 1-7/16" O.D. x 9/64" thick (Used on Loader serial number 4065701 and after) see W8199S

2шт.

20

230-4117

LOCK NUT,7/16"-14, GA

lock (5/8" - 11 NC) 13-1040 cap screw

4шт.

230-41112

LOCK NUT,3/4"-10, GA

lock (3/4" - 10 NC) 13-1248 cap screw

4шт.
