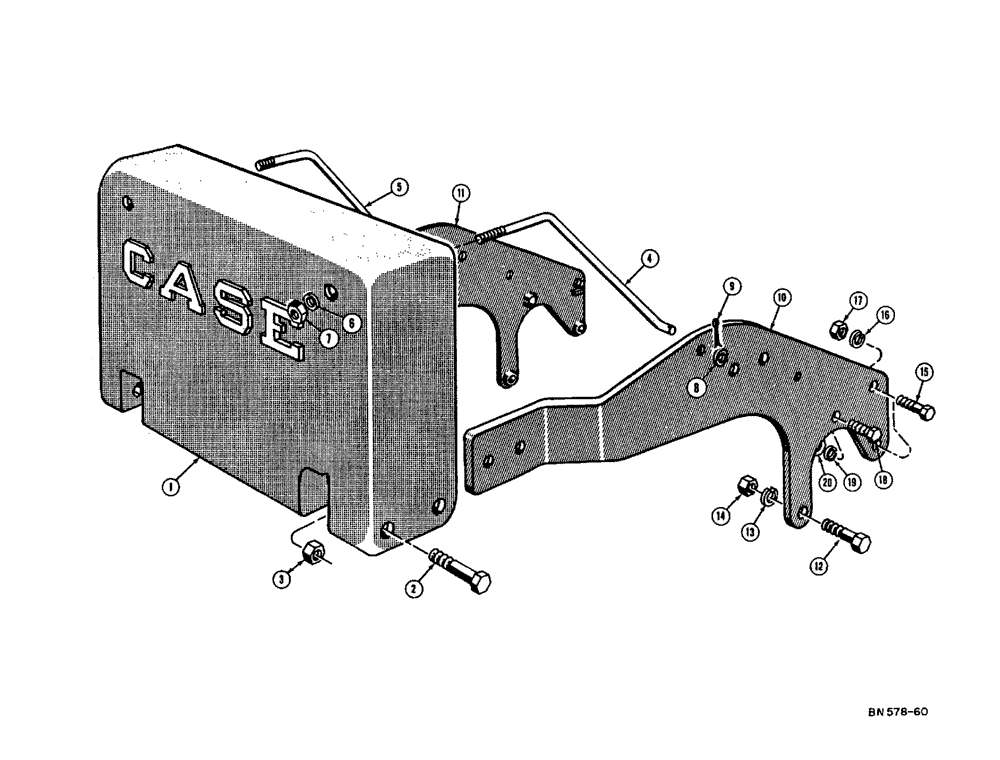

Запчасти Case 310E (088) - REAR COUNTERWEIGHT (WITH P.T.O. AND BELT PULLEY) (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear 1400 lb

1шт.

2

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

lock (1 - 8 NC)

4шт.

4

D21392

ROD - stabilizer R.H.

1шт.

5

D21393

ROD - stabilizer L.H.

1шт.

6

195-41

WASHER,5/8"

2шт.

7

131-154

LOCK NUT,5/8"-18, GA

2шт.

8

95-10

WASHER,5/8"

standard wrot (11/16" I D x 1-3/4" O.D. x 9/64" thick)

2шт.

9

132-91

COTTER PIN,3/16" x 1"

2шт.

10

D21263

ARM - counterweight support R.H. (Used up to Loader serial number 4065701) when stock is exhausted order 1 - D29766 2 - 13-1244 2 - 92-12 and 2 - 25-1812

1шт.

D29766

ARM - counterweight support R.H. (Used on Loader serial number 4065701 and after) see D21263

1шт.

11

D21264

ARM - counterweight support L.H. (Used up to Loader serial number 4065701) when stock is exhausted order 1 - D29767 2 - 13-1244 2 - 92-12 and 2 - 25-1812

1шт.

D29767

ARM - counterweight support L.H. (Used on Loader serial number 4065701 and after) see D21764

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

13

92-12

LOCK WASHER,3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8" - 18 NF x 2-3/4" (Used up to Loader serial number 4065701) see 13-1244

4шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(Used on Loader S/N 4065701 and after) see 14-1044

4шт.

16

92-10

LOCK WASHER,5/8"

14-1044 cap screw

4шт.

92-12

LOCK WASHER,3/4"

13-1244 cap screw

4шт.

17

25-1110

NUT,5/8"-18, G5

hex (5/8" - 18 NF) 13-1044 cap screw

4шт.

25-1812

SPARE PART hex slotted (3/4" - 10 NC) 13-1244 cap screw

4шт.

18

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

25-108

NUT,1/2"-13, G5

Hex

2шт.
