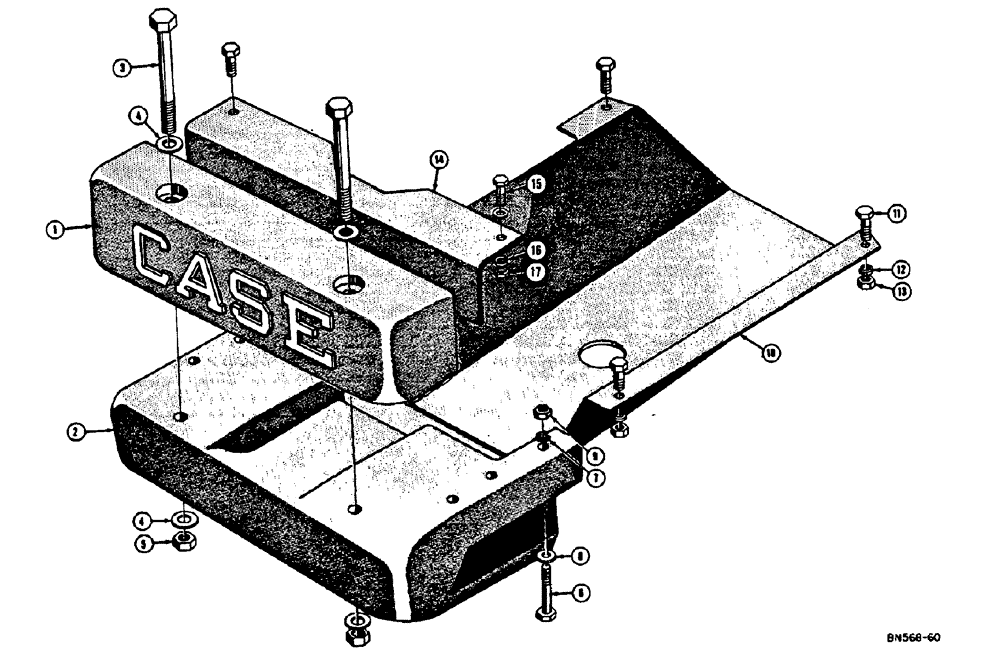

Запчасти Case 310E (067) - FRONT COUNTERWEIGHT, BUMPER, AND SPECIAL CRANKCASE GUARD (05) - UPPERSTRUCTURE CHASSIS

1

37490

BLOCK

COUNTER - upper

1шт.

2

36616

SHIM

COUNTER - lower

1шт.

3

13-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

2шт.

4

95-10

WASHER,5/8"

standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64")

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

lock (5/8" - 11 NC)

2шт.

6

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

7

92-8

LOCK WASHER,1/2"

6шт.

8

95-8

WASHER,1/2"

standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64")

6шт.

9

25-108

NUT,1/2"-13, G5

Hex

6шт.

10

D26696

SPARE PART GUARD - crankcase

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

Hex

4шт.

14

D23283

BUMPER - front

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

Hex

2шт.
