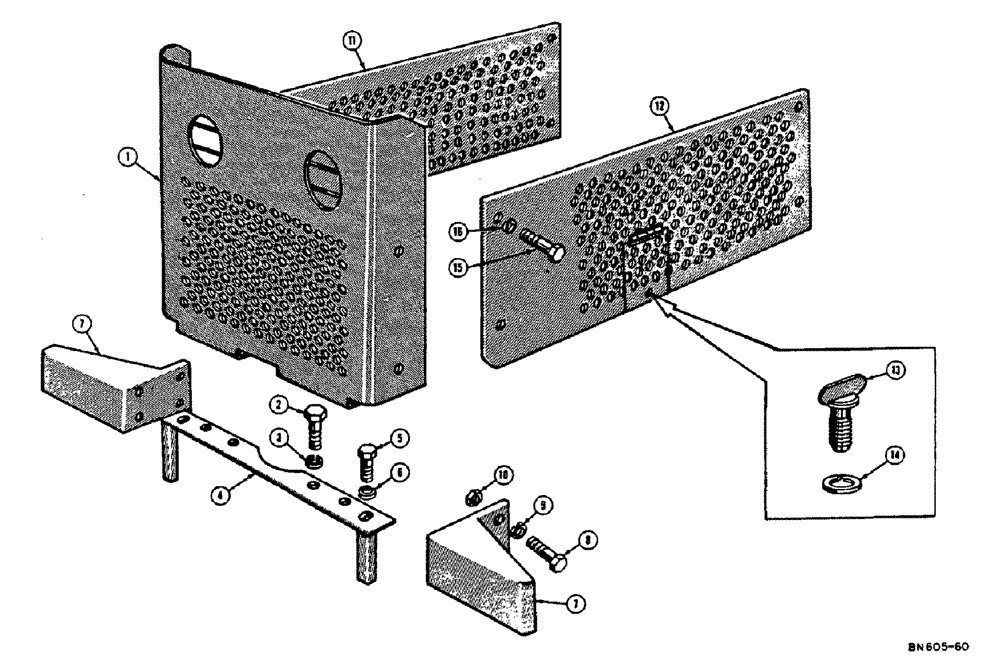

Запчасти Case 310E (065) - FORESTRY RADIATOR GUARD, SIDE PLATES, AND BUMPER EXTENSIONS (05) - UPPERSTRUCTURE CHASSIS

1

D27175

GUARD - radiator and light

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

D23230

PLATE - mounting radiator and light guard

1шт.

5

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 HF x 1

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

23396

CLEVIS PIN,7.95mm OD x 52.39mm L

EXTENSION - bumper

2шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

9

92-8

LOCK WASHER,1/2"

8шт.

10

25-108

NUT,1/2"-13, G5

Hex

8шт.

11

D27180

PLATE - side R.H.

1шт.

12

D27181

PLATE - side L.H., Includes: Ref. 13 and 14

1шт.

14

36459

SPARE PART

WASHER - retaining (17/64" I.D. x 5/8" O.D. x 1/32" thick)

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

16

92-8

LOCK WASHER,1/2"

8шт.
