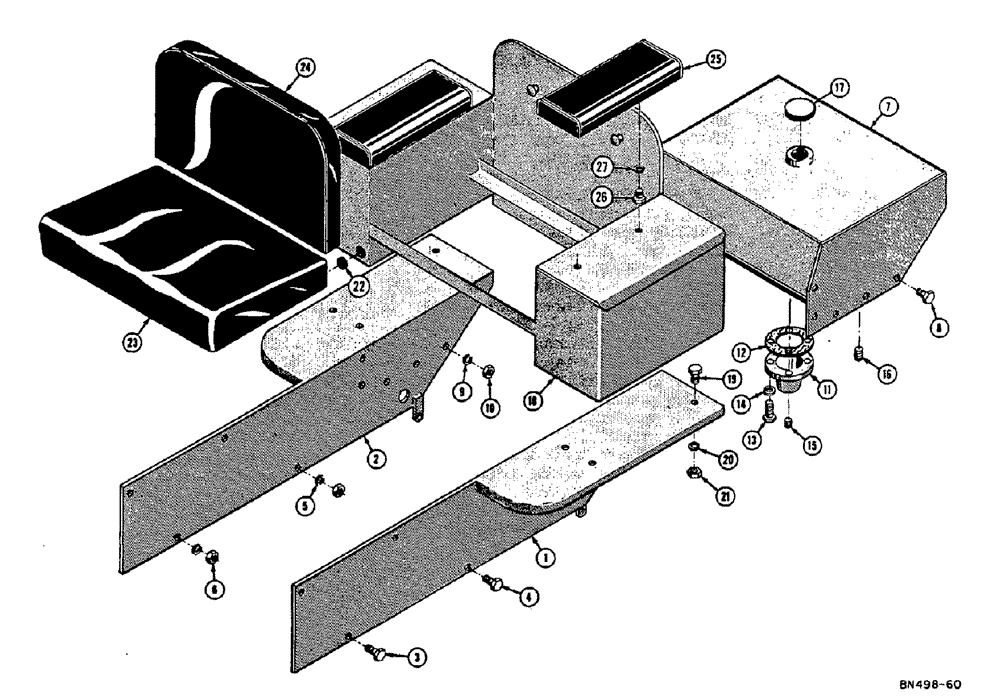

Запчасти Case 310E (065) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (BACKHOE MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

D26673

FENDER - L.H.

1шт.

2

D26674

FENDER - R.H.

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

4шт.

7

D27081

TANK - fuel

1шт.

8

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

10шт.

9

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

10шт.

10

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

10шт.

11

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

12

35621

GASKET

- fuel tank drain cover

1шт.

13

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

4шт.

14

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

15

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe square head (1/8" NPT)

1шт.

16

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe square head (3/8" NPT), Serial Range: -3016354

1шт.

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe square head (1/4" NPT) (Gas models only) not shown

1шт.

17

CASE10731

FILLER CAP

CAP - filler fuel tank

1шт.

18

D27117

SEAT and BACK

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

30903

LIGHT - tail 12 volt (Not shown) see figure 64 for breakdown

1шт.

187-29

SCREW

- self tapping (Not shown)

3шт.

22

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber

1шт.

23

D27691

X

CUSHION - seat

1шт.

24

D27690

CUSHION - back

1шт.

25

D27693

ARMREST

CUSHION - arm rest

2шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
