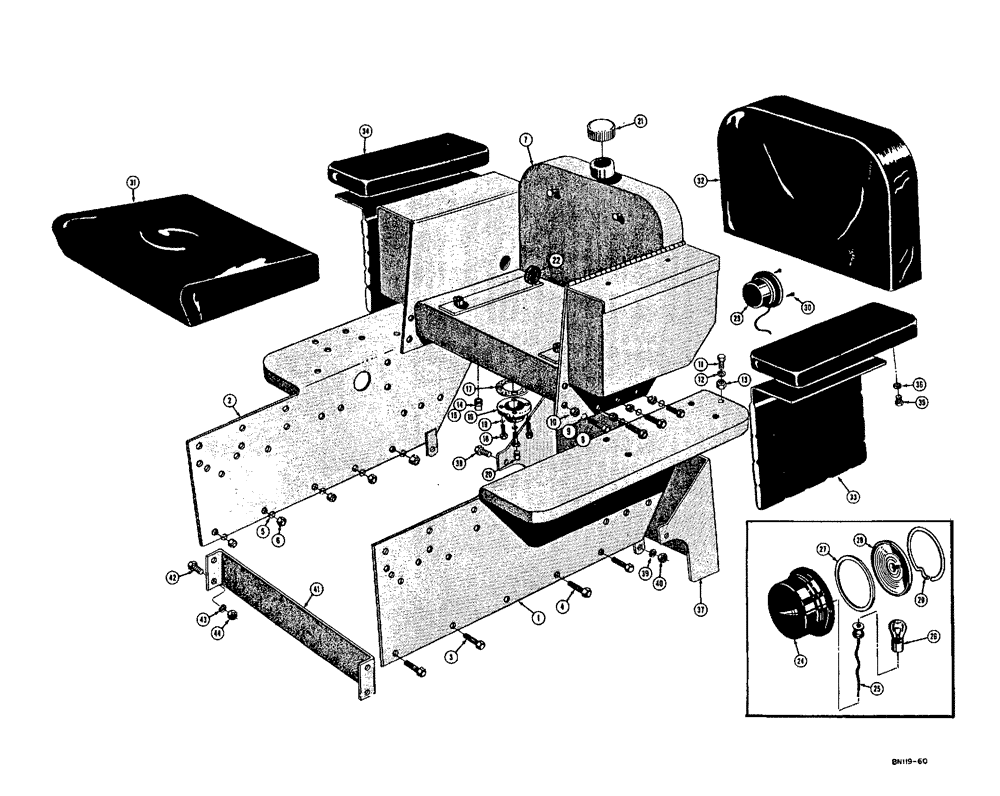

Запчасти Case 310E (064) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D26673

FENDER - L.H. standard

1шт.

D27253

FENDER - L.H. Forestry Model and 36" gauge tractors only

1шт.

2

D26674

FENDER - R.H. standard

1шт.

D27252

FENDER - R.H. Forestry Model and 36" gauge tractors only

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

4шт.

7

D26667

SEAT and TANK

1шт.

When replacing original equipment seat and tank on Gas Models before tractor serial number 3016354, it will also be necessary to order 1 - D28153 fuel line tube

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

9

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

10шт.

10

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

10шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe 3/8" NPT square head (Used on tractors up to serial #3016354)

1шт.

15

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe 1/4" NPT square head (Gas Models only)

1шт.

16

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

17

35621

GASKET

- fuel tank drain cover

1шт.

18

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

4шт.

19

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

20

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe 1/8" NPT square head

1шт.

21

CASE10731

FILLER CAP

CAP - filler fuel tank

1шт.

22

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

23

30903

LIGHT - tail, 12 volt, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - tail light

1шт.

25

33687

SCREW

WIRE ASSY - tail light

1шт.

26

33685

BULB - taillight (Mfrs. #1141)

1шт.

27

35653

GASKET - lens

1шт.

28

35654

STEERING TIE-ROD

LENS - tail light

1шт.

29

33683

WIRE - lens retaining

1шт.

30

187-29

SCREW

- self tapping

3шт.

31

D27691

X

CUSHION - seat

1шт.

32

D27690

CUSHION - back

1шт.

33

D27692

PAD - side (If used)

2шт.

34

D27693

ARMREST

CUSHION - arm rest

2шт.

35

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

D21408

GUARD - brush rear (Forestry Model)

1шт.

38

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

39

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

2шт.

40

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

2шт.

41

D21398

BRACE - fender Forestry Model

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

43

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

44

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.
