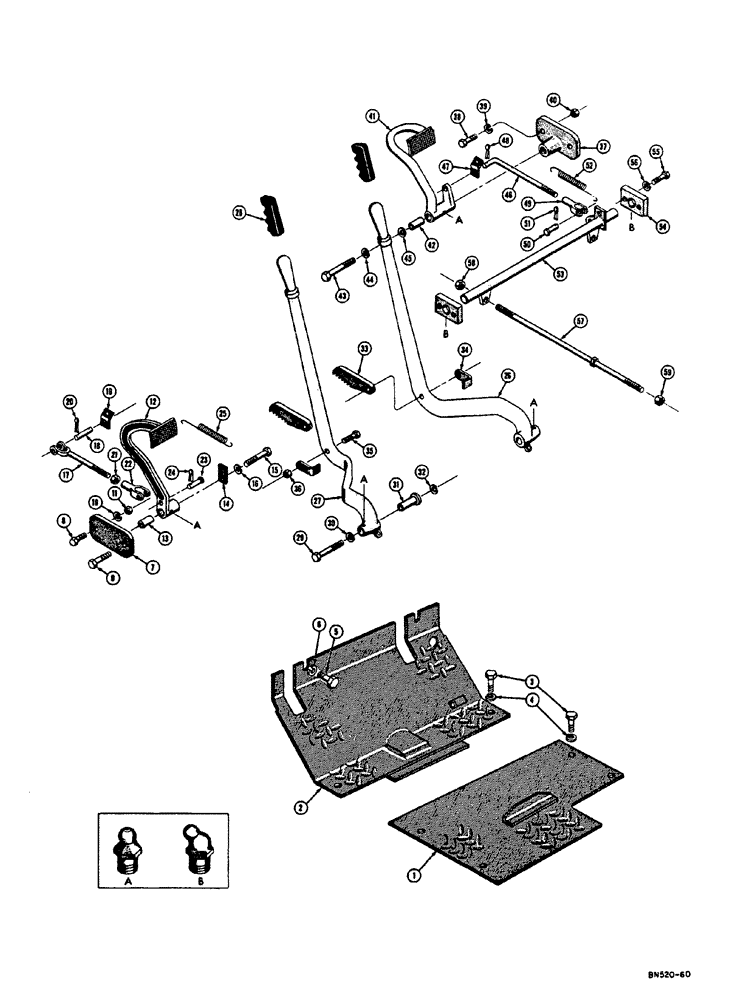

Запчасти Case 310E (040) - FLOOR PLATE, CLUTCH AND BRAKE PEDALS, AND STEERING LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

D26518

PLATE - floor rear

1шт.

2

D26515

PLATE - floor front

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

95-6

WASHER,3/8"

- standard wrot (13/32" I.D. x 13/16" O.D. x 5/64" thick) not shown

6шт.

4

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

6шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

2шт.

7

11025

BELT, TRANSMISSION

BRACKET - mounting clutch pedal

1шт.

8

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Front Hex, 7/16"-14 x 1 1/4", G5, Full Thd

1шт.

9

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Rear Hex, 7/16"-14 x 2", G5

1шт.

10

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

2шт.

11

25-107

NUT,7/16"-14, G5

- hex (7/16" - 14 NC)

2шт.

12

11030

SCREW

PEDAL - clutch

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - straight grease drive type

1шт.

13

11031

SPACER

BUSHING - clutch pedal

1шт.

14

11470

BEARING

ANCHOR - spring clutch pedal return

1шт.

15

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

D26521

ROD - clutch

1шт.

18

30623

KIT

PIN - yoke

1шт.

19

30622

KIT

- spring clutch pedal return

1шт.

20

132-48

COTTER PIN,1/8" x 1"

PIN - cotter (1/8" x 7/8")

2шт.

21

25-118

NUT,1/2"-20, G5

- hex (1/2" - 20 NF

1шт.

22

213-50

ADJUSTABLE CLEVIS,1/2"-20 x 4 3/16"

YOKE - end adjustable (1/2" - 20 NP)

1шт.

23

O2499AB1

X

PIN - yoke

1шт.

24

132-48

COTTER PIN,1/8" x 1"

PIN - cotter (1/8" x 7/8")

1шт.

25

11469

SPRING

- clutch pedal return

1шт.

26

D26468

LEVER - steering R.H.

1шт.

27

D26469

LEVER - steering L.H.

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - straight grease drive type

2шт.

28

31400

CLAMP

GRIP - rubber steering lever

2шт.

29

13-960

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

HHCS - 9/16" - 12 NC x 3-3/4"

2шт.

30

195-37

WASHER,9/16"

- plain (19/32" I.D. x 1-3/16" O.D. x 1/8" thick)

2шт.

31

86516614

COVER

- steering lever

2шт.

32

92-9

BEARING WASHER,9/16"

med. sect. 9/16"

2шт.

33

33604

RATCHET

- steering lever

2шт.

34

36880

SPARE PART

STOP - ratchet

2шт.

35

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8" - 24 NP x 1-1/2"

2шт.

36

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam (3/8" - 24NF)

2шт.

37

11025

BELT, TRANSMISSION

BRACKET - mounting brake pedal

1шт.

38

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

39

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

2шт.

40

25-107

NUT,7/16"-14, G5

- hex (7/16" - 14 NC)

2шт.

41

D25210

PEDAL - brake

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - straight grease drive type

1шт.

42

11031

SPACER

BUSHING - brake pedal

2шт.

43

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

HHCS - 5/8" - 11 NC x 4-1/2"

1шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

45

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" O.D. x 3/32")

1шт.

46

D25249

ROD

- brake pedal to brake shaft

1шт.

47

NLS

NO LONGER SERVICED

- spring brake pedal return

1шт.

48

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

49

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - end adjustable (1/2" - 20 NP)

1шт.

50

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

51

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

52

11469

SPRING

- return brake pedal

1шт.

53

D25240

SHAFT - brake

1шт.

54

D25269

BLOCK

- bearing brake shaft

2шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2° (1/8" NPT)

2шт.

55

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

56

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

2шт.

57

D25264

ROD - brake, Serial Range: shaft-transmission

2шт.

58

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24NF)

2шт.

59

11471

NUT

- steering rod

2шт.
