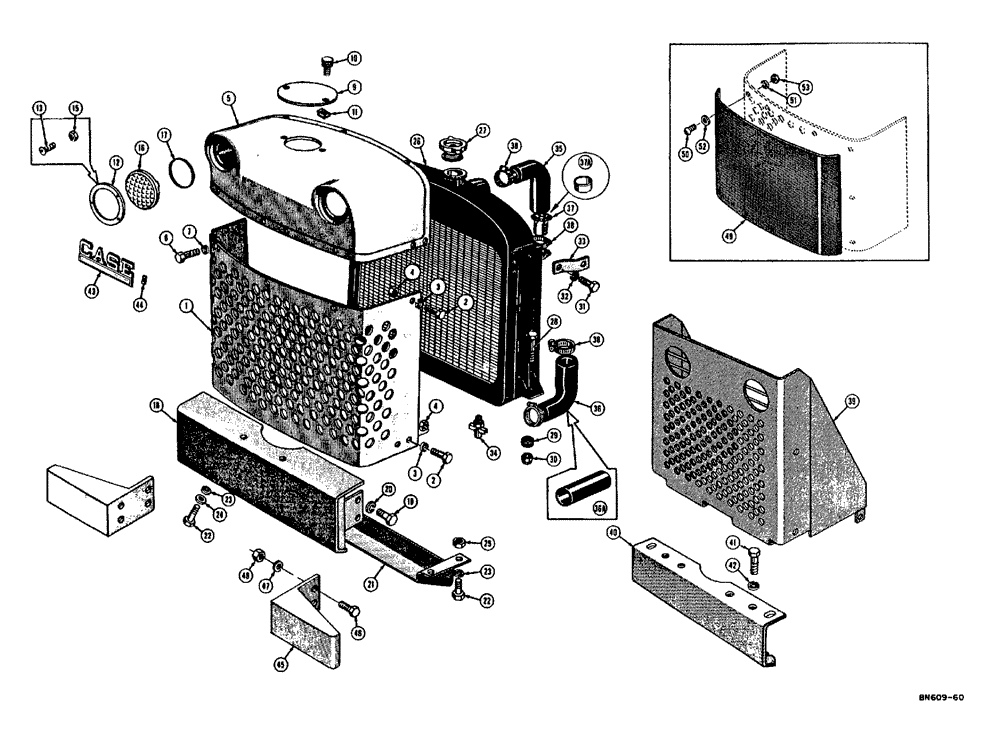

Запчасти Case 310E (039) - RADIATOR, THERMOSTAT, GRILLE CAP, AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D26527

GRILLE - radiator

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

6шт.

4

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

6шт.

5

D21966

CAP - grille

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

3шт.

9

D21310

COVER - access radiator cap

1шт.

10

G16716

X

SCREW - knurled head

2шт.

11

131-102

SPRING NUT,Ret, 1/4"-20

Tinnerman Ret, 1/4"-20

2шт.

12

A11275

RING

- headlight retaining

2шт.

13

173-249

SCREW

RHMS - zinc plated (#6 - 32 NC x 3/4")

6шт.

15

129-15

NUT,#6-32

6шт.

16

A11280

LAMP

LIGHT - head 12 volt (Mfr's #4411)

2шт.

17

A11276

GASKET

- headlight

2шт.

18

D27138

BUMPER - front

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

4шт.

21

36979

SPACER

SUPPORT - bumper

1шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

23

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

8шт.

24

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

4шт.

25

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

6шт.

26

D21839

RADIATOR - Gas models only, Includes: Ref. 27

1шт.

27

D25826

CAP

- pressure radiator (7 PSI)

1шт.

26

D26522

RADIATOR - Diesel models only, Includes: Ref. 27

1шт.

27

D25826

CAP

- pressure radiator (7 PSI)

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

29

D23003

SHOCK ABSORBER

WASHER - vibration

2шт.

30

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

2шт.

31

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

(Gas models only) Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Diesel models only)

2шт.

32

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

2шт.

D22988

WASHER

- vibration (Diesel models only) not shown

2шт.

33

D27033

SUPPORT - radiator (Gas models only)

2шт.

D27991

SUPPORT - radiator (Diesel models only) not shown

2шт.

34

217-92

COCK

drain - radiator

1шт.

35

D21961

HOSE,1.75" ID x 5.13", SAE 20R4

RADIATOR HOSE, , Inlet (Gas Models Only) 1.75" ID x 5.13", SAE 20R4

1шт.

D26526

HOSE,2.13" ID x 4.81", SAE 20R4

RADIATOR HOSE, , Inlet, Upper (Diesel Models Only) (Not Shown) 2.13" ID x 4.81", SAE 20R4

1шт.

36

D21960

HOSE,1.75" ID x 4.56", SAE 20R4

RADIATOR HOSE, , Outlet (Gas Models Only) 1.75" ID x 4.56", SAE 20R4

1шт.

36a

D26525

HOSE

- radiator outlet (Diesel models only)

1шт.

37

G11065

CASE

THERMOSTAT - Diesel models only (Original equipment on Diesel models up to eng. ser. #2000157) see G37089 timing gear cover, thermostat, and water outlet assy., Fig. 23 to acquire P/N of the thermostat used on Diesel models w/eng. ser. # 2000157 and after

1шт.

G10235

THERMOSTAT

- Gas models only

1шт.

37a

G49625

SUPPORT

SLEEVE - thermostat retaining (Diesel models only) used up to engine serial #2000157 (See G11065)

1шт.

38

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(5 required on all Gas models 6 required on Diesel models up to engine serial #2000157 and 4 required on Diesel models with engine serial #2000157 and after) #36, 1.81/2.75 Type F Worm

5-6-4шт.

39

D27231

GUARD - brush (Not applicable on Loader models) optional equipment

1шт.

40

D23233

BUMPER - front used with brush guard (Not applicable on models equipped with crankcase guards and front weights) optional equipment

1шт.

D23230

PLATE - mounting brush guard (Not shown)

1шт.

41

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

42

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

4шт.

43

A11492

X

MEDALLION - Case emblem

1шт.

44

A11319

X

CLIP - retainer name plate

2шт.

205-4

X

PLUG - button (7/32" dia.) unused holes in grille cap (Not shown)

2шт.

45

D23396

EXTENSION - bumper (Optional equipment)

2шт.

46

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

8шт.

47

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

8шт.

48

25-118

NUT,1/2"-20, G5

- hex (1/2" - 20 NF)

8шт.

49

D11170M

SCREEN - grille (Optional equipment), Includes: Ref. 50 - 53

1шт.

50

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

8шт.

51

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

52

95-4

WASHER,1/4"

- standard wrot (5/16" I.D. x 3/4" O.D. x 1/16" thick)

8шт.

53

25-104

NUT,1/4"-20, G5

8шт.
