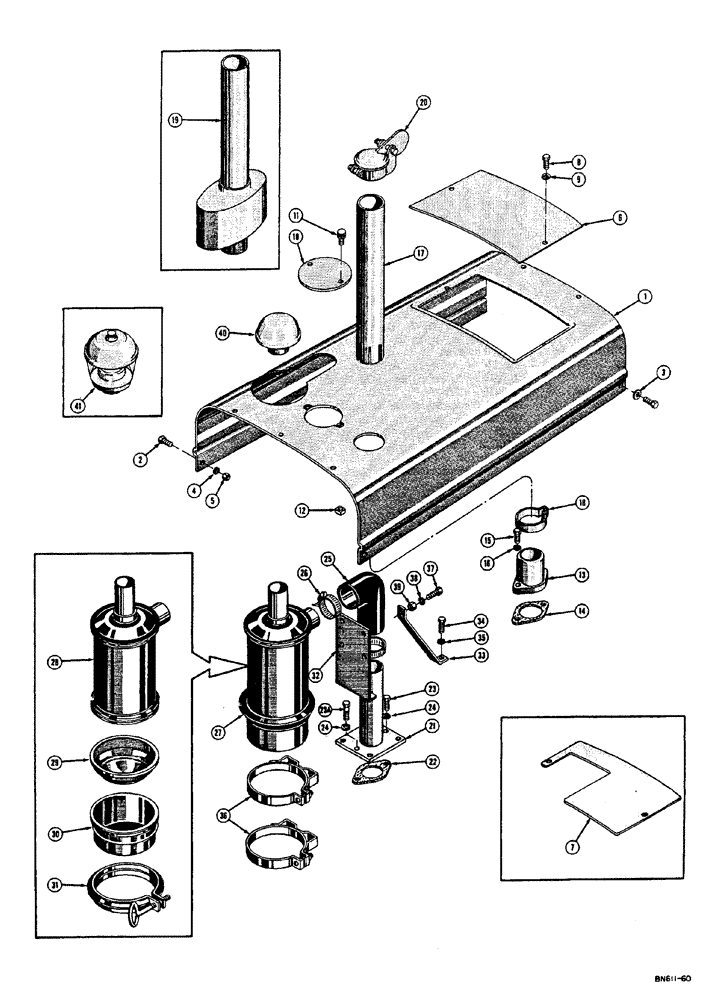

Запчасти Case 310E (038) - HOOD, EXHAUST SYSTEM, AND AIR CLEANER - DIESEL (05) - UPPERSTRUCTURE CHASSIS

1

D26649

HOOD - engine

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

9шт.

3

95-6

WASHER,3/8"

- standard wrot (13/32" I.D. x 13/16" O.D. x 5/64" thick)

4шт.

4

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

9шт.

5

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

9шт.

6

GI33522

CLIP

COVER - access instrument panel back (See D20370)

1шт.

7

D20370

COVER - access instrument panel back (Loader models only) see 33522

1шт.

8

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - zinc plated (1/4" - 28 NF x 1/2")

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

D21310

COVER - access oil filler cap

1шт.

11

G16716

X

SCREW - knurled head

2шт.

12

131-102

SPRING NUT,Ret, 1/4"-20

Tinnerman Ret, 1/4"-20

2шт.

13

D22864

OUTLET

- exhaust (See D29308)

2шт.

D29308

OUTLET

- exhaust (Used with spark arresting muffler only) see D22864

1шт.

14

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

2шт.

17

D26989

PIPE - exhaust

1шт.

18

G45767

X

CLAMP - exhaust pipe and muffler

1шт.

19

D27275

MUFFLER

- exhaust under hood (Optional) see D29307

1шт.

D29307

X

MUFFLER - exhaust under hood (Spark arresting) optional (See D27275)

1шт.

20

D28028

CAP

CAP - rain (Use D28029)

1шт.

28029

CAP - rain (See 10944)

1шт.

21

D27998

INLET - air intake manifold

1шт.

22

D22670

GASKET

- intake manifold air inlet

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

23a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

2шт.

25

D28030

ELBOW UNION

ELBOW - hose air cleaner to intake manifold air inlet

1шт.

26

D22826

X

CLAMP - hose (Use 214-260)

3шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

3шт.

27

D22671

X

AIR CLEANER - complete, Includes: Ref. 38 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

29

G46324

CUP

- oil inner

1шт.

30

G46325

CUP

- oil outer

1шт.

31

G45153

CLAMP

- retaining oil cup

1шт.

32

D27995

BRACKET - mounting air cleaner

1шт.

33

D27997

BRACE - air cleaner bracket

2шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

35

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

36

D28031

BAND - mounting air cleaner

2шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

38

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

39

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

4шт.

40

D22685

CAP

- inlet air cleaner

1шт.

41

D20604

PRECLEANER

PRE-CLEANER, (Optional)

1шт.
