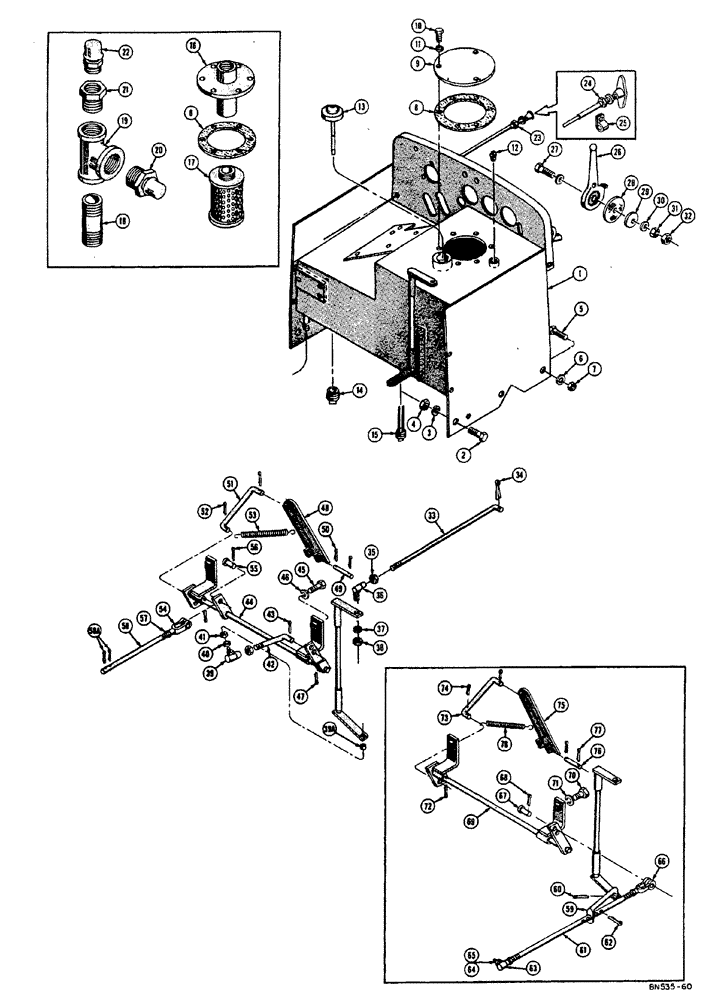

Запчасти Case 310E (036) - COWL, DASH, AND THEOTTLE CONTROL (05) - UPPERSTRUCTURE CHASSIS

1

D26652

COWL AND DASH - use D27295

1шт.

D27295

COWL AND DASH

1шт.

2

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC) used with D26652 cowl and dash only

2шт.

5

77-812

THMS - 1/2" - 13 NC x 3/4"

2шт.

6

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

7

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

2шт.

8

36321

GASKET

- filter hole cover

1шт.

9

37758

HOSE

COVER - filter hole (Models with no hydraulic system only - see D26685)

1шт.

10

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

3шт.

11

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

3шт.

12

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe 1/4" NPT square head (Models with no hydraulic system only - see 221-130 221-431 R155

1шт.

13

35072

CAP - filler (Dipstick, Serial Range: welded-cap)

1шт.

14

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, 1-1/4" NPT square head

1шт.

15

D21397

PLUG - magnetic 3/4" NPT square head

1шт.

16

26685

CAP - oil filter inlet

1шт.

17

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

18

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe 1/4" NPT x 7/8"

1шт.

19

221-431

TEE

- female pipe 1/4" NPT x 1/4" NPT x 3/8" NPT

1шт.

20

R15538

VALVE

- relief vacuum (2 to 5 PSI)

1шт.

21

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex pipe 1/4" NPT x 1/8" NPT

1шт.

22

R15536

VALVE

- relief pressure (10 to 20 PSI)

1шт.

23

D27165

CONTROL - choke (Gas models only)

1шт.

24

D26791

CONTROL - engine shut off (Diesel models only)

1шт.

25

O2825AB

X

CLAMP - engine shut off control (Diesel models only)

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

O2825AB clamp, not shown Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Not shown 1/4"

1шт.

26

A8982

LEVER - throttle control

1шт.

27

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

28

O6320AB

X

DISC - friction throttle control lever

1шт.

29

D25757

WASHER

- Belleville Spring (5/16" I.D. x 1-3/8" O.D. x 1/16" thick)

1шт.

30

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

1шт.

32

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex jam (5/16" - 18 NC)

1шт.

33

D26784

ROD - throttle control lever to ball joint

1шт.

34

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

35

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam (5/16" - 24 NF)

1шт.

36

D25758

BALL

JOINT - adjustable (5/16" - 24 NF)

1шт.

37

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

38

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

39

D22712

BALL JOINT

GAS MODELS ONLY (REF #39 THRU #58A) BALL JOINT - adjustable (1/4"" - 28 NF), gas models only (Ref. 39 - 58A)

1шт.

39a

D28891

BRONZE BUSHING

BUSHING - D22712 ball joint, gas models only (Ref. 39 - 58A)

1шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Gas models only (Ref. 39 - 58A) 1/4"

1шт.

41

25-114

NUT,1/4"-28, G5

- hex (1/4" - 28 NF), gas models only (Ref. 39 - 58A)

2шт.

42

D27131

LINK

- ball joint to foot throttle pivot shaft, gas models only (Ref. 39 - 58A)

1шт.

43

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Gas models only (Ref. 39 - 58A) 3/32" x 5/8"

1шт.

44

D27128

SHAFT - pivot foot throttle, gas models only (Ref. 39 - 58A)

1шт.

45

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Gas models only (Ref. 39 - 58A) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

46

92-8

LOCK WASHER,1/2"

med. sec., gas models only (Ref. 39 - 58A) 1/2"

2шт.

47

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), , Gas models only (Ref. 39 - 58A) 1/8" x 7/8"

3шт.

48

D26782

PEDAL - accelerator, gas models only (Ref. 39 - 58A)

1шт.

49

D26772

PIN - accelerator pedal to floor plate, gas models only (Ref. 39 - 58A)

1шт.

50

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Gas models only (Ref. 39 - 58A) 3/32" x 5/8"

2шт.

51

D27336

PIN - accelerator pedal to foot throttle pivot shaft, gas models only (Ref. 39 - 58A)

1шт.

52

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Gas models only (Ref. 39 - 58A) 3/32" x 5/8"

2шт.

53

32230

X

SPRING - throttle return, gas models only (Ref. 39 - 58A)

1шт.

54

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - end adjustable, gas models only (Ref. 39 - 58A)

1шт.

55

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, gas models only (Ref. 39 - 58A)

1шт.

56

132-4

PIN - cotter (1/16" x 7/16"), gas models only (Ref. 39 - 58A)

1шт.

57

25-114

NUT,1/4"-28, G5

- hex (1/4" - 28 NF), gas models only (Ref. 39 - 58A)

1шт.

58

D27130

ROD - throttle, gas models only (Ref. 39 - 58A)

1шт.

58a

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Gas models only (Ref. 39 - 58A) 3/32" x 5/8"

2шт.

59

D26783

LINK

- pivot shaft on cowl to throttle shaft, diesel models only (Ref. 59 - 78)

1шт.

60

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Diesel models only (Ref. 59 - 78) 3/32" x 5/8"

1шт.

61

D26777

ROD - throttle foot throttle pivot shaft to injector pump throttle arm, diesel models only (Ref. 59 - 78)

1шт.

62

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Diesel models only (Ref. 59 - 78) 3/32" x 5/8"

1шт.

63

D22712

BALL JOINT

- adjustable (1/4" - 28 NF), diesel models only (Ref. 59 - 78)

1шт.

64

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Diesel models only (Ref. 59 - 78) 1/4"

1шт.

65

25-114

NUT,1/4"-28, G5

- hex (1/4" - 28 NF), diesel models only (Ref. 59 - 78)

3шт.

66

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - end adjustable (1/4" - 28 NF), diesel models only (Ref. 59 - 78)

1шт.

67

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, diesel models only (Ref. 59 - 78)

1шт.

68

132-4

PIN - cotter (1/16" x 7/16""), diesel models only (Ref. 59 - 78)

1шт.

69

D26765

SHAFT - pivot foot throttle, diesel models only (Ref. 59 - 78)

1шт.

70

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Diesel models only (Ref. 59 - 78) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

71

92-8

LOCK WASHER,1/2"

med. sec., diesel models only (Ref. 59 - 78) 1/2"

2шт.

72

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), , Diesel models only (Ref. 59 - 78) 1/8" x 7/8"

1шт.

73

D26778

LINK - foot throttle pivot shaft to accelerator pedal, diesel models only (Ref. 59 - 78)

1шт.

74

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Diesel models only (Ref. 59 - 78) 3/32" x 5/8"

2шт.

75

D26782

PEDAL - accelerator, diesel models only (Ref. 59 - 78)

1шт.

76

D26772

PIN - accelerator pedal to floor plate, diesel models only (Ref. 59 - 78)

1шт.

77

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Diesel models only (Ref. 59 - 78) 3/32" x 5/8"

2шт.

78

32230

X

SPRING - throttle return, diesel models only (Ref. 59 - 78)

1шт.
