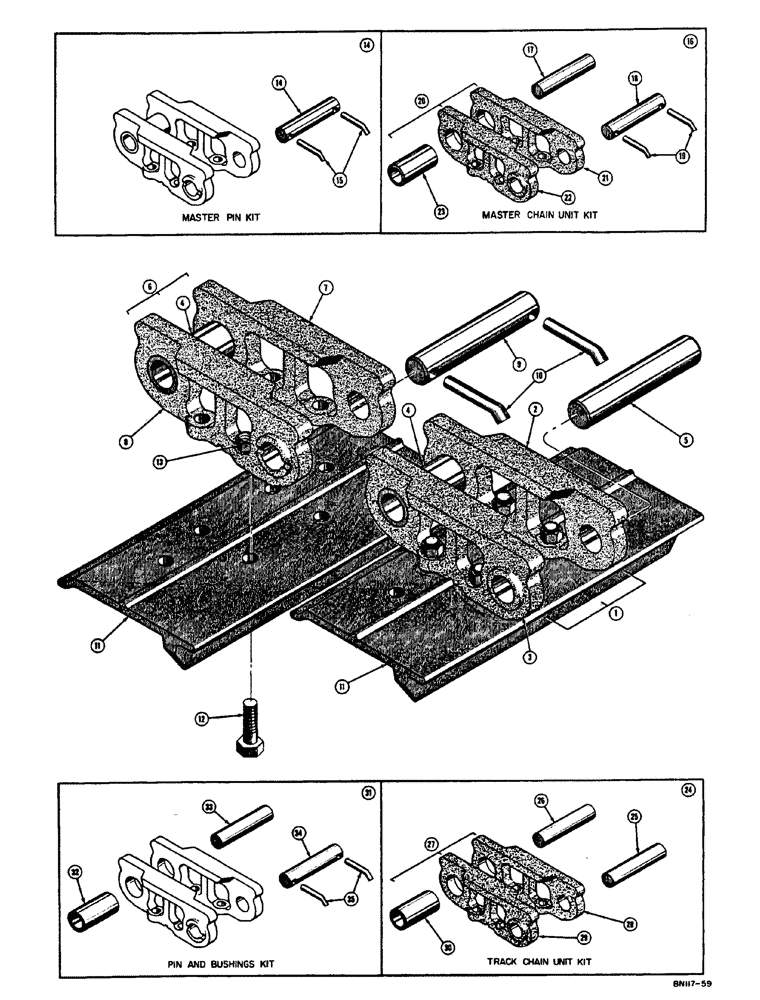

Запчасти Case 310E (062) - TRACK CHAIN (04) - UNDERCARRIAGE

5481

CHAIN - 15 unit, complete (4 roller track only), Includes: Ref. 1 - 10

2шт.

5482

CHAIN - 16 unit, complete (4 and 5 roller track), Includes: Ref. 1 - 10

2шт.

D11810

CHAIN - 17 unit, complete (5 roller track only), Includes: Ref. 1 - 10

2шт.

1

34571

KIT

UNIT - track chain (See D21014), Includes: Ref. 2 - 4

14-16шт.

2

30638

X

LINK - track chain R.H. (See D21014)

1шт.

3

R41049

DRAG LINK

LINK - track chain L.H. (See D21014)

1шт.

4

NLS

NO LONGER SERVICED

- track chain (See D21014)

1шт.

5

32831

PIN

- track, standard (See D21014; also see Ref. 17 and 33

14-16шт.

6

34589

X

UNIT - master (See 021013), Includes: Ref. 7 - 8A

1шт.

7

R41050

LINK

- master R.H. (See D21013)

1шт.

8

33286

LINK

- master L.H. (See D21013)

1шт.

8a

32830

BUSHING

- track chain (See D21013 D21014 and D21015)

1шт.

9

D21012

PIN

- master (See Ref. 14), Includes: Ref. 10

1шт.

10

CASCASCASCASCASCAS32995

PIN - lock master pin

2шт.

11

32882

VALVE

PLATE - grouser 14" (Standard on all Models except Loader Models) see 32913 and 32915 (See figure 63 for optional track plates)

62шт.

14

D21012

PIN

KIT - master, Includes: Ref. 15

4шт.

15

CASCASCASCASCASCAS32995

KIT - lock master

2шт.

16

D21013

KIT

- master chain unit - track master, Includes: Ref. 17 - 23

4шт.

17

32836

PIN

- track service (.003 oversize), master chain unit kit

1шт.

18

D21012

PIN

- master, Includes: Ref. 19, chain unit kit

1шт.

For service order 51200222 or see Ref 36

1шт.

19

CASCASCASCASCASCAS32995

PIN - lock, master chain unit kit

2шт.

20

34589

X

UNIT - master, Includes: Ref. 21 - 23, chain kit

1шт.

21

R41050

LINK

- master R.H., chain unit kit

1шт.

22

33286

LINK

- master L.H., chain unit kit

1шт.

23

NLS

NO LONGER SERVICED

- track chain, master unit kit

1шт.

24

D21014

KIT

- track chain unit

58-62шт.

25

32831

PIN

- track standard, chain unit kit

1шт.

26

32836

PIN

- track service (.003 oversize), chain unit kit

1шт.

27

34571

KIT

UNIT - track chain

1шт.

28

30638

X

LINK - track chain R.H. (See D21014), unit kit

1шт.

29

R41049

DRAG LINK

LINK - track chain L.H., unit kit

1шт.

30

32830

BUSHING

- track chain unit kit

1шт.

31

D11883

KIT - bushings (4 Roller Track - see D11884), kit, Includes: Ref. 32 - 35

1шт.

32

NLS

NO LONGER SERVICED

- track chain, pins kit

62шт.

33

32836

PIN

- track service (.003 oversize), bushings kit

58шт.

34

D21012

PIN

- master, bushings kit, Includes: Ref. 35

4шт.

35

CASCASCASCASCASCAS32995

PIN - lock master pin, bushings kit

2шт.

31

D11884

KIT

- pins and bushings (5 Roller Track - see D11883)

1шт.

32

32830

BUSHING

- track chain

62шт.

33

32836

PIN

- track service (.003 oversize)

66шт.

34

D21012

PIN

- master, Includes: Ref. 35

4шт.

35

CASCASCASCASCASCAS32995

PIN - lock master

2шт.

36

51200222

AXLE PIN

Pin

1шт.
