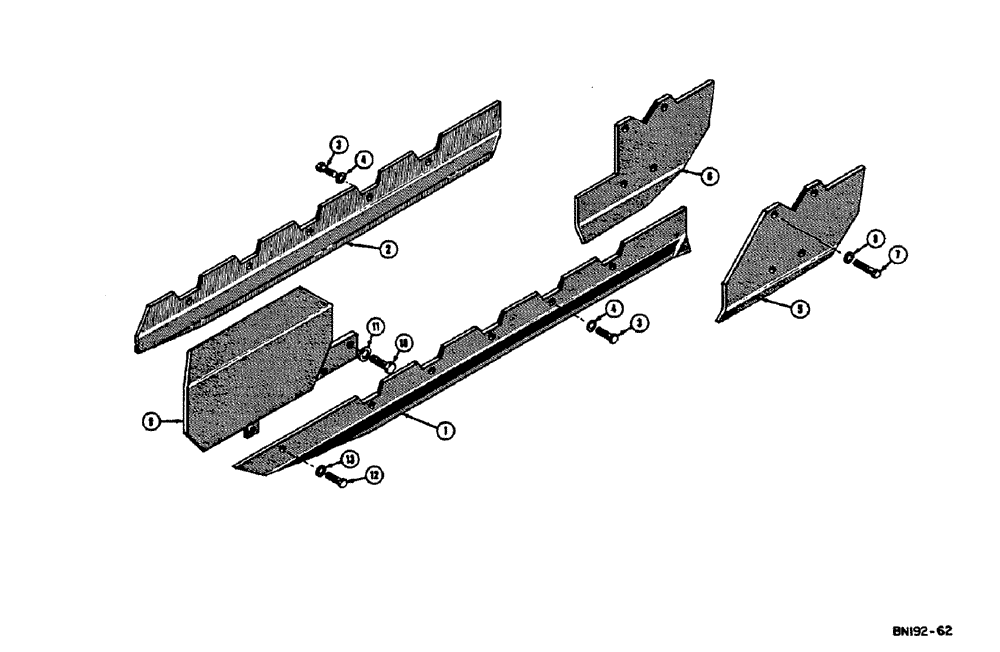

Запчасти Case 310E (061) - ROCK GUARDS (5 ROLLER TRACK) (04) - UNDERCARRIAGE

1

D29063

SPARE PART rock, outer, R.H.

1шт.

D29064

SPARE PART rock, outer, L.H.

1шт.

2

D29065

SPARE PART inner, R.H.

1шт.

D29066

SPARE PART inner, L.H.

1шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

20шт.

4

92-8

LOCK WASHER,1/2"

20шт.

5

D29067

SPARE PART outer idler (R.H.)

1шт.

D29068

SPARE PART outer idler (L.H.)

1шт.

6

D29069

SPARE PART rock, inner idler (R.H.)

1шт.

D29070

SPARE PART inner idler (L.H.)

1шт.

7

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

D29071

SPARE PART sprocket R.H.

1шт.

D29072

SPARE PART rock, sprocket L.H.

1шт.

10

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

11

92-12

LOCK WASHER,3/4"

4шт.

12

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.
