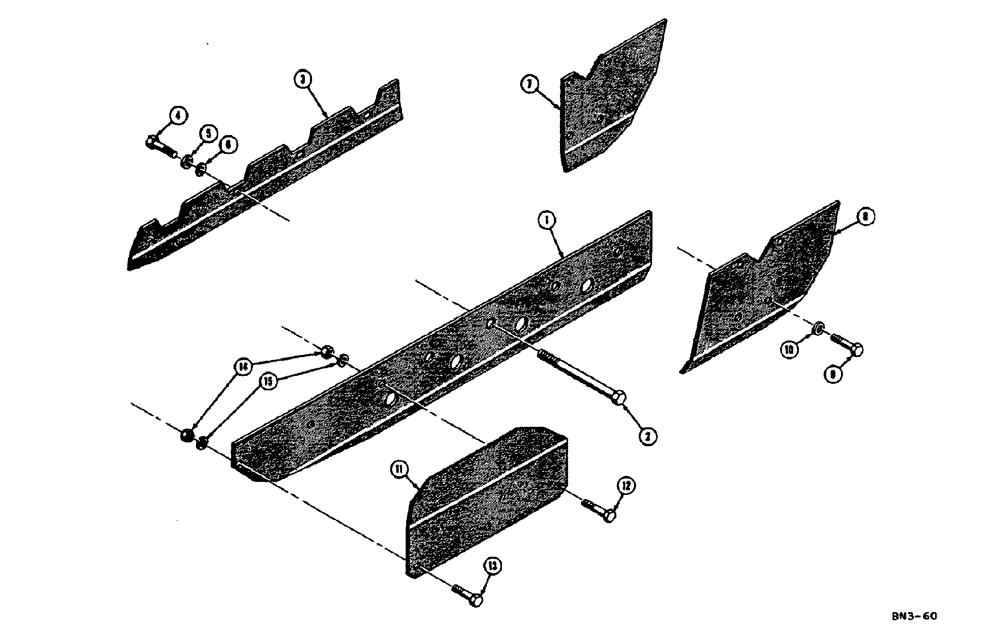

Запчасти Case 310E (059) - ROCK GUARDS (4 ROLLER TRACK) (04) - UNDERCARRIAGE

1

33952

SUPPORT

ROCK GUARD - outer R.H.

1шт.

33953

BRACKET

ROCK GUARD - outer L.H.

1шт.

2

D23459

SPARE PART HHCS - 3/4" - 16 NF x 11-1/8"

8шт.

3

33950

CONNECTING LINK

ROCK GUARD - inner R.H.

1шт.

33951

HYDRAULIC PUMP

GUARD - rock, inner L.H.

1шт.

4

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

8шт.

5

195-33

WASHER,1/2"

plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

8шт.

6

92-8

LOCK WASHER,1/2"

8шт.

7

33892

SPARE PART rock, idler inner (R.H.)

1шт.

33893

SPARE PART rock, idler inner (L.H.)

1шт.

8

33890

WASHER

GUARD - rock, idler outer (R.H.)

1шт.

33891

GROOVED BUSHING

GUARD - rock, idler outer (L.H.)

1шт.

9

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 UP x 2"

8шт.

10

195-33

WASHER,1/2"

WASHER - plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

8шт.

11

32296

PLATE - sprocket guard

2шт.

12

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

2шт.

13

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4"

4шт.

14

25-118

NUT,1/2"-20, G5

hex (1/2" - 20 NF)

6шт.

15

92-8

LOCK WASHER,1/2"

6шт.
