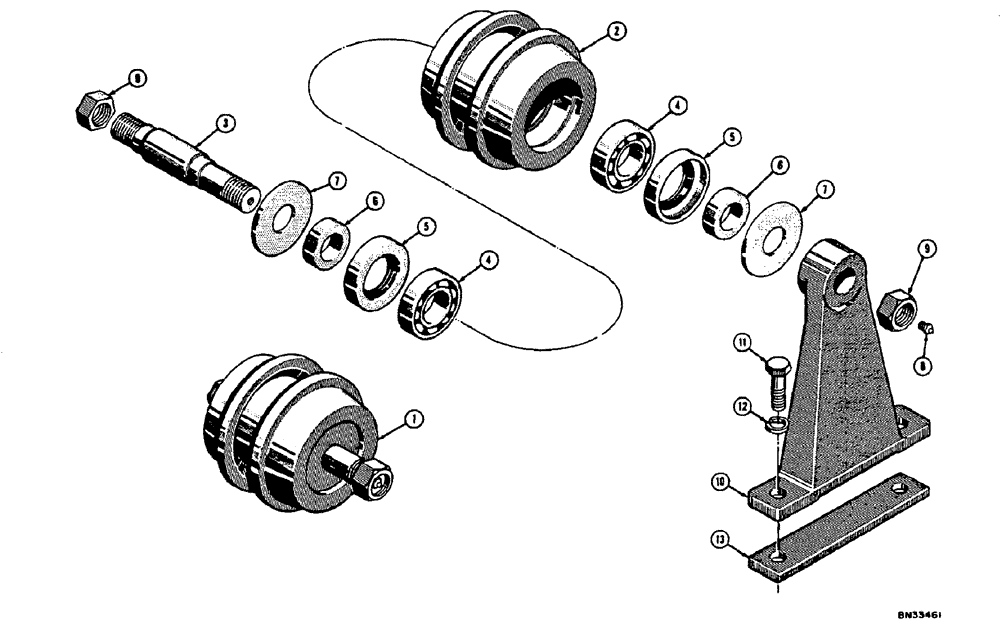

Запчасти Case 310E (057) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

1

D11664

CARRIER

ROLLER - track complete (Original equipment on tractors serial #3018001 and after) see 37430, Includes: Ref. 2 - 9

2шт.

2

31163

ROLLER

HUB - track carrier

1шт.

D11585

ROLLER

KIT - service, Includes: Ref. 3 - 9

1шт.

3

30707

SHAFT

- track carrier roller

1шт.

4

VT2893

X

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - 4 lip

2шт.

6

D29133

SPACER

- bearing

2шт.

7

D29134

SHIELD

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease straight (1/8" NPT)

1шт.

9

131-370

LOCK NUT

NUT - (1 - 14 NF)

2шт.

10

30718

BRACKET

- support track carrier roller

2шт.

11

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

D27036

SPACER - track carrier roller

2шт.
