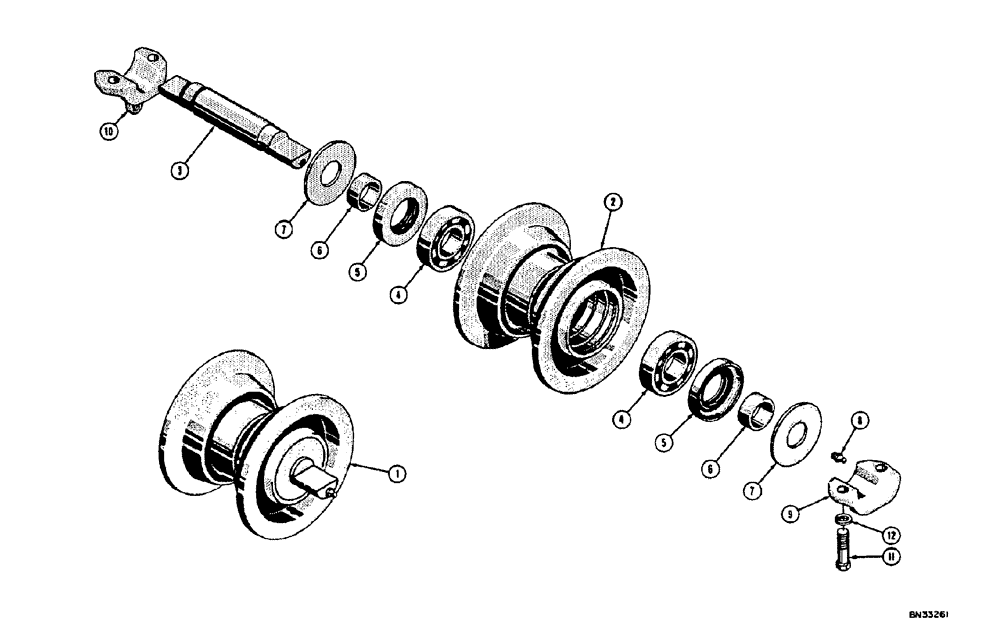

Запчасти Case 310E (055) - TRACK ROLLER (BACKHOE MODELS) (04) - UNDERCARRIAGE

1

D29137

SPARE PART ROLLER - track rear (Backhoe models only) original equipment on Backhoe tractors serial #3018001 and after (See 37431), Includes: Ref. 2 - 8

2шт.

2

31828

SPARE PART HUB - track roller

1шт.

D11584

KIT

service, Includes: Ref. 3 - 8

1шт.

3

32056

SHAFT

track roller

1шт.

4

40201

BALL BEARING,1.375" ID x 2.8346" OD x 1.0625"

ball double row

2шт.

5

D29138

OIL SEAL

4 lip

2шт.

6

D29133

SPACER

bearing

2шт.

7

D29134

SHIELD

bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

32055

BOX

track roller outer (4 roller track only)

2шт.

10

51200225

CAP

BOX - track roller inner (2 used on 4 roller rigid track 4 used on 5 roller rigid track)

2-4шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.
