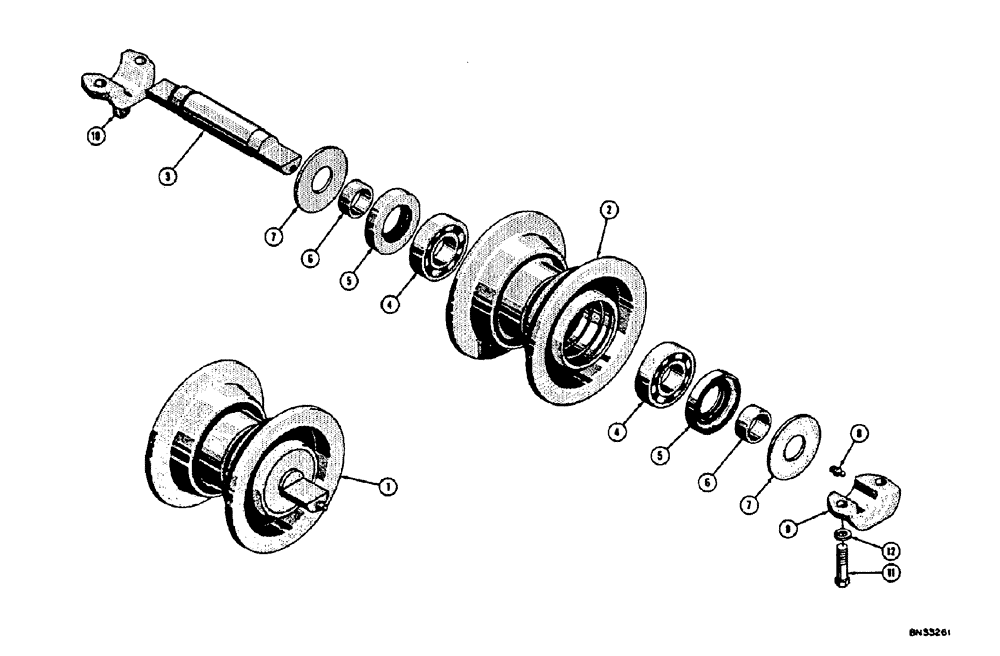

Запчасти Case 310E (053) - TRACK ROLLER (04) - UNDERCARRIAGE

1

D29132

X

ROLLER - track complete (Original equipment on tractor serial #3018001 and after) see 32032 (Also see 37431 heavy duty track roller figure 55), Includes: Ref. 2 - 8

8-10шт.

2

32076

BEARING, ROLLER

HUB - track roller

1шт.

D11583

KIT

- service, Includes: Ref. 3 - 8

1шт.

3

32056

SHAFT

- track roller

1шт.

4

VT2893

X

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - 4 lip

2шт.

6

D29133

SPACER

- bearing

2шт.

7

D29134

SHIELD

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

1шт.

9

32055

BOX

- track roller outer (4 roller track only)

8шт.

10

51200225

CAP

BOX - track roller inner (8 used on 4 roller track 20 used on 5 roller track)

8-20шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2" (32 used on 4 roller track 40 used on 5 roller track)

32-40шт.

12

92-8

LOCK WASHER,1/2"

med. sec. (32 used on 4 roller track 40 used on 5 roller track) 1/2"

32-40шт.
