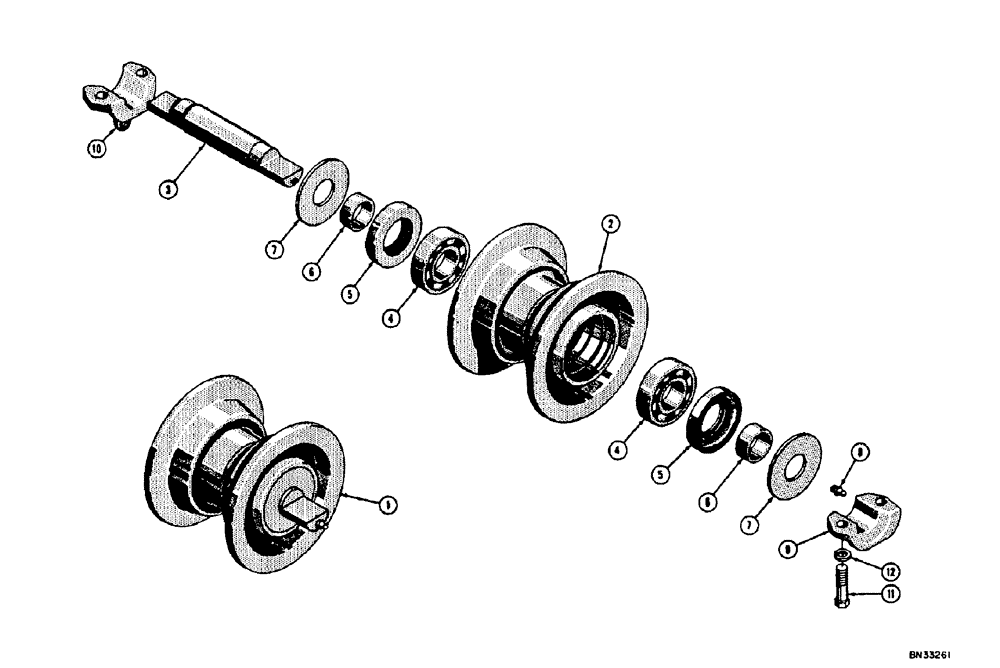

Запчасти Case 310E (052) - TRACK ROLLER (04) - UNDERCARRIAGE

1

32032

X

ROLLER - track complete (Original equipment on tractors up to serial #3018001) when stock is exhausted order D29132 (See 37431 heavy duty track roller figure 54), Includes: Ref. 2 - 8

6-8шт.

2

32076

BEARING, ROLLER

HUB - track roller

1шт.

5923

KIT - service (Use D11583 - see below for breakdown), Includes: Ref. 3 - 8

1шт.

3

32056

SHAFT

- track roller

1шт.

4

VT2893

X

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - 3 lip (When stock is exhausted order D29138)

2шт.

D29138

OIL SEAL

SEAL - 4 lip (See 40633)

2шт.

6

32051

SPACER

- bearing

2шт.

7

30704

BEARING COVER

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

1шт.

9

32055

BOX

- track roller outer

8шт.

10

51200225

CAP

BOX - track roller inner

8шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

32шт.

12

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

32шт.
