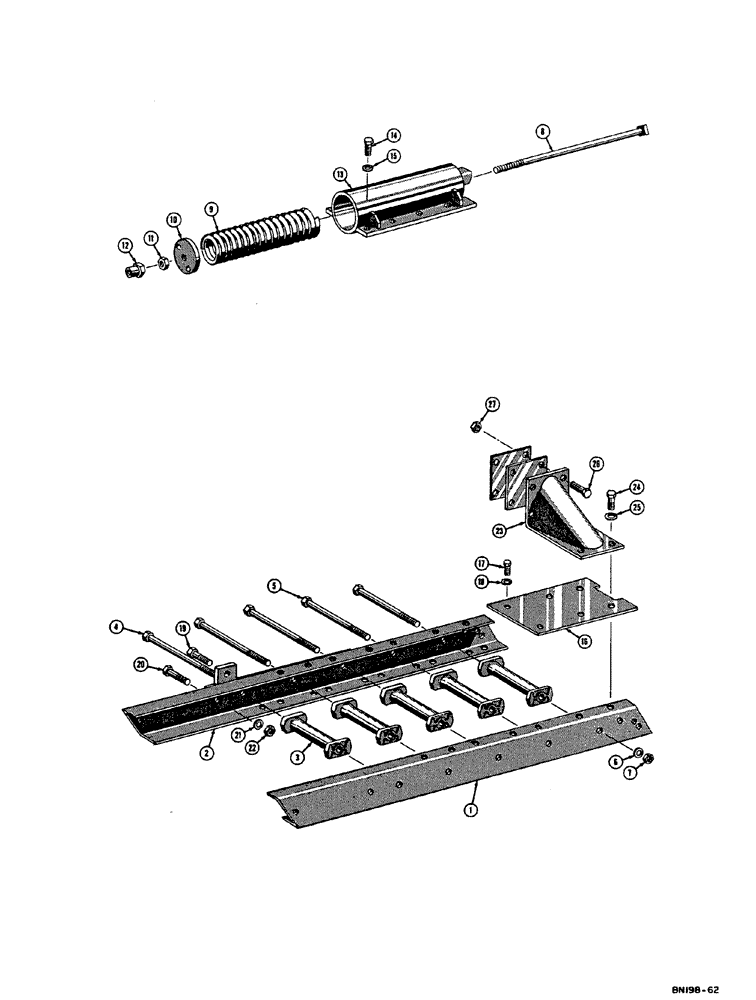

Запчасти Case 310E (051) - TRACK FRAME AND RECOIL SPRING (5 ROLER TRACK) (04) - UNDERCARRIAGE

1

D29052

CHANNEL - track L.H. outer

1шт.

D29051

CHANNEL - track R.H. outer

1шт.

2

D29050

CHANNEL - track L.H. inner

1шт.

D29049

CHANNEL - track R.H. inner

1шт.

3

NLS

NO LONGER SERVICED

SPACER - track channel

10шт.

4

14-12200

BOLT,Hex, 3/4" - 16 x 12-1/2", Gr 5

HHCS - 3/4" - 16 NP x 12-1/2"

6шт.

5

D23459

HHCS - 3/4" - 16 NP x 11-1/8"

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

7

25-1112

NUT,3/4"-16, G5

- hex (3/4" - 16 NF)

10шт.

D29056

X

SPRING - recoil complete, Includes: Ref. 8 - 13

2шт.

8

D20845

ADJUSTMENT SCREW

- track adjusting

1шт.

9

D26084

SPRING

- recoil

1шт.

10

D20844

NUT

- tension adjusting

1шт.

11

25-1416

NUT,Jam, 1"-8, G5

- hex jam (1" - 8 NC)

1шт.

12

D20843

NUT,1" - 8

- track adjusting

1шт.

13

29057

HOUSING - recoil spring

1шт.

14

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

16

D29062

PAN - mud

2шт.

17

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

4шт.

18

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

4шт.

19

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

20

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

22

25-1012

NUT,3/4"-10, G5

4шт.

23

D29059

BRACKET - mounting track frame

2шт.

24

D29758

SHIM,.1875" Thk

Mounting bracket .1875" Thk

1шт.

25

D29759

SHIM,.0747" Thk

Mounting bracket .0747" Thk

1шт.

26

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NP x 1-3/4"

8шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

28

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4" - 16 NP x 2-1/2"

8шт.

29

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NP)

8шт.
