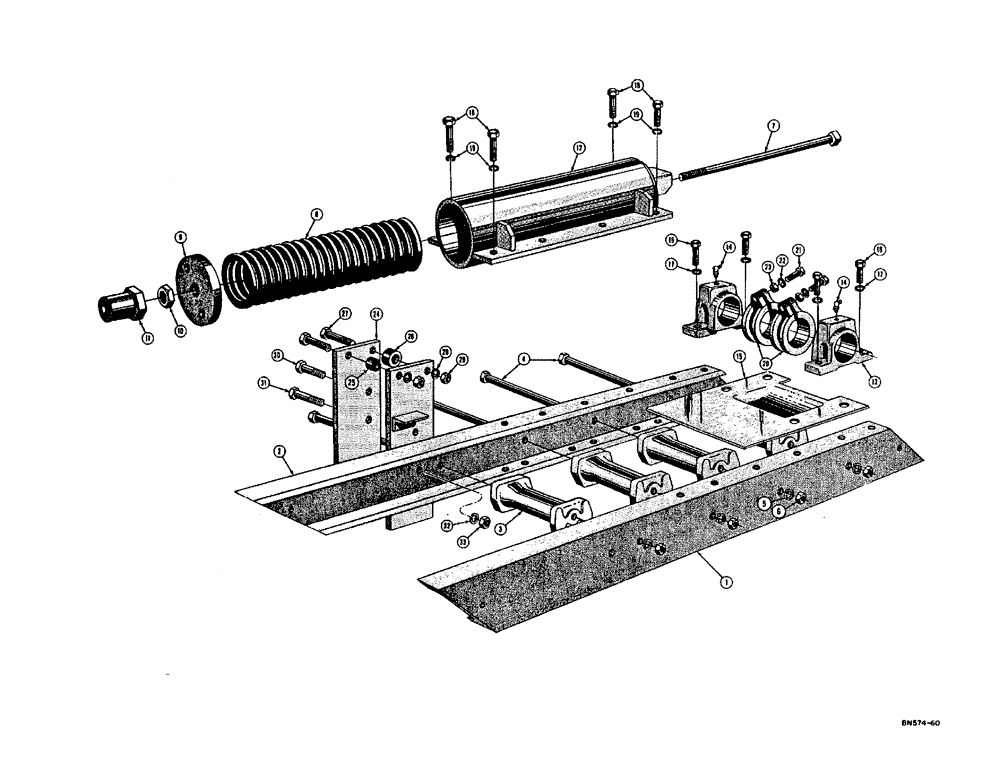

Запчасти Case 310E (050) - TRACK FRAME AND RECOIL SPRING (4 ROLLER TRACK) (04) - UNDERCARRIAGE

1

31833

CHANNEL - track outer (L.H.)

1шт.

31832

CHANNEL - track outer (R.H.)

1шт.

2

33946

COVER PLATE

CHANNEL - track inner (L.H.)

1шт.

D25395

CHANNEL - track inner (L.H.) 36 gauge tractor

1шт.

33945

SPARE PART CHANNEL - track inner (R.H.)

1шт.

D25394

SPARE PART track inner (R.H.) 36 gauge tractor

1шт.

3

NLS

NO LONGER SERVICED

track channel

8шт.

4

D23459

SPARE PART HHCS - 3/4" - 16 NF x 11-1/8"

8шт.

5

92-12

LOCK WASHER,3/4"

8шт.

6

25-1112

NUT,3/4"-16, G5

hex (3/4" - 16 NF)

8шт.

30479

DECAL

SPRING - recoil L.H. (Complete), Includes: Ref. 7 - 12

1шт.

7

D20845

ADJUSTMENT SCREW

track adjusting

1шт.

8

D26084

SPRING

SPARE PART recoil

1шт.

9

D20844

NUT

tension adjusting

1шт.

10

25-1416

NUT,Jam, 1"-8, G5

hex jam (1" - 8 NC)

1шт.

11

D20843

NUT,1" - 8

track adjusting

1шт.

12

32141

FITTING

recoil spring (L.H.)

1шт.

30478

SPRING - recoil R.H. (Complete), Includes: Ref. 7 - 12

1шт.

7

D20845

ADJUSTMENT SCREW

track adjusting

1шт.

8

D26084

SPRING

SPARE PART recoil

1шт.

9

D20844

NUT

tension adjusting

1шт.

10

25-1416

NUT,Jam, 1"-8, G5

hex jam (1" - 8 NC)

1шт.

11

D20843

NUT,1" - 8

track adjusting

1шт.

12

32140

SPARE PART recoil spring (R.H.)

1шт.

13

D27536

BLOCK

pivot

4шт.

14

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

67-1/2° (1/4" NPT)

4шт.

15

32542

SPARE PART PAN - mud

2шт.

16

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4"

8шт.

17

92-12

LOCK WASHER,3/4"

8шт.

18

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

19

92-10

LOCK WASHER,5/8"

12шт.

20

15101

SPARE PART track frame mounting

4шт.

21

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8" - 18 NF x 3"

4шт.

22

92-10

LOCK WASHER,5/8"

4шт.

23

25-1110

NUT,5/8"-18, G5

lock (5/8" - 18 NF)

4шт.

24

32181

PLATE - forward support (Not used with rigid track)

2шт.

33498

PLATE - forward support (36" gauge tractor)

2шт.

25

32182

SPACER - (Not used with rigid track)

6шт.

26

32332

SPACER - (Not used with rigid track)

2шт.

27

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8" - 18 NF x 3" (Used with spring suspension track only) see 13-1240 and 13-1248

8шт.

28

92-10

LOCK WASHER,5/8"

8шт.

29

25-1110

NUT,5/8"-18, G5

hex (5/8" - 18 NF)

8шт.

30

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

(Rigid track only)

2шт.

31

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Rigid track only)

2шт.

32

92-12

LOCK WASHER,3/4"

4шт.

33

25-1012

NUT,3/4"-10, G5

4шт.
