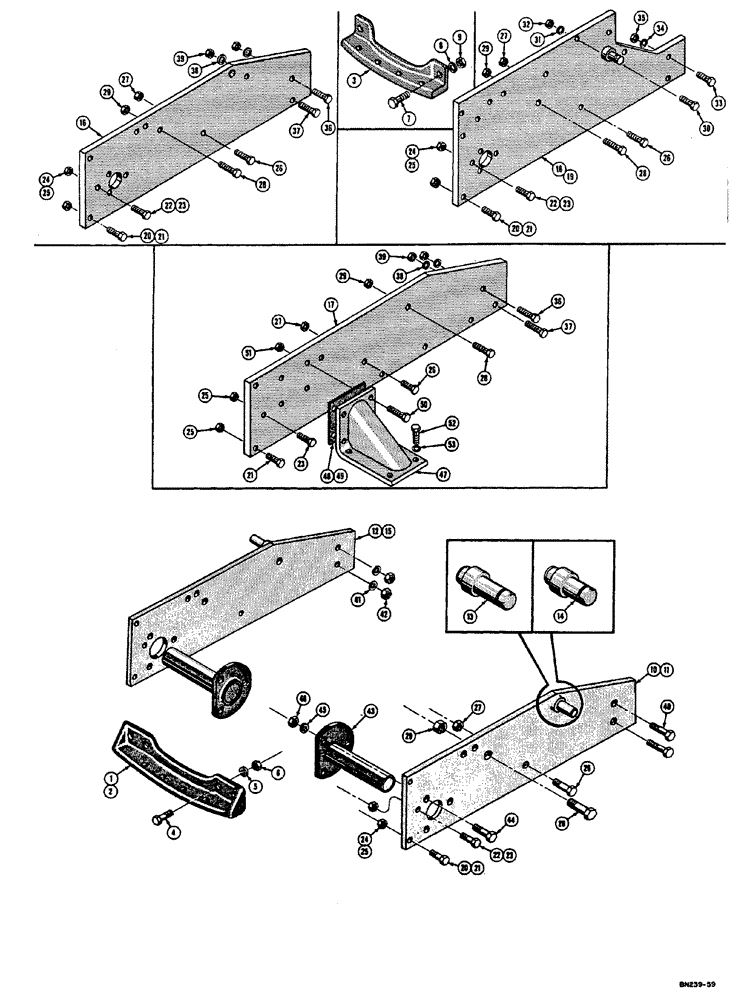

Запчасти Case 310E (049) - SIDE PLATE, PIVOT BAR, AND DRAWBAR GUIDE (04) - UNDERCARRIAGE

1

13103

SPARE PART GUIDE - drawbar (48" wider tractors)

1шт.

2

32419

SPARE PART GUIDE - drawbar (42" gauge tractor)

1шт.

3

32662

RICE TOOTH

GUIDE - drawbar (36" gauge tractor)

1шт.

4

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(13103 and 32419 drawbar guides)

4шт.

5

92-10

LOCK WASHER,5/8"

4шт.

6

25-1110

NUT,5/8"-18, G5

hex (5/8" - 18 NF)

4шт.

7

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4" - 16 NF x 2" (32662 drawbar guide)

2шт.

8

92-12

LOCK WASHER,3/4"

2шт.

9

25-1112

NUT,3/4"-16, G5

hex (3/4" - 16 NF)

2шт.

10

D25523

PLATE - side R.H. (Includes ref #13 or #14) used up to tractor serial #3018001 (When stock is exhausted order 1 - D29732 1 - 14-1240 2 - D29721 and 3 -131-395) see D25107 and D29735

1шт.

11

D29732

PLATE - side R.H. (Used on tractor serial #3018001 and after) includes ref #14 (4 roller track) see D25523 and D29735

1шт.

12

D25524

SPARE PART PLATE - side L.H. (Includes ref #13 or #14) used up to tractor serial #3018001 (When stock is exhausted order 1 - D29733 1 - 14-1240 2 - D29721 and 3 - 131-395) see D25107 and D29735, Includes: Ref. 13 and 14

1шт.

13

D25531

SPARE PART STUD - pivot leaf spring bracket (4" long) used up to tractor serial #3017316 (See D29032)

1шт.

14

D29032

STUD - pivot leaf spring bracket (3-9/16" long) used on tractor serial #3017316 and after (See D25531)

1шт.

15

D29733

SPARE PART PLATE - side L.H. (Used on tractor serial #3018001 and after) includes ref #14 (4 roller track) see D25524 D25107 and D29735

1шт.

16

D25107

PLATE - side 4 roller rigid track (Used on Backhoe Models only up to tractor serial #3018001) see D29735 D25523 D25524 D27932 and D27933

2шт.

17

D29735

PLATE - side 5 roller rigid track (Used on Loader and Backhoe Models only tractor serial #3018001 and after) see D25107 D25523 D25524 D29732 and D29733

2шт.

18

D28780

PLATE - side R.H. (36" gauge tractor)

1шт.

19

D28781

PLATE - side L.H. (36" gauge tractor)

1шт.

20

33046

SPARE PART body fit side plate to inner final drive housing (5/8" - 18 NF x 2-1/2") used up to tractor serial number 3018001 (See D29721)

4шт.

21

D29721

BOLT

body fit side plate to inner final drive housing (3/4" - 16 NF x 2-1/2") used on tractor serial number 3018001 and after (See 33046)

4шт.

22

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - side plate to inner final drive housing (5/8" - 18 NF x 2-1/2") used up to tractor serial number 3018001 (See 14-1240)

2шт.

23

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - side plate to inner final drive housing (3/4" - 16 NF x 2-1/2") used on tractor serial number 3018001 and after (See 14-1240)

2шт.

24

231-46110

LOCK NUT,5/8"-18, GB

lock (5/8" - 18 NF) used up to tractor serial #3018001 (See 131-368)

6шт.

25

230-46112

LOCK NUT,3/4"-16, GA

lock (3/4" - 16 NF) used on tractor serial #3018001 and after (See 131-394)

6шт.

26

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - side plate to torque tube (3/4" - 16 NF x 2-3/4")

2шт.

27

231-46112

LOCK NUT,3/4"-16, GB

lock (3/4" - 16 NF)

2шт.

28

33047

BOLT,Hex, 1" - 14 x 3 3/32"

body fit side plate to torque tube (1" - 14 NF x 3-3/32")

4шт.

29

232-46116

LOCK NUT,1"-14, GC

lock (1" - 14 NF)

4шт.

30

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Side plate to engine frame, 36" gauge tractor

10шт.

31

92-10

LOCK WASHER,5/8"

10шт.

32

25-1110

NUT,5/8"-18, G5

hex (5/8" - 18 NF)

10шт.

33

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

Forward support plate and side plate to track channel, 36" gauge tractor

4шт.

34

92-10

LOCK WASHER,5/8"

4шт.

35

25-1110

NUT,5/8"-18, G5

hex (5/8" - 18 NF)

4шт.

36

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Side plate to track channel, 4 and 5 roller rigid track models only

2шт.

37

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Side plate to track channel, 4 and 5 roller rigid track models only

2шт.

38

92-12

LOCK WASHER,3/4"

4шт.

39

25-1012

NUT,3/4"-10, G5

4шт.

40

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - side plate and forward support plate to track channel (5/8" - 18 NF x 3") used on all mode

8шт.

41

92-10

LOCK WASHER,5/8"

8шт.

42

25-1110

NUT,5/8"-18, G5

hex (5/8" - 16 NF)

8шт.

43

D27542

SPARE PART pivot 4 roller track only (See D29059)

2шт.

44

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4" - 16 NF x 2-1/2"

6шт.

45

92-12

LOCK WASHER,3/4"

6шт.

46

25-1112

NUT,3/4"-16, G5

hex (3/4" - 16 NF)

6шт.

47

D29059

SPARE PART mounting track frame (5 roller track only)

2шт.

48

D29758

SHIM,.1875" Thk

Mounting bracket

1шт.

49

D29759

SHIM,.0747" Thk

Mounting bracket

1шт.

50

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - mounting bracket to side plate (5 roller track only) (3/4" - 16 NF x 3")

8шт.

51

231-46112

LOCK NUT,3/4"-16, GB

lock (3/4" - 16 NF)

8шт.

52

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - mounting bracket to track frame (5 roller track only) (3/4" - 16 NF x 1-3/4")

8шт.

53

92-12

LOCK WASHER,3/4"

8шт.
