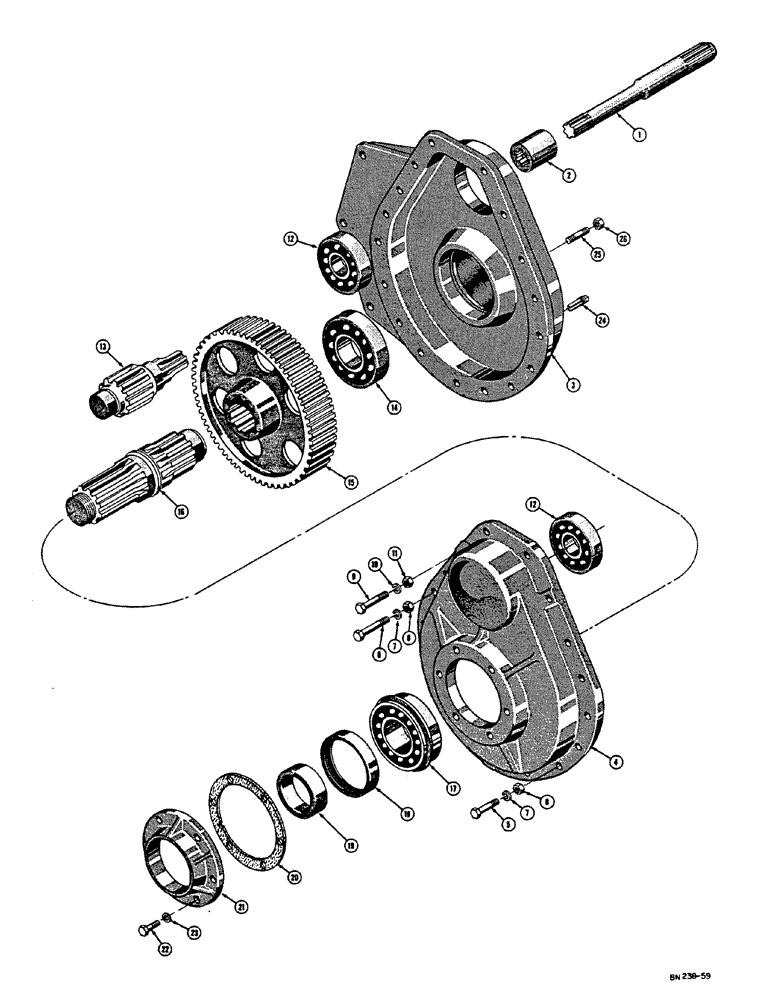

Запчасти Case 310E (047) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

51200025

SHAFT

- axle final drive (Standard 48" gauge tractor) (13-3/16")

2шт.

1

32635

SHAFT - axle final drive (36" gauge tractor) (7-9/32")

2шт.

1

11830-420

SHAFT - axle final drive (42"gauge tractor) (10-3/32")

2шт.

1

11830-600

SHAFT - axle final drive (60" gauge tractor) (19-3/16")

2шт.

1

11830-720

SHAFT - axle final drive (72" gauge tractor) (25-3/16")

2шт.

2

51200026

COUPLING

- final drive (42" gauge and wider tractors)

2шт.

2

32634

COUPLING

- final drive (36" gauge tractor)

2шт.

3

11817

RIVET

HOUSING - final drive L.H. inner (Used up to tractor serial #3018001) when stock is exhausted order 1 - D29737 1 - 14-1240 2 - D29721 and 3 -131-395

1шт.

3

D29737

HOUSING - final drive L.H. inner (Used on tractors serial #3018001 and after) see 11817

1шт.

3

11816

RIVET

HOUSING - final drive R.H. inner (Used up to tractor serial #3018001) when stock is exhausted order 1 - D29736 1 - 14-1240 2 - D29721 and 3 -131-395

1шт.

3

D29736

HOUSING - final drive R.H. inner (Used on tractors serial #3018001 and after) see 11816

1шт.

4

D24658

HOUSING

- final drive outer

2шт.

5

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

18шт.

6

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

10шт.

7

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

28шт.

8

25-107

NUT,7/16"-14, G5

- hex (7/16" - 14 NC)

28шт.

9

D24688

BOLT

BOLT - body fit (1/2" - 13 NC x 2-1/8")

6шт.

10

92-8

LOCK WASHER,1/2"

med. sec. 1/2"

6шт.

11

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

6шт.

12

40002

BALL BEARING

- ball final drive pinion

4шт.

13

51200027

SHAFT

PINION - final drive

2шт.

14

40003

BEARING

- ball final driveshaft (Inner)

2шт.

15

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

16

CAS11853

SHAFT

- final drive

2шт.

17

40039

HINGE

BEARING - ball final driveshaft (Outer)

2шт.

18

40610

TUBE NUT

SEAL - oil final driveshaft (When stock is exhausted order D29517)

2шт.

18

D29517

SEAL

- oil final driveshaft (See 40610)

2шт.

19

51200024

SPACER

- final driveshaft

2шт.

20

CAS11828

GASKET

- seal retainer

2шт.

21

11827

RETAINER

- seal final driveshaft

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

23

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

12шт.

24

D21396

PLUG, DRAIN

PLUG - pipe magnetic (1/2" NPT countersunk head)

4шт.

25

R29874

STUD

- mounting final drive (42" gauge and wider tractors)

16шт.

25

46509

STUD - mounting final drive (36" gauge tractor)

16шт.

26

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NC x 31/32" thick) 42" gauge and wider tractors

16шт.

26

131-154

LOCK NUT,5/8"-18, GA

NUT - lock standard (5/8" - 18 NC) 36" gauge tractor

16шт.
