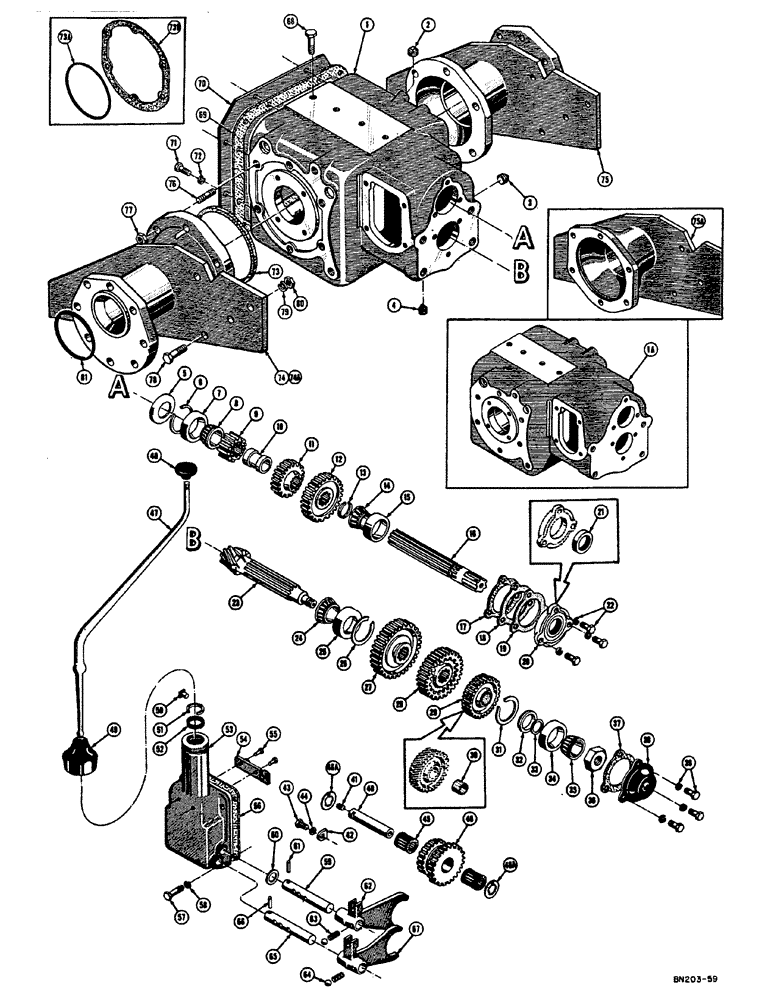

Запчасти Case 310E (046) - TRANSMISSION-DIFFERENTIAL AND FINAL DRIVE SPACERS (03) - TRANSMISSION

D23400

X

TRANSMISSION AND DIFFERENTIAL - complete (Used on tractor serial #3018001) when stock is exhausted, order D29500, Includes: Ref. 1 - 67

1шт.

D29500

X

TRANSMISSION AND DIFFERENTIAL - complete (Used on tractor serial #3018001 and after) see D23400, Includes: Ref. 1 - 67

1шт.

1

11361

BALL BEARING

CASE - transmission (Includes ref #26) D23400 transmission (Has recess in faced surface) when stock is exhausted order D29527 (See 32369 D27642 and D29309)

1шт.

1a

D29527

CASE - transmission (Includes ref #26) D29500 transmission (Has solid faced surface) see D23400, 32

1шт.

2

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe transmission filler (1" NPT square head)

1шт.

3

221-834

X

PLUG - pipe oil level (1/2" NPT extended square head)

1шт.

4

D23217

X

PLUG - pipe magnetic (Drain)

2шт.

5

11371

CUP ASSY.

CUP - oil main shaft rear bearing

1шт.

6

11453

TAPERED BEARING

RING snap - main shaft rear bearing

1шт.

7

O4056TS

CUP

- bearing

1шт.

8

VT3404

X

CONE - bearing

1шт.

9

CAS11363

PINION

GEAR - main shaft low and reverse

1шт.

10

NLS

NO LONGER SERVICED

- main shaft gear

1шт.

11

11365

GEAR

- main shaft second speed

1шт.

12

11366

GEAR

- main shaft constant mesh

1шт.

13

VT2111

X

RING - snap, main shaft front bearing

1шт.

14

VT3404

X

CONE - bearing

1шт.

15

O4056TS

CUP

- bearing

1шт.

16

D33873

MAIN SHAFT

1шт.

17

51200023

GASKET

- main shaft front bearing cap

1шт.

18

11368

SHIM

- main shaft front bearing cap (.005" thick)

1шт.

19

11367

SHIM

- main shaft front bearing cap (.010" thick)

1шт.

D20541

SHIM,.020" Thk

Main shaft front bearing cap (Not shown) .020" Thk

1шт.

20

11369

X

CAP - main shaft front bearing, Includes: Ref. 21

1шт.

21

11370

OIL RESERVOIR

SEAL - oil bearing cap

1шт.

22

23016

CAP

HHCS AND LOCKWASHER - 3/8" - 16 NC x 1"

3шт.

23

R25584

GEAR WHEEL

COUNTERSHAFT AND BEVEL - (Included with differential)

1шт.

24

40384

ROLLER BEARING

CONE

1шт.

25

CAS40385

BEARING

CUP

1шт.

26

11451

RING, SNAP

RING snap - countershaft rear bearing

1шт.

27

11373

BALL BEARING

- countershaft first and reverse

1шт.

28

11374

GEAR

- sliding second and third

1шт.

28

11374GV

DISC

- sliding second and third

1шт.

29

11375

GEAR

AND BUSHING - third, Includes: Ref. 30

1шт.

30

11376

BUSHING

- countershaft third gear

1шт.

31

101-21250

SNAP RING,#250, 2.673", Int

RING snap - countershaft front bearing

1шт.

32

11378

BELLEVILLE WASHER

- retaining countershaft third gear

1шт.

33

11377

X

WASHER - spring countershaft third gear retaining (Use D11205)

1шт.

D11205

SHIM KIT

KIT - pack countershaft third gear retaining

1шт.

D27621

SPACER

WASHER - hardened (1-1/32" I.D. x 1-7/16 O.D. x 3/64" thick)

1шт.

D27618

SHIM,.004" Thk

Steel (Not shown) .004" Thk

2шт.

D27619

SHIM,.007" Thk

Steel (Not shown) .007" Thk

2шт.

D27620

SHIM,.010" Thk

Steel (Not shown) .010" Thk

5шт.

34

O4056TS

CUP

- bearing

1шт.

35

W9651S

CUP ASSY.

CONE - bearing

1шт.

36

11380

NUT

- adjusting countershaft front bearing

1шт.

37

51200023

GASKET

- countershaft front bearing cap

1шт.

38

11381

CAP

- countershaft front bearing

1шт.

39

D20542

X

HHCS AND LOCKWASHER - bearing cap

3шт.

40

34592

SHAFT

ASSY - reverse idler, Includes: Ref. 41

1шт.

41

34594

X

PLUG - pipe slotted headless

1шт.

42

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Reverse idler shaft lock Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

44

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER - Shakeproof lock internal tooth (3/8")

1шт.

45

11450

TAPERED BEARING

BEARING - needle reverse idler

2шт.

46

11383

GEAR

- reverse idler

1шт.

46a

D29626

WASHER

- thrust, reverse idler gear (D29500 transmission only)

2шт.

D28239

CONTROL ASS Y - gear shift complete, Includes: Ref. 47 - 67

1шт.

47

37238

LEVER

- gear shift

1шт.

48

O3501AB

X

KNOB - gear shift lever

1шт.

49

VT2017

X

COVER - dust gear shift lever

1шт.

50

31365

PIN

- stake gear shift lever

1шт.

51

CAS11454

RING, SNAP

RING snap - gear shift lever

1шт.

52

CASCASCAS11393

WASHER - pivot gear shift lever

1шт.

53

37911

SLIDE GUIDE

GUIDE - control, Includes: Ref. 54 and 55

1шт.

54

11389

PLATE

- guide control cover

1шт.

55

45-414

RIVET,But Hd, 1/4" x 7/8"

- button head guide plate to control cover (1/4" x 7/8")

2шт.

56

11391

GASKET

- control cover

1шт.

57

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

58

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

59

11396

ROD

- shift first and reverse

1шт.

60

D28299

WASHER

- spacer first and reverse shift fork

5шт.

61

11398

PIN

- lock first and reverse shift rod (short)

1шт.

62

11400

FORK TEDDER

FORK - shift first and reverse

1шт.

63

11403

SPRING

- mesh lock shift fork

2шт.

64

VT4913

X

BALL - mesh lock shift fork (3/8" dia.) use 211-11

2шт.

211-11

BALL,3/8" Dia

- mesh lock shift fork (.) 3/8" Dia

2шт.

65

11397

ROD

- shift second and third

1шт.

66

11399

PIN

- lock second and third shift rod (Long)

1шт.

67

NLS

NO LONGER SERVICED

FORK - shift second and third

1шт.

68

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16" - 12 NC x 1

4шт.

69

11429

GASKET

- transmission cover plate

1шт.

70

D21185

PLATE

- cover transmission

1шт.

71

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

11шт.

72

92-7

LOCK WASHER,7/16"

med. sect., used up to tractor S/N 3017412 (Use Loctite Grade CV ) 7/16"

11шт.

When reassembling transmission cover plate on tractors prior to serial number 3017412, discard lockwasheres and apply LOCTITE "Grade CV" to mounting bolts, also on Models serial number 3017412 and after, be sure to apply LOCTITE to cover plate mounting volts before installing.

1шт.

73

32369

SEAL

- cork final drive spacer to transmission case (Used with transmission case that has recess in faced surface and any spacer tubes with or without "o" ring groove) see D27642 and D29309

2шт.

73a

D27642

X

SEAL - "o" ring final drive spacer to transmission case (Used with transmission case that has solid faced surface and spacer tube with "o" ring groove) see D32369 and D29309

2шт.

73b

D29309

GASKET

- final drive spacer to transmission case (Used with transmission case that has solid faced surface and spacer tube without "o" ring groove) see 23269 and D27642

2шт.

74

NLS

NO LONGER SERVICED

SPACER - final drive R.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial number 3017316) when stock is exhausted, for Drawbar Models order 1-D29728, 4-14-1228, 4-92-12, and 4-25-1112

1шт.

74

D27640

SPACER - final drive R.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial number 3017316 up to serial number 3018001)

1шт.

D29728

SPACER - final drive R.H. (Standard 48" gauge tractor) has "O" ring groove around inside of faced surface on transmission side (Original equipment on tractors serial number 3018001 and after) se 11966 and D27640

1шт.

74

32658

SPACER - final drive R H (36" gauge tractor) has plain faced surface on transmission side

1шт.

74

11977

ACCUMULATOR

SPACER - final drive R.H. (42" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial number 3018001) when stock is exhausted, order 1 - D29788, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

74

D29788

SEAT

SPACER - final drive R H. (42" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors serial number 3018001 and after) see 11977

1шт.

74

11970

LARGE PLATE

SPACER - final drive R.H. (60" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial number 3018001) when stock is exhausted, order 1 - D29792, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

74

D29792

X

SPACER - final drive R H (60" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors serial number 3018001 and after) see 11970

1шт.

74

11974

O-RING

SPACER - final drive R.H. (72" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial number 3018001) when stock is exhausted, order 1 - D29794, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

74

D29794

X

SPACER - final drive R.H. (72" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors serial number 3018001 and after) see 11974

1шт.

75

NLS

NO LONGER SERVICED

SPACER - final drive L.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equip.on tractors up to ser. no. 3017316) when stock is exhausted, for Drawbar Models order 1-D29729, 4-14-1228, 4-92-12, 4-25-1112

1шт.

75

D27639

SPACER - final drive L.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equip. on tractors ser. no. 3017316 up to ser. no. 3018001)

1шт.

75a

D29729

SPACER - final drive L.H. (Standard 48" gauge tractor) has "o" ring groove around inside of faced surface on transmission side (Original equipment on tractor serial number 3018001 and after) See 11967

1шт.

75

32659

ROLLER

SPACER - final drive L.H (36" gauge tractor) has plain faced surface on transmission side

1шт.

75

11978

PULLER

SPACER - final drive L.H. (42" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial number 3018001) when stock is exhausted, order 1 - D29729, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112)

1шт.

75

D29787

SPACER - final drive L.H. (42" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors serial number 3018001 and after) See 11978

1шт.

75

11971

O-RING

SPACER - final drive L.H. (60" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial number 3018001) when stock is exhausted, order 1 - D29793, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

75

D29793

SPACER

- final drive L.H. (60" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors serial #3018001 and after)

1шт.

75

11975

FITTING

SPACER - final drive L.H. (72" gauge tractor) has plain faced surface on transmission side (Original equipment on tractorsup to serial number 3018001) when stock is exhausted, order 1 - D29795, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

75

D29795

X

SPACER - final drive L.H. (72" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors serial number 3018001 and after) See 11975

1шт.

76

46505

STUD

STD - final drive spacer to transmission (9/16" x 1")

12шт.

77

131-675

LOCK NUT,9/16"-18, GB

NUT - lock, (9/16" - 18 NF)

12шт.

78

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(Used up to tractor S/N 3018001) see 14-1228 Hex, 5/8"-18 x 1 3/4", G5

8шт.

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4" (Used on tractor serial #3018001 and after) see 14-1028

8шт.

79

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

80

25-1110

NUT,5/8"-18, G5

- hex (5/8" - 18 NF)

8шт.

25-1112

NUT,3/4"-16, G5

- hex (3/4" - 16 NF)

8шт.

81

O8849AB

X

SEAL - "o" ring final drive spacer outer flange

2шт.
