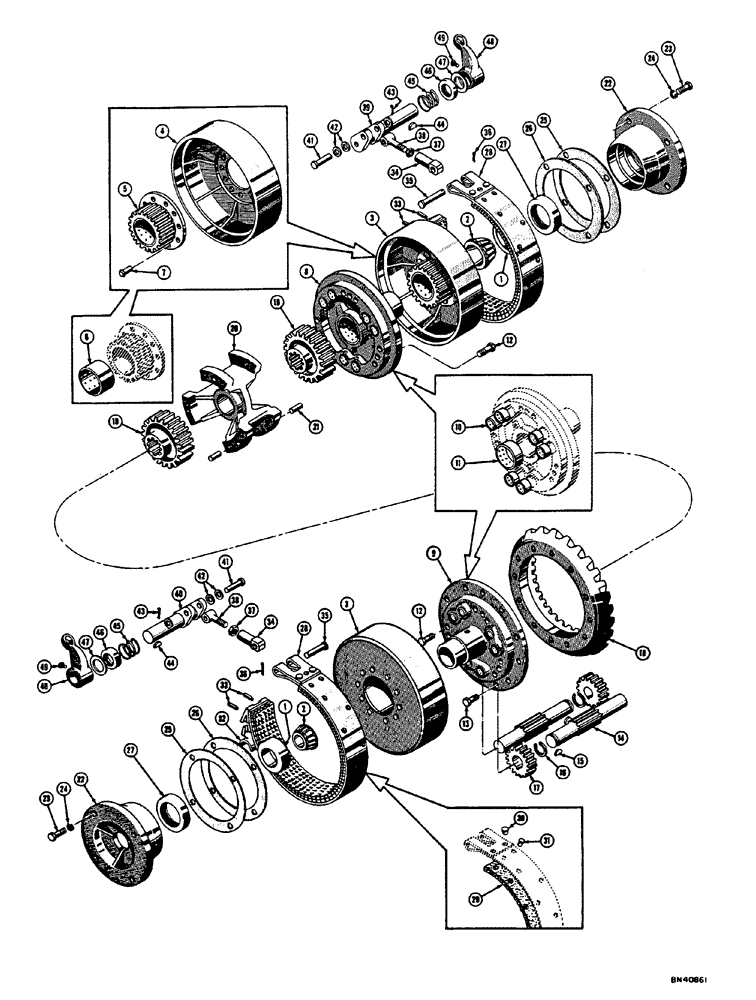

Запчасти Case 310E (045) - DIFFERENTIAL (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
D23400
X
TRANSMISSION AND DIFFERENTIAL - complete (Used on tractor serial #3018001) when stock is exhausted, order D29500, Includes: Ref. 1 - 49
1шт.
Also includes Refs. 1 - 65 on Figs. 46
1шт.
D29500
X
TRANSMISSION AND DIFFERENTIAL - complete (Used on tractor serial #3018001 and after) see D23400, Includes: Ref. 1 - 49
1шт.
Also includes Refs. 1 - 65 on Figs. 46
1шт.
D20533
DIFFERENTIAL AND DRUM ASS'Y
1шт.
1
VT2100
X
CUP - bearing
2шт.
2
40465
ROLLER BEARING,1.75" ID x 1"
CONE
2шт.
3
D20425
PINION
DRUM GEAR AND BUSHING - brake, Includes: Ref. 3 - 7
2шт.
4
NLS
NO LONGER SERVICED
DRUM - brake
1шт.
5
D20426
GEAR
AND BUSHING - brake drum, Includes: Ref. 6
1шт.
6
11288
BEARING
BUSHING - gear brake drum
1шт.
7
14934
RIVET
- brake drum
10шт.
8
NLS
NO LONGER SERVICED
HOUSING - differential R.H. Includes Ref. 10 and 11
1шт.
9
11410
HOUSING - differential L.H., Includes: Ref. 10 and 11
1шт.
10
CASCAS11414
BUSHING - planet pinion
6шт.
11
11415
BEARING
BUSHING - axle shaft gear
1шт.
12
11424
SCREW
- differential housings to center member (7/16" - 14 NC x 1-1/2")
12шт.
R10831
ELECTRICAL WIRE
LOCK WIRE - center member screw (Not shown)
6шт.
13
NLS
NO LONGER SERVICED
SCREW - ring gear (3/8" - 24 HP x 15/16")
12шт.
14
D20422
SHAFT
PINION - planet
6шт.
15
126-16
WOODRUFF KEY,#9, 3/16" x 3/4"
6шт.
16
11455
RING, SNAP
RING snap - planet gear
6шт.
17
D20421
PLANETARY GEAR
GEAR - planet
6шт.
18
11417
BEARING
- ring
1шт.
19
D20423
PINION
GEAR - axle shaft
2шт.
20
NLS
NO LONGER SERVICED
HOUSING - differential center member
1шт.
21
CASCAS11424
PIN, differential housings to center member
6шт.
R25584
GEAR WHEEL
COUNTERSHAFT AND BEVEL, Not shown (See Ref. 23 Fig. 46)
1шт.
22
11425
CARRIER
- bearing, differential
2шт.
23
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
8шт.
24
92-8
LOCK WASHER,1/2"
med. sec. 1/2"
8шт.
25
CASCAS11427
SHM - bearing carrier (.005" thick)
1шт.
26
11426
SHIM
- bearing carrier (.010" thick)
1шт.
27
11430
OIL SEAL
SEAL - differential
2шт.
D26059
KIT - brake band D23400 transmission (When stock is exhausted order D28970), Includes: Ref. 28 - 31
1шт.
28
NSS
NOT SOLD SEPARAT
BAND ANCHOR AND LINING ASS Y - brake, Includes: Ref. 29 - 31
2шт.
D26057
KIT - brake linnmg D23400 transmission (When stock is exhausted order D28974)
1шт.
29
NSS
NOT SOLD SEPARAT
LINING - brake band
2шт.
30
D23567
RIVET - brake band
2шт.
31
D26492
RIVET
- brake band lining
38шт.
D28970
KIT
- brake band D29500 transmission (See D26059), Includes: Ref. 28 - 31
1шт.
28
NSS
NOT SOLD SEPARAT
BAND ANCHOR AND LINING ASS'Y - brake, Includes: Ref. 29 - 31
2шт.
D28974
BAND
KIT - brake lining D29500 transmission (See D26057)
1шт.
29
NSS
NOT SOLD SEPARAT
LINING - brake band
2шт.
30
D23567
RIVET - brake band
2шт.
31
D26492
RIVET
- brake band lining
38шт.
32
D23012
X
STRUT - brake D23400 transmission (When stock is exhausted order D28973)
2шт.
32
D28973
SPACER
STRUT - brake D29500 transmission (See D23012)
2шт.
33
138-39
LOCK PIN,3/32" x 5/8", Slotted
PIN, , D23012 Brake strut, see 138-41 3/32" x 5/8", Slotted
4шт.
33
138-41
LOCK PIN,3/32" x 3/4", Slotted
PIN roll, D28973 brake strut (3/32" x 3/4") see 138-39
4шт.
34
D23382
CLEVIS COUPLING
CLEVIS
2шт.
35
D23384
PIN
- clevis
2шт.
36
132-26
COTTER PIN
PIN - cotter 3/32" x 3/4"
2шт.
37
D23383
NUT
- hex clevis adjusting arm
2шт.
38
D23381
ARM
- clevis adjusting
2шт.
39
D23768
CAM
- brake R.H.
1шт.
40
D23767
CAM
- brake L.H.
1шт.
41
D23384
PIN
- clevis
2шт.
42
D23404
WASHER
- clevis pin
6шт.
43
132-26
COTTER PIN
PIN - cotter 3/32" x 3/4"
2шт.
44
126-19
WOODRUFF KEY,#11, 3/16" x 7/8"
KEY - #11 Woodruff
2шт.
45
11439
SPRING
- brake cam
2шт.
46
O4243AB
X
SEAL - oil brake cam
2шт.
47
11440
WASHER
- brake cam
2шт.
48
D23011
LEVER
- outside brake
2шт.
49
D23016
SCREW
- set brake lever retaining
2шт.
R10831
ELECTRICAL WIRE
LOCK - brake lever set screw (Not shown)
2шт.
Выбрано товаров: 67
