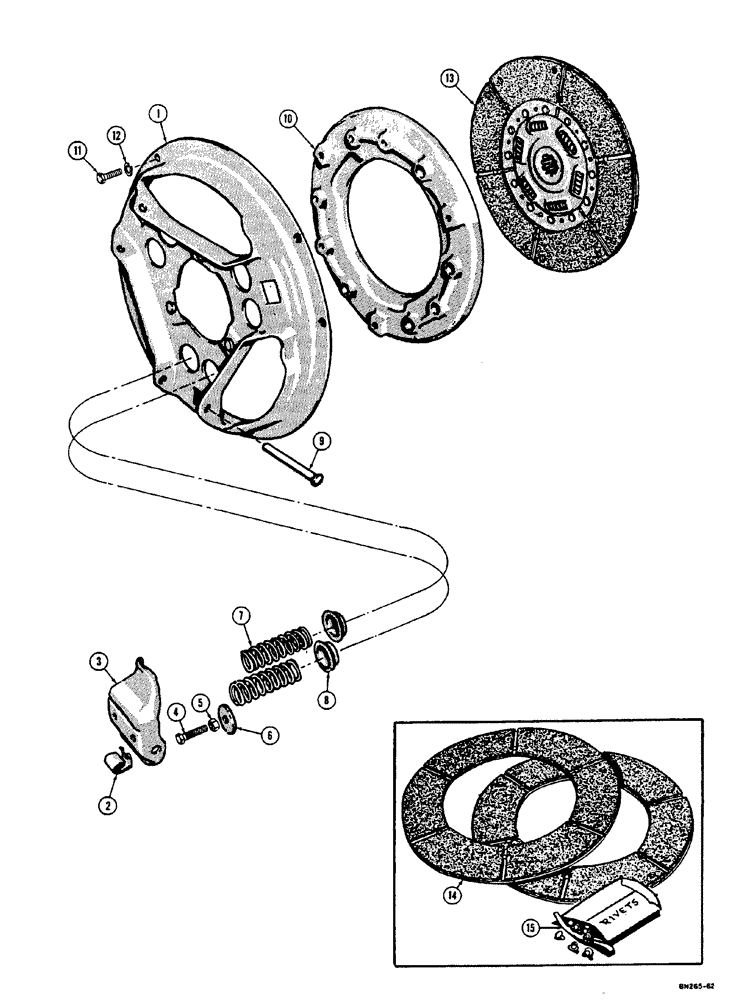

Запчасти Case 310E (044) - CLUTCH (03) - TRANSMISSION

G45777

PLATE - pressure, complete (11" clutch) Includes Ref. 1 - 10 (Original equipment on Gas engines up to engine serial #2000168; Original equipment on Diesel engines up to engine serial #2000728 see G45790

1шт.

G45790

CLUTCH

PLATE - pressure complete (10" clutch) Original equipment on Gas engines serial #2000168 and after, Includes: Ref. 1 - 10

1шт.

1

G47016

HUB - pressure (11" clutch)

1шт.

G47178

X

HUB - pressure (10" clutch)

1шт.

2

G46061

CLIP

- lever return

3шт.

3

G47010

LEVER

- clutch (11" clutch)

3шт.

G47028

LEVER

- clutch (10" clutch)

3шт.

4

G49049

X

SCREW - adjusting

3шт.

5

G49005

NUT - hex jam adjusting screw

3шт.

6

G49048

WASHER

- adjusting screw

3шт.

7

G47013

SPRING

- lever (11" clutch) color code - white

6шт.

G47027

SPRING

- lever (10" clutch) color code - light green

6шт.

8

G47012

CUP - spring (11" clutch only)

6шт.

9

G47011

PIN

- pivot (11" clutch)

3шт.

G47029

PIN

- pivot (10" clutch)

3шт.

10

G4506

PLATE

- pressure (11" clutch)

1шт.

G4508

X

PLATE - pressure (10" clutch)

1шт.

11

G1727

BOLT - pressure plate to flywheel (5/16" x 1") 11" clutch

6шт.

G49026

BOLT - pressure plate to flywheel (3/8" - 16 NC x 1-1/4") 10" clutch

6шт.

12

92-5

LOCK WASHER,5/16"

med sect. 11" clutch 5/16"

6шт.

92-6

LOCK WASHER,3/8"

med. sec., 10" clutch 3/8"

6шт.

13

G11539

PLATE ASSY.

PLATE - driven with facings (11" clutch) Original equipment on Gas engines up to engine serial #20, Includes: Ref. 14 and 15

1шт.

14

G11825

KIT - clutch facing (11" clutch), Includes: Ref. 15

1шт.

15

G49007

RIVET - clutch facing

18шт.

13

G45782

X

PLATE - driven with facings (11" clutch) Original equipment on Diesel engines up to engine serial #2000728 (For service use G45791) see G11539, Includes: Ref. 14 and 15

9шт.

14

G37029

FACING

KIT - clutch facing (11" clutch), Includes: Ref. 15

1шт.

15

G49007

RIVET - clutch facing

12шт.

13

G45791

PLATE ASSY.

PLATE - driven with facings (10" clutch) Original equipment on Gas engines serial #2000168 and after, Includes: Ref. 14 and 15

1шт.

14

G37099

KIT - clutch facing (10" clutch), Includes: Ref. 15

1шт.

15

G49007

RIVET - clutch facing

24шт.

13

G11079

LARGE PLATE

PLATE - driven with facings (9-1/4" clutch) field installed on some Gas engines up to engine serial #2000168 (See G11539 and G45791), Includes: Ref. 14 and 15

1шт.

14

G45048

CAP

KIT - clutch facing (9-1/4" clutch), Includes: Ref. 15

1шт.

15

G49006

RIVET - clutch facing

24шт.
