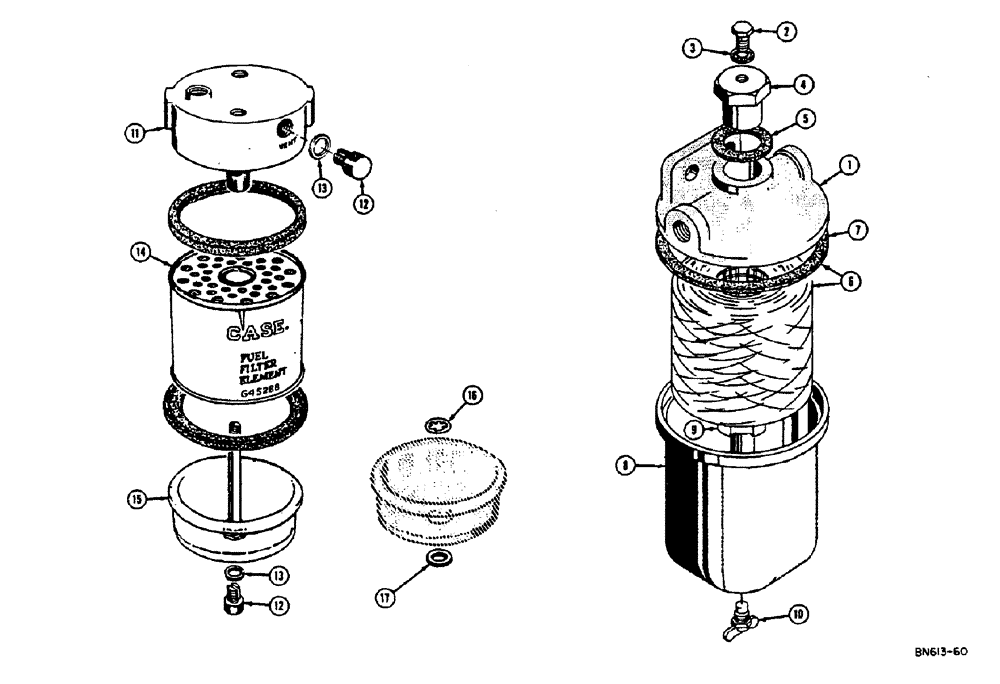

Запчасти Case 310E (029) - FUEL FILTERS - DIESEL (02) - FUEL SYSTEM

D28023

FILTER - fuel, first stage, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

O10342AB

SCREW - air vent

1шт.

3

O10343AB

X

GASKET - screw air vent

1шт.

4

4773AA

NUT - clamp

1шт.

5

O10344AB

X

GASKET - nut, clamp

1шт.

6

D28024

X

ELEMENT - filter, Includes: Ref. 7

1шт.

7

O10345AB

X

GASKET - filter body

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - filter, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - tube

1шт.

10

VT2784

X

DRAIN - valve

1шт.

G45316

FILTER - fuel second stage, Includes: Ref. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

12

G49080

PLUG

SCREW - air vent and drain plug

2шт.

13

G46886

O-RING

GASKET - air vent and drain plug screw

2шт.

14

G45288

X

ELEMENT - filter (Includes rubber gaskets)

1шт.

G46895

GASKET

- rubber

2шт.

15

G45389

BOWL

- sediment (Includes center stud), Includes: Ref. 16 and 17

1шт.

16

G49406

RING, LOCKING

RING - retaining filter, Serial Range: stud-bowl

1шт.

17

G46887

SEAL

GASKET - filter, Serial Range: stud-bowl

1шт.
