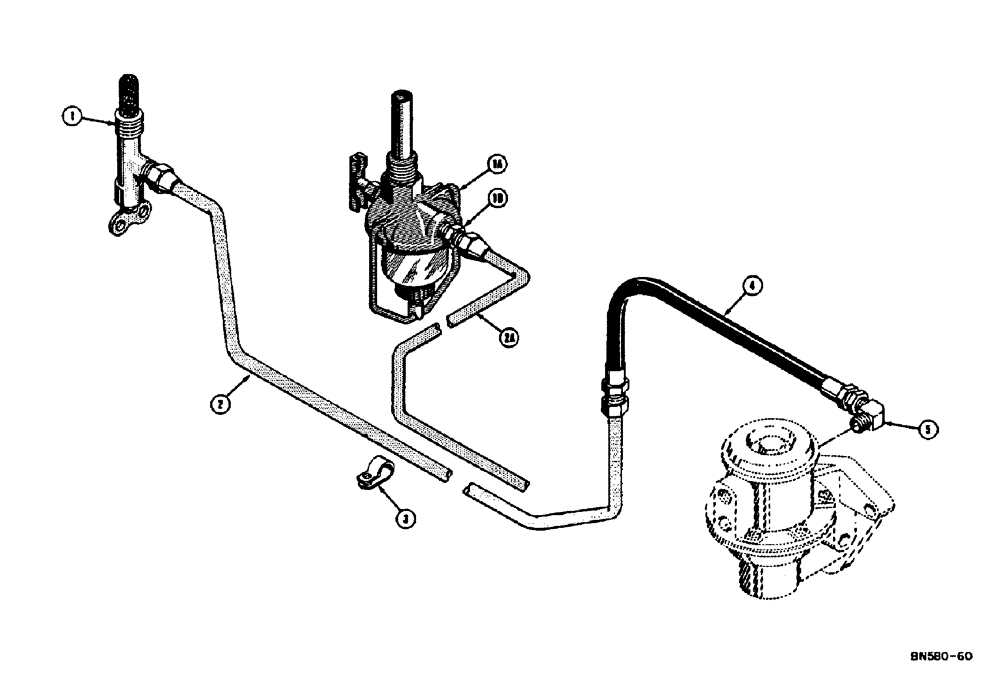

Запчасти Case 310E (014) - FUEL LINES - GAS (02) - FUEL SYSTEM

1

O1972AB1

SPARE PART fuel shut off, see 33487, Serial Range: -3016354

1шт.

1a

33487

STRAINER ELEMENT

fuel (See Fig. 27 for breakdown), (See O1972AB1), Start Serial: 3016354

1шт.

1b

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

male (5/16" JIC x 1/8" NPT), Start Serial: 3016354

1шт.

2

D25469

SPARE PART TUBE - fuel line tank to hose, see D28153, Serial Range: -3016354

1шт.

2a

D28153

SPARE PART TUBE - fuel line tank to hose, see D25469, Start Serial: 3016354

1шт.

3

49832

CLAMP

hose

1шт.

4

D25471

HOSE ASSY.

fuel line tube to fuel pump (1/4" I.D. x 12-1/2")

1шт.

5

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

male, 90° (Fuel pump inlet) (5/16" JIC x 1/8" NPT)

1шт.
