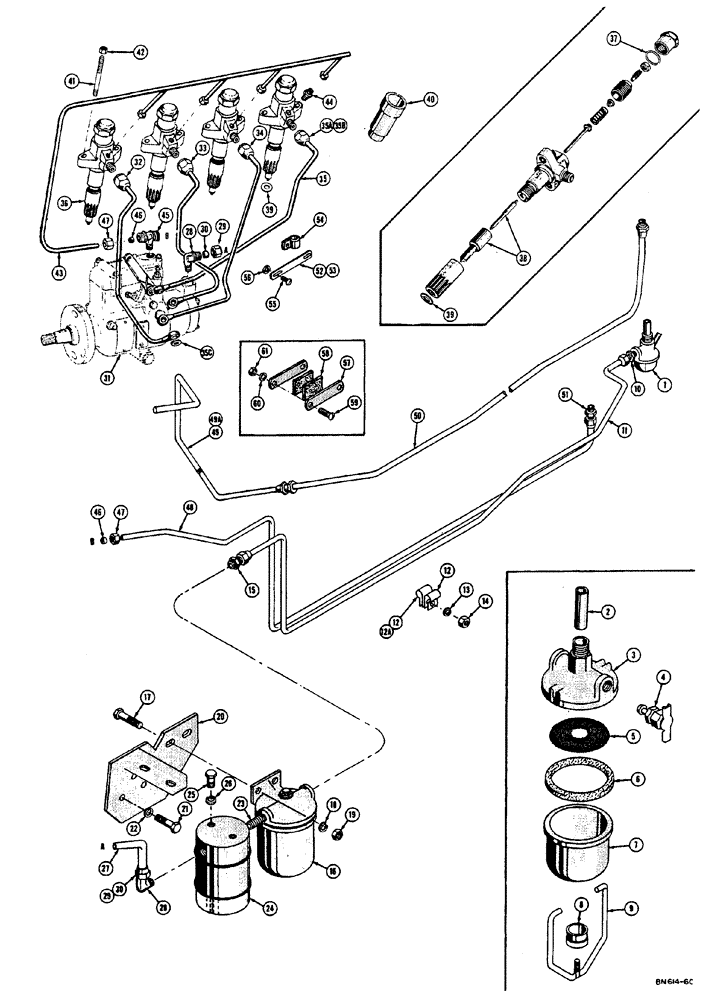

Запчасти Case 310E (027) - DIESEL FUEL INJECTION SYSTEM (01) - ENGINE

1

33487

STRAINER ELEMENT

fuel, Includes: Ref. 2 - 9

1шт.

2

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

3

41932

COVER

- strainer

1шт.

4

A11205

VALVE

- shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN

1шт.

6

A11208

GASKET

- bowl

1шт.

7

A11213

BOWL - metal

1шт.

8

A11210

ADJUSTER

NUT - cup bail

1шт.

9

A11212

BAIL

- bowl

1шт.

10

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight (5/16" JIC x 1/8" NPT)

1шт.

11

D26987

TUBE - fuel line tank to filter (Used up to tractor serial #3017348) see D29112

1шт.

11

D29112

TUBE - fuel line tank to filter (Used on txactor serial #3017348 and after) see D26987

1шт.

12

49832

CLAMP

- fuel line tube (2 used up to tractor serial #3017348, 1 used on tractor serial #3017348 and

2-1шт.

12a

29140

BEARING CONE,31.76mm ID x 19.05mm W

CLAMP - fuel line tube (Used on tractor serial #3017348 and after)

1шт.

13

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

1шт.

14

25-107

NUT,7/16"-14, G5

- hex (7/16" - 14 NC)

1шт.

15

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (5/16" JIC x 1/4" NPT)

1шт.

16

D28023

FILTER - fuel first stage (see figure 38 for breakdown)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

20

D22496

BRACKET - mounting fuel filters

1шт.

21

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

22

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

23

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe (1/4" NPT x 7/8")

1шт.

24

REFERENCE

SPARE PART

FILTER - fuel second stage (see figure 38 for breakdown)

1шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

27

D27993

X

TUBE - fuel line filter to pump (Use 1 - D29329 hose and 1 - 222-1026 elbow)

1шт.

27

D29329

HOSE - fuel line filter to pump (13" long) Bee D27993

1шт.

28

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- male 90° {3/8" JIC x 1/4" NPT) second stage filter outlet and fuel injection pump inlet, Includes: Ref. 29 and 30

2шт.

29

222-114

NUT,5/8"-24

NUT - tube (3/8" JIC)

1шт.

30

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- male, 90° (3/8" JIC x 1/4" NPT) fuel injection pump inlet (Used with D29329 fuel line hos

1шт.

31

G37055

PUMP - fuel injection (see figure 38 for breakdown)

1шт.

32

G37001

TUBE

- injection pump to #1 nozzle (Includes ref #35A #35B, and #35C) used up to engine serial #200

1шт.

A35058

TUBE

- injection pump to #1 nozzle (Includes ref #35A #35B and #35C) used on engine serial #2003318 and after (See G37001)

1шт.

33

G37002

X

TUBE - injection pump to #2 nozzle (Includes ref #35A #35B and #35C) used up to engine serial #2003318 (See A35059)

1шт.

A35059

TUBE

- injection pump to #2 nozzle (Includes ref #35A #35B and #35C) used on engine serial #2003318 and after (See G37002)

1шт.

34

G37003

TUBE

- injection pump to #3 nozzle (Includes ref #35A #35B and #35C) used up to engine serial #2003318 (See A35060)

1шт.

A35060

TUBE

- injection pump to #3 nozzle (Includes ref #35A #35B, and #35C) used on engine serial #200331

1шт.

35

G37004

X

TUBE - injection pump to #4 nozzle (Includes ref #35A #35B and #35C) used up to engine serial #2003318 (See A35061)

1шт.

A35061

TUBE

- Includes: Ref. 35A - 35C

1шт.

35a

O9967AB

X

SLEEVE - coupling, Serial Range: tube-nozzle

1шт.

35b

O9968AB

NUT - coupling, Serial Range: tube-nozzle

1шт.

35c

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw fuel line

2шт.

36

G45215

INJECTOR - fuel (When stock is exhausted order A35084), Includes: Ref. 37 - 39

4шт.

37

G46885

GASKET

- fuel injector cap

1шт.

38

G45339

NOZZLE - fuel injector

1шт.

39

G49068

GASKET

- nozzle fuel injector

1шт.

36

A35084

NOZZLE CAP

INJECTOR - fuel (See G45215)

4шт.

37

G46885

GASKET

- fuel injector cap

1шт.

38

A35085

NOZZLE CAP

NOZZLE - fuel injector

1шт.

39

G49068

GASKET

- nozzle fuel injector

1шт.

40

G11724

LINER

- injector nozzle

4шт.

41

VT4510

X

STUD - injector to head (3/8" x 1-3/4")

8шт.

42

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

8шт.

43

G45385

WASHER

TUBE - leak-off

1шт.

44

222-21

FITTING,7/16"-24 x 1/8" NPTF

4шт.

45

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

- male (5/16" JIC male x 5/16" JIC male x 1/4" NPT male), Includes: Ref. 46 and 47

1шт.

46

222-103

SLEEVE,5/16" Tube

2шт.

47

222-113

TUBE NUT,9/16"-24

NUT - tube (5/16")

2шт.

48

D26985

TUBE - fuel return leak-off tube to tank (Used up to tractor serial #3017348) see D29116 D29114 and D30034

1шт.

49

D29116

TUBE - fuel return leak-off tube to tank (Pront section) used on all tractors serial #3017348 and ater

1шт.

49a

D30034

TUBE

- fuel return leak-off tube to tank (Pront section) used on all tractors with engine serial #2003318 and after (See D29116)

1шт.

50

D29114

TUBE

- fuel return leak-off tube to tank (Rear section) used on all tractors serial #3017348 and after (See D26985)

1шт.

51

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (5/16" JIC x 1/4" NPT)

1шт.

52

G15969

STRAP - support front (G37001 and G37002 tubes) see O9970AB and O9973AB

1шт.

53

G15970

STRAP - support, near (G37003 and G37004 tubes) see O9970AB and O9973AB

1шт.

54

G46395

CLAMP - tube nylon

4шт.

55

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- machine round head (Zinc plated) (#10 - 32 NF x 5/8")

4шт.

56

193-1000

NUT,Keps, w/LW,#10-32

- Keps zinc plated (#10 - 32 NF)

4шт.

58

O9973AB

X

CUSHION - injector tube (Used on engine serial #2003318 and after) see G15969 G15970 and G46395

2шт.

57

O9970AB

X

CLAMP - injector tube (Used on engine serial #2003318 and after) see G15969 G15970 and G46395

2шт.

59

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- machine round head (#10 - 24 NC x 1")

2шт.

60

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

61

129-7

NUT,Hex, #10 - 24

- hex (#10 - 24 NC)

2шт.
