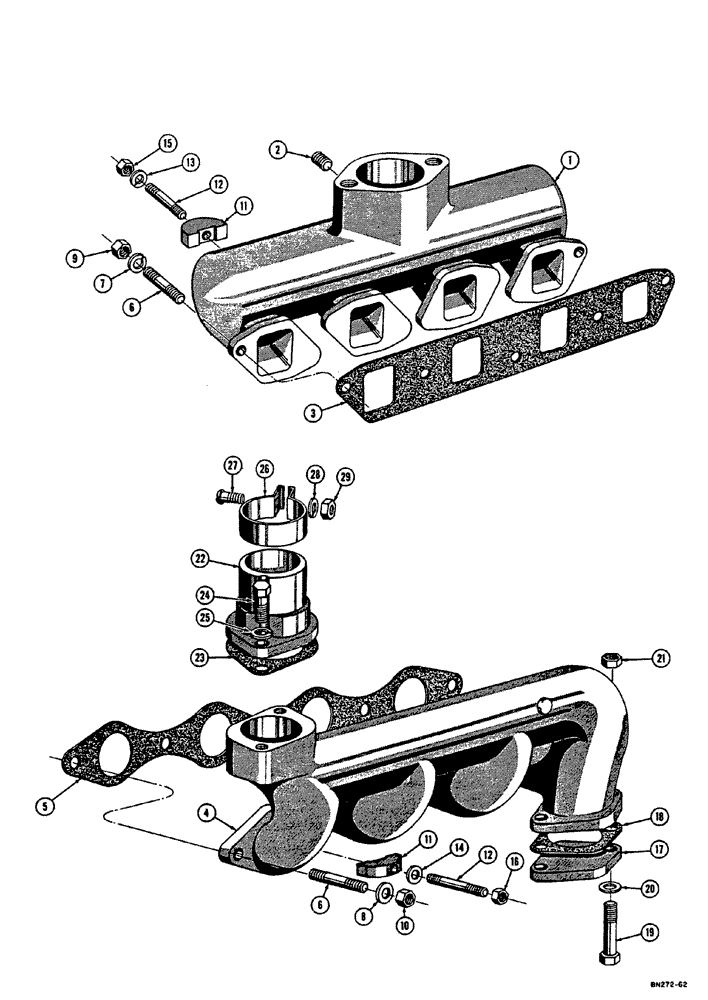

Запчасти Case 310E (026) - MANIFOLD - DIESEL (01) - ENGINE

1

G2123

X

MANIFOLD - intake

1шт.

2

221-841

PLUG

- pipe, 1/4" NPT square socket (Use 221-1010)

1шт.

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

- pipe, 1/4" NPT square head (See 221-841)

1шт.

G45259

PLUG

- heater manifold (Not shown see figure 30 Ref. 31)

4шт.

3

G46871

GASKET

- intake manifold

1шт.

4

G2113

EXHAUST MANIFOLD

MANIFOLD

1шт.

5

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

6

VT4510

X

STUD - intake and exhaust manifolds to head (3/8" x 1-3/4")

4шт.

7

92-6

LOCK WASHER,3/8"

med. sec., intake manifold 3/8"

2шт.

8

195-25

WASHER,3/8"

- plain exhaust manifold (13/32" I.D. x 13/16" O.D. x 5/64" thick)

2шт.

9

25-106

NUT,3/8"-16, G5

- hex intake manifold (3/8" - 16 NC)

2шт.

10

VT3362

X

NUT - brass exhaust manifold (3/8" - 16 NC) used up to engine serial #2002877 (Use 131-903)

2шт.

131-903

NUT,3/8"-16

NUT - seez-pruf exhaust manifold (3/8" - 16 NC) used on engine serial #2002877 and after (See VT33

2шт.

11

G11739

X

CLAMP - manifold (Used up to engine serial #2002985) use A35028 and A35175

1шт.

A35028

CLAMP

- manifold (Used on engine serial #2002985 and after) see G11739

1шт.

12

G11254

X

STUD - manifold clamp (3/8" x 2-7/16") used up to engine serial #2002985 (See A35175 and G11739)

6шт.

A35175

STUD

- manifold clamp (Used on engine serial #2002985 and after) see G11254

6шт.

13

92-6

LOCK WASHER,3/8"

med. sec., intake manifold 3/8"

3шт.

14

195-25

WASHER,3/8"

- plain exhaust manifold (13/32" I.D. x 13/16" O.D. x 5/64" thick)

3шт.

15

25-106

NUT,3/8"-16, G5

- hex intake manifold (3/8"- 16 NC)

3шт.

16

VT3362

X

NUT - hex brass exhaust manifold (3/8" - 16 NC) used up to engine serial #2002877 (Use 131-903)

3шт.

131-903

NUT,3/8"-16

NUT - seez-pruf exhaust manifold (3/8" - 16 NC) used on engine serial #2002877 and after (See VT33)

3шт.

17

G2044

LARGE PLATE

PLATE - cover, exhaust opening

1шт.

18

G46853

MANIFOLD GASKET

- cover exhaust opening

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8"- 16 NC x 1-1/2"

2шт.

20

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick)

2шт.

21

VT3362

X

NUT - hex brass (3/8" - 16 NC) used up to engine serial #2002877 (Use 131-903)

2шт.

131-903

NUT,3/8"-16

NUT - seez-pruf (3/8" - 16 NC) used on engine serial #2002877 and after (See VT3362)

2шт.

22

D22864

OUTLET

- exhaust standard exhaust pipe or muffler (See D29308)

1шт.

D29308

OUTLET

- exhaust spark arresting muffler (See D22864)

1шт.

23

G46853

MANIFOLD GASKET

- exhaust, Serial Range: outlet-manifold

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

2шт.

26

G45767

X

CLAMP - muffler, Includes: Ref. 27 - 29

1шт.

27

11-520

X

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

28

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

1шт.
