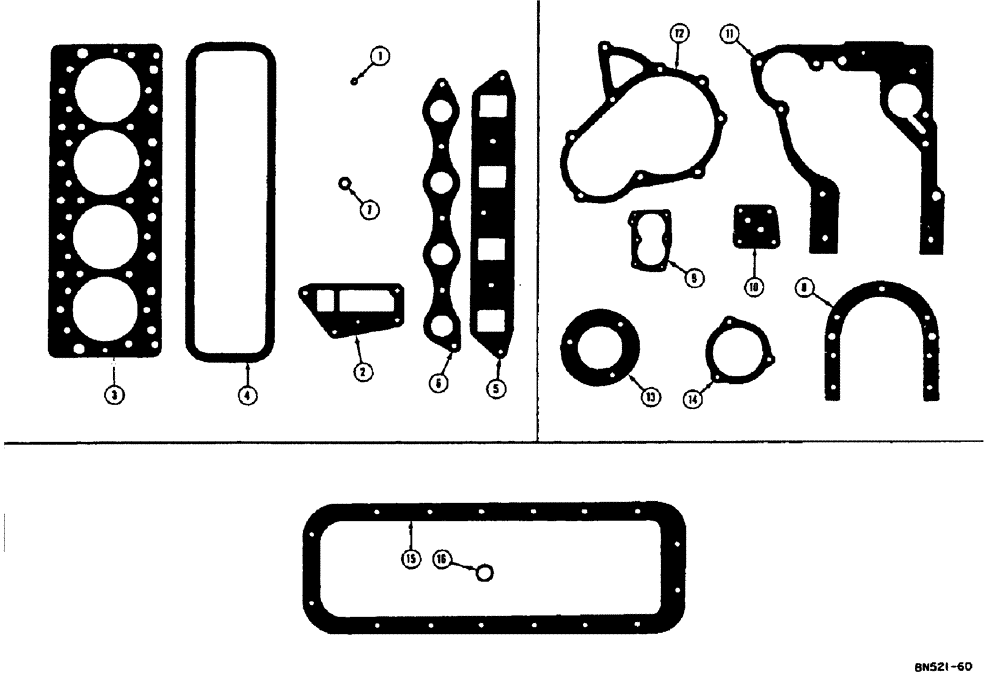

Запчасти Case 310E (025) - SERVICE GASKET SETS - DIESEL (01) - ENGINE

G11949

X

SET - gasket, valve grind, Includes: Ref. 1 - 7

1шт.

1

G46851

SEAL

GASKET - valve stem

8шт.

2

G46858

GASKET

- water inlet head to timing gear cover

1шт.

3

G46865

X

GASKET - head (Use A35196)

1шт.

G46906

X

GASKET - head (Use A35196)

1шт.

A35196

X

GASKET - head (See G46865 and G46906)

1шт.

4

G46866

GASKET

- valve cover

1шт.

5

G46871

GASKET

- intake manifold

1шт.

6

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

7

G49068

GASKET

- injection nozzle

4шт.

646867

HOSE,0.38" ID x 108.00", SAE 100R6

GROMMET - cylinder head cover stud (Not shown)

2шт.

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector fuel line (Mot shown)

8шт.

222-101

SLEEVE,3/16" Tube

SKEEVE - fuel line (3/16" O.D. tube) not shown

4шт.

222-103

SLEEVE,5/16" Tube

Fuel line, Not shown 5/16" Tube

2шт.

G11950

GASKET

SET - gasket cylinder block, Includes: Ref. 8 - 14

1шт.

8

G46802

GASKET

- crankshaft rear oil seal retainer

1шт.

9

G46852

GASKET

- oil pump body

1шт.

10

G46854

GASKET

- oil filter

1шт.

11

G46857

GASKET

- timing gear cover

1шт.

12

G46859

GASKET

- pump drive cover to timing gear cover

1шт.

13

G46875

GASKET

- water pump

1шт.

14

VT3691

X

GASKET - generator bracket support

1шт.

G11951

X

SET - gasket oil pan, Includes: Ref. 15 and 16

1шт.

15

G46864

GASKET - oil pan

1шт.

16

VT4520

X

GASKET - drain plug

1шт.
