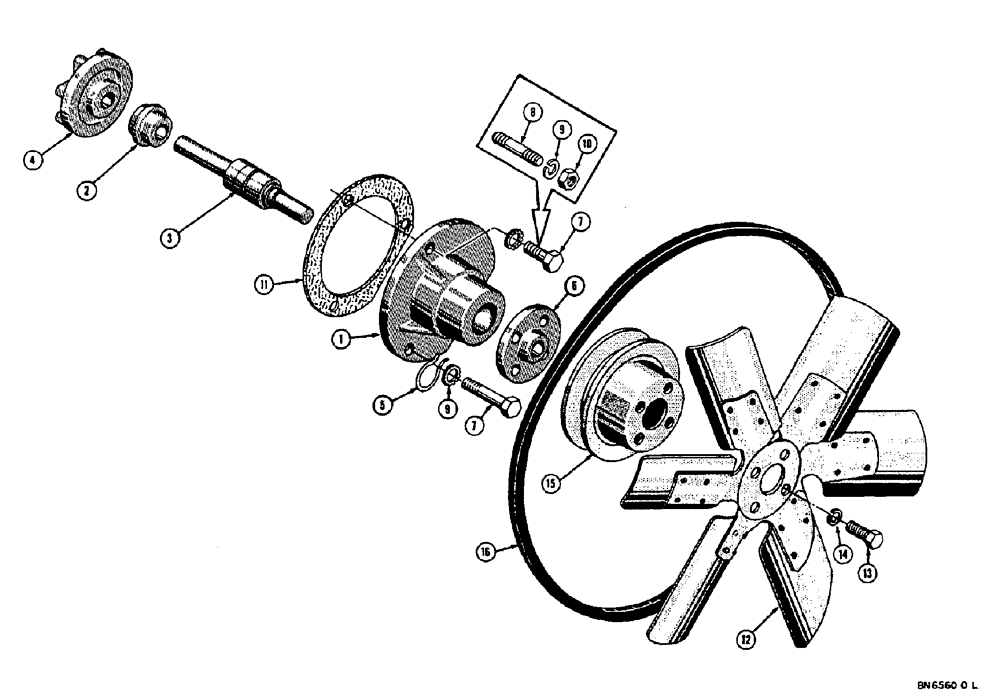

Запчасти Case 310E (024) - WATER PUMP, FAN, FAN BELT, AND PULLEY - DIESEL (01) - ENGINE

G11939

PUMP

PUMP - water, Includes: Ref. 1 - 6

1шт.

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Pump, Water

1шт.

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

G11854

SPARE PART BODY - water pump (Use G11939), Includes: Ref. 2

1шт.

2

O9799AB

SPARE PART SEAL - shaft (Use G11939)

1шт.

3

VTA904

X

SHAFT - pump drive (Use G11939)

1шт.

4

G2094

SPARE PART IMPELLER - water pump (Use G11939)

1шт.

5

VT4594

X

RING - retaining

1шт.

6

VT4533

SPARE PART HUB - fan (Use G11939)

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, (Used up to engine S/N 2002827) use VT4512 and 25-106 Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

8

VT4512

X

STUD - water pump to timing gear cover (3/8" - 16 NC x 1-1/4") used on engine serial #2002827 and after (See 13-612)

3шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sec. 3/8"

3шт.

10

25-106

NUT,3/8"-16, G5

NUT - hex (3/8" - 16 NC) used on engine serial #2002827 and after (See 13-612)

3шт.

11

G46875

GASKET

GASKET - water pump to timing gear cover

1шт.

12

D26699

FAN

FAN - suction

1шт.

D26700

SPARE PART FAN - pusher (Loader Models only) not shown

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

4шт.

15

G11339

PULLEY

PULLEY - water pump and fan drive

1шт.

16

G46238

BELT,0.55" W x 17.78" L

Fan, Water Pump, and Generator Drive

1шт.
